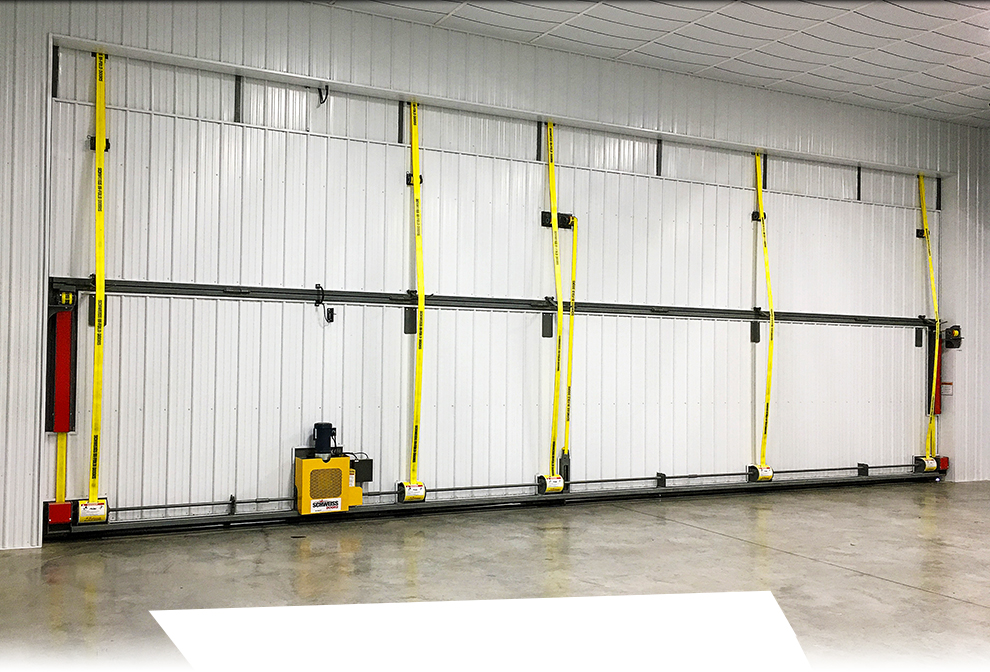

Upgrade Equipment

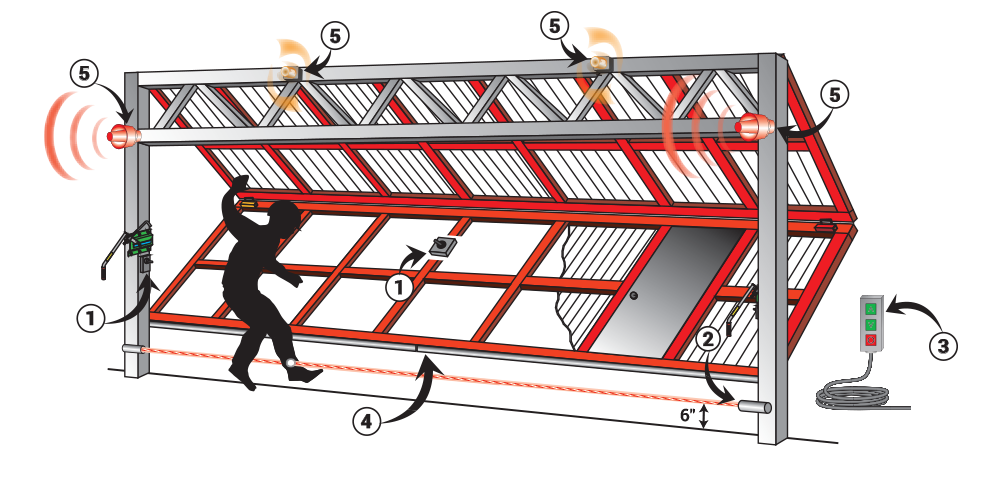

WARNING:
Schweiss strongly recommends that accessory upgrade equipment
be used on every door. Without the proper upgrade equipment, the door could
cause serious injury, death, or property damage.

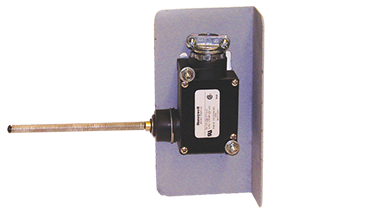

1. TOP OVERRIDE JIGGLE SWITCHES
Designed for special controlled door height settings. Upper override switch that disconnects power to door if upper limit fails or if limits are overridden. This safety feature is designed to prevent the door from traveling beyond its recommended clear opening height. If the door passes its full clear opening height, it will activate the override and stop the door automatically.
Top Override Jiggle Switch

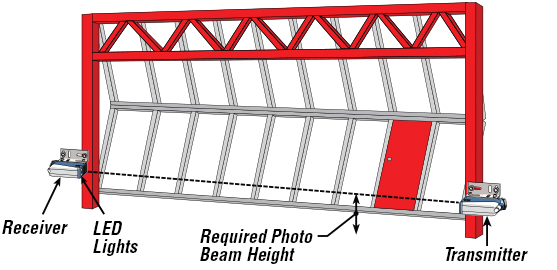

2. ELECTRIC PHOTO EYE SENSORS
Stops door operation when an obstruction breaks the light beam. Electric photo eye sensors are mounted near floor level used to prevent or stop the door from closing when an obstruction breaks the detection beam. ALL doors installed on residential garages must be equipped with an electric photo eye!
3. THREE BUTTON, CONSTANT HOLD CONTROL STATION
Three-button constant contact dead man switch prevents operator from leaving control panel while door is in motion, either up or down. With this type of switch the door will not move in either direction unless the operator is pressing either the "Up" or "Down" button. When the operator takes this hand off the up /down button, it will stop the opening or closing of the door in any midpoint position. The motor will automatically stop when the door reaches either the full open or closed position.
3-Button Constant Hold Switch

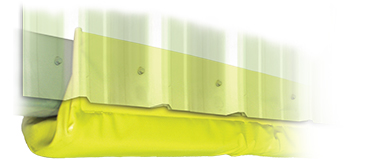

4. DOOR BASE SAFETY EDGE
Stops and reverses door travel upon contact. Electrical sensing switch along bottom of door to stop door if it comes in contact with an obstruction, door will then reverse to a fully open position. Safety edge must be capable of protecting the entire width of the door opening.
Safety Edge

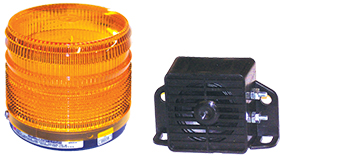

5. WARNING LIGHTS AND HORNS
Alerts persons in the area during door operation. This feature is designed to alert persons in the area of the door that the door is operating. When the door operator activates the door, a warning light rotates and a horn sounds. This feature is especially recommended for doors that will be equipped with radio controls or other remote features.
Warning Lights & Horn

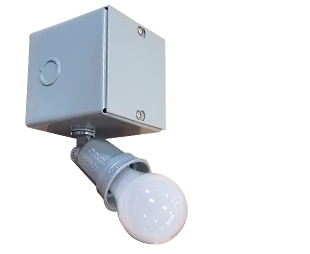

6. ENTRANCE LIGHTS
Lights up the doorway when entering the building.
Lights up the doorway entrance when activating the door with a remote control system. (Very Nice Feature) Lights can be positioned anywhere....
Example: On the inside of the doorframe, the light will provide extra lighting directly under the door when door is in the wide open position. Custom feature that gives you more lighting.
Entrance Lights
7. REMOTE CONTROL: OPERATED DOORS
Lets you open/stop/close your hydraulic door from any vehicle. Two hand held remote controls and antennas are included with each door. Customers really enjoy this feature!
Warning: All doors equipped with remote operators should have a warning system to alert persons in the immediate area that the door is moving.
Remote

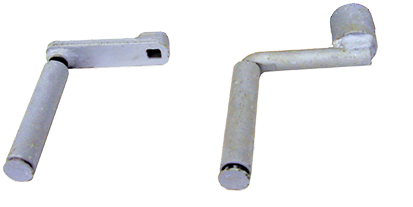

8. EMERGENCY BACK-UP HAND CRANK
Door is capable of being manually operated in the event of a power outage. Included is a disconnect device to prevent motor from operating when manually operating door.
Emergency Back-Up Hand Crank

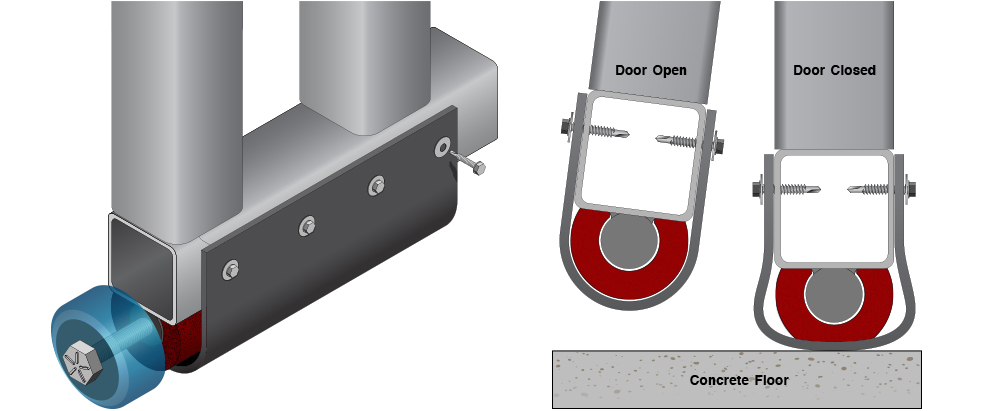

9. BOTTOM WEATHER SEAL KIT
Schweiss Doors is introducing a unique weather seal kit that can be retrofitted to all styles of hydraulic and bifold doors. The new bottom seal has a special foam cushion that provides an extra weathertight seal on the bottom of any style door. The special designed foam cushion kit allows the door bottom rubber to conform to dips and bumps in the surface giving you a uniform seal to insure a weathertight seal at the bottom of each door.

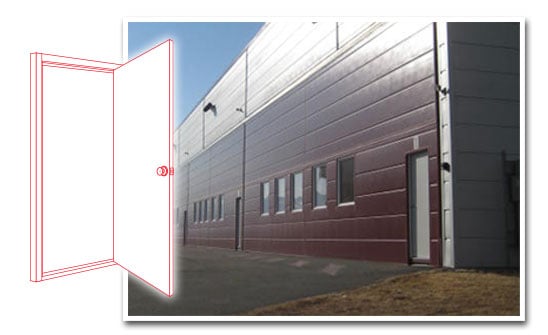

Walk Doors in the Doorframe
The walk door feature
saves indoor building space
We build the walk door framework into the Bifold or Hydraulic Door. We use factory aluminum or steel walk doors of your choice. All walk doors have a keyed cylinder lock. Also available is keying multiple doors with a master key. We offer a 16" x 16" window within the walk door. Also we can paint the walk door to match the building.
• Walk door - quantity / placement - your choice
• Walk door - insulated / with windows
• Walk door - keyed lockset / master keyed
• Walk door - frames only
• Walk door - safety hinges

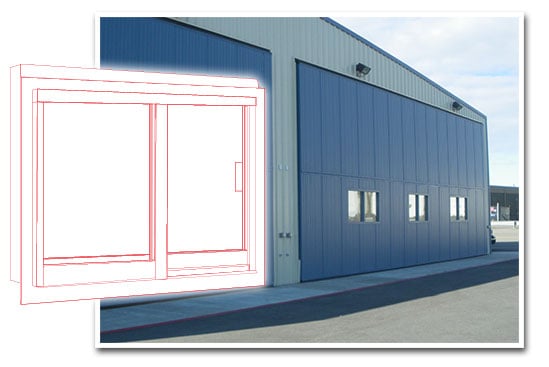

Windows in the Doorframe
We offer a single or double insulated window, fixed or sliding
Commercial grade.
Sizes are 36" x 48".
All windows have screens and slide open.
Many other sizes available.
Windows may be placed at any height or location.

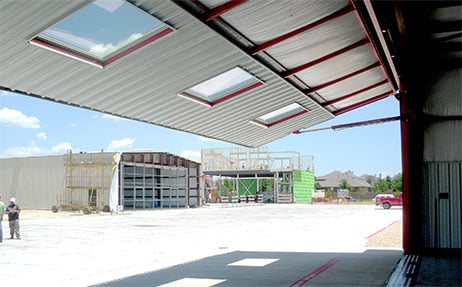

Allows plenty of natural light into your building.
• Specialty windows are catching on fast. They really sharpen the appearance of your door and building project. They can be made to mirror the rest of the building structure and add a neat appearance.
• Windows - Any size, quantity and placement your choice.
• Windows - Insulated / screens / sliders.
• Windows - Frames only.
Metal Siding For The Hydraulic Exterior (Not Included)
• When installing a hydraulic door on an existing building, try to match the door sheeting with the building sheeting or substitute other materials.
• We can provide a self-drilling tec screw with a neoprene washer to apply any type of sheeting to your doorframe. We offer special color screws to match your sheeting.
• External door sheeting & trims.
• Wainscoat & trims.
• Many colors to pick from... your choice.
• Inside liner sheeting doors may be finished off with sheeting.
• Alternate exterior siding / skins.
• Decorative door covering:
Many choices to pick from by contractor or customer.
• Stucco |
• Decorative Siding |
• Translucent Panels |
• Vinyl Siding |
• Cedar Siding |
• Decorative Wood |
• Decorative Windows |
• Rock Face Material |
• Total Glass |
• Home Siding |

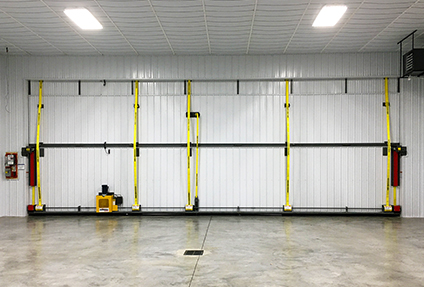

Inside Liner Panel (Optional)
To give your door a finished look on the inside, we offer an inside liner kit for doing only the inside bottom half or the entire inside frame.
Fully Lined Bifold Door
Partially Lined Hydraulic Door
Weather Seals
Door Bottom Rubber Seals
We furnish a 12" rubber boot that seals the bottom of your bifold or hydraulic door. The heavy 2-ply, cloth-inserted rubber seal provides excellent weatherproofing. Note: Existing bituminous surface / concrete varies and seals should be placed accordingly.
Door Top Rubber Seal
This same continuous rubber seal can be used at the top of door hinges to prevent flow of moisture into the door or building.
Side Weather Seal Kit - Gives Your Door a Tight Seal
Bifold and Hydraulic Doors are made very weathertight. The sides of each door are sealed off with a special weather stripping. The entire door perimeter can be made weathertight.
Cold Weather Package (Easy to Insulate)
Styles of Insulation Available
• We design our door to accept the insulation of your choice. |
• Spray-on urethane. |
• 3" or 4" blanket with white vinyl backing. |
• White insulation board |
• Solid - R - board 1-1/2" thick or more. |

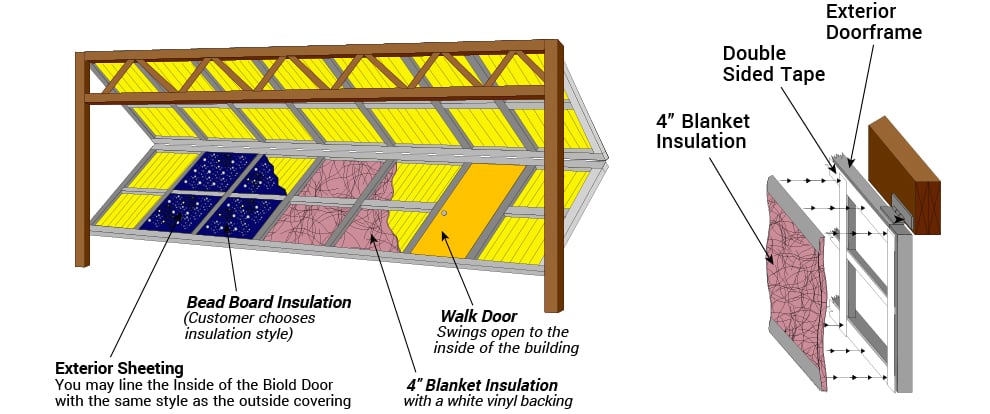

Blanket Insulation - Style 1
Blanket Insulation
• You can place the insulation between the doorframe and the outside sheeting.
• You can place it between the doorframe members.
• The thicker the doorframes, the more insulation you can apply for a better R factor.

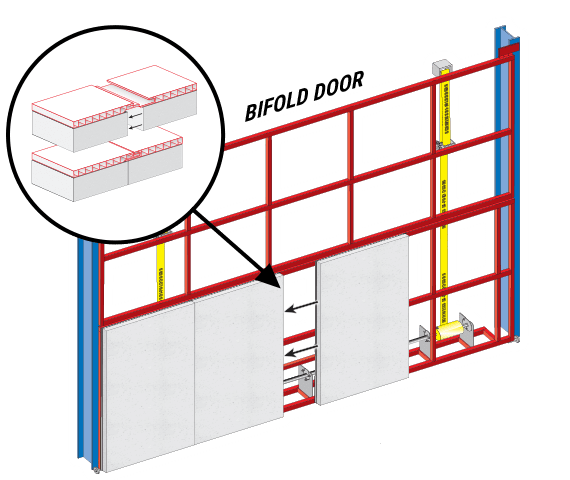

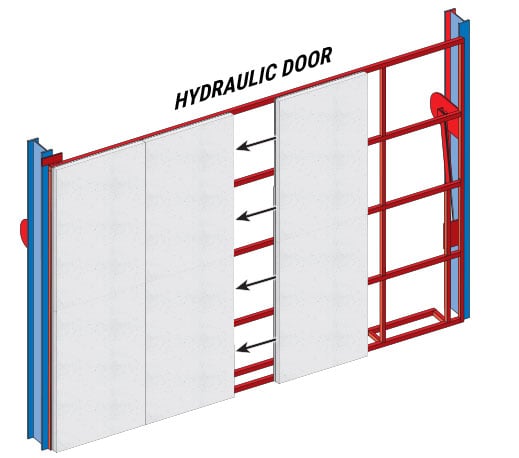

Insulation Board - Style 2
DURABLE WHITE PLASTIC CORE IS BACKED WITH INSULATION:
• Keeps heat out during the summer, and inside during the winter.
• 100% moisture resistant. If your door does not have a proper vapor barrier, when moisture penetrates the door it will then get trapped in the insulation and become wet and rotten. The wet insulation leads to mold and mildew.
• CIF-ULCS 102.0 - Class A Fire-Rating. The interior liner is a protective covering for the insulation.
• Will not corrode and guards against water exposure and condensation.
• Maintenance free, smooth clean white surface. Bright appearance.
RETROFIT YOUR EXISTING
DOOR WITH THE "NEW INSULATION"
FROM SCHWEISS
slides together
Board Insulation
