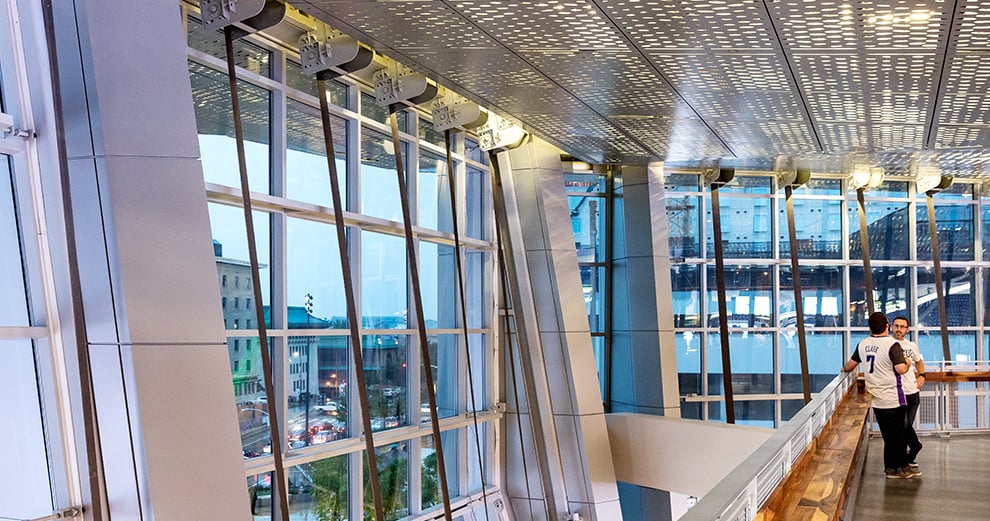

Sacramento Kings Stadium Top Drive Strap Bifold Doors
Top Drive Bifold Doors
Strap Lift Top Drive

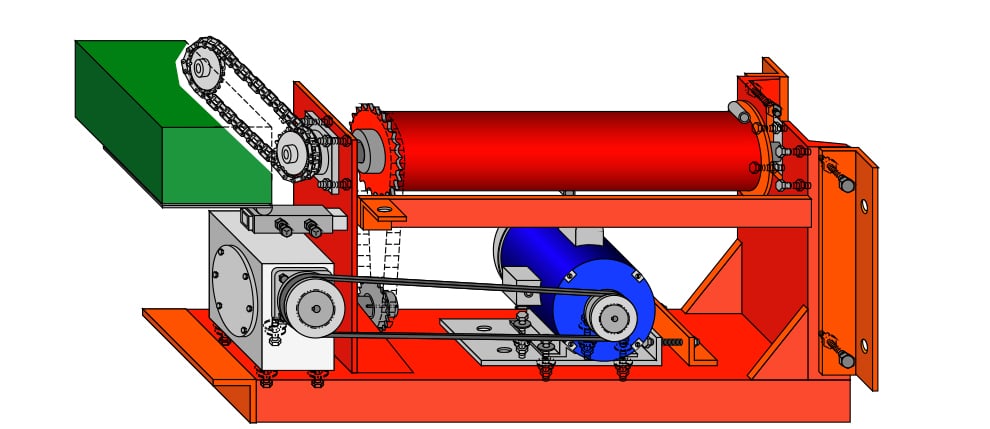

Top Drive Power Units
The power unit is mounted above the doorframe.
The top drive power unit is fully assembled on its own frame.
The top drive requires less installation time - a real time saver.
The top drive does not take up any extra room, it's mounted above the doorframe.
The top drive is easy to get to for the service end.
The top drive power unit is built heavy with some very nice features.
Customers are demanding the popular "New" Lift Straps
on 90% of the doors manufactured by Schweiss
| A. Tube |
| B. Tube |
| C. Tube |
| D. Tube |

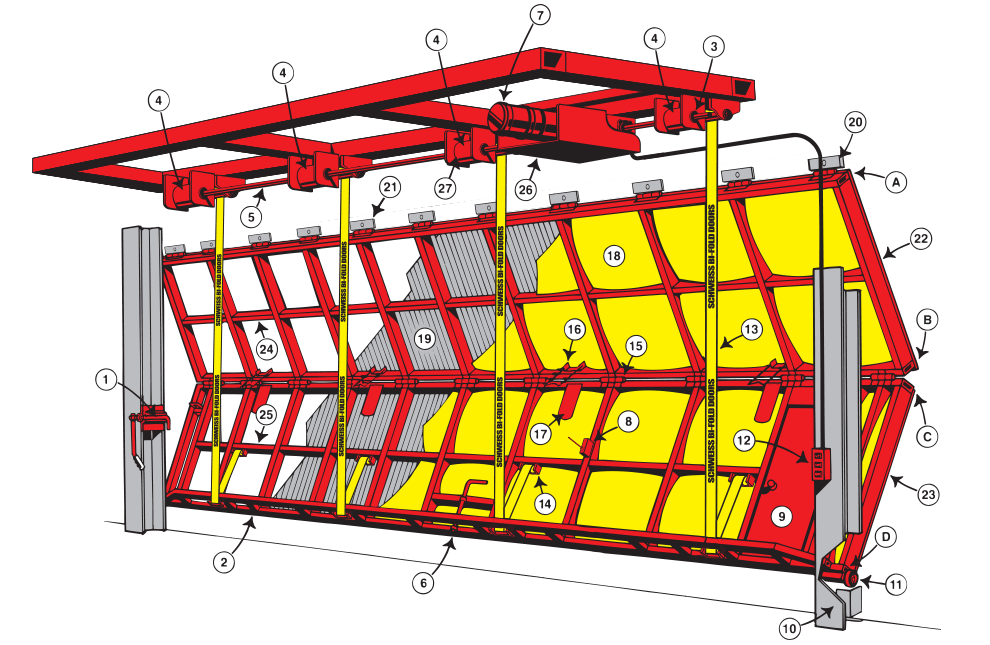

Call Outs:
| 1. Manual Side Latch | 15. Center Hinges |
| 2. Bottom Truss | 16. Kick Outs |
| 3. Bearing Plates | 17. Kick Out Plates |
| 4. Strap Drums | 18. Insulation (Blanket Type) |
| 5. Drive Shaft | 19. Exterior Sheeting |
| 6. Center Wind Pin | 20. Single Hinge |
| 7. Top Drive Electric Power Unit | 21. Top Hinges |
| 8. Safety Limit Switch | 22. Top Height Half |
| 9. Walk Door | 23. Bottom Height Half |
| 10. Building Side Columns | 24. Top Center Cross Tube |
| 11. 3" Bottom Door Roller | 25. Bottom Center Cross Tube |
| 12. Up/Down/Stop Switch | 26. Motor Shield |
| 13. Lift Straps | 27. Safety Shields Included |
| 14. Strap Tightener |
Upgrade Features Are Important
Upgrade Equipment:
| Yes | No | |
| 1 - Top Override Jiggle Switches | ||
| 2 - Side Latch Jiggle Switches | ||
| 3 - Electric Photo Eye Sensors | ||
| 4 - 2 Button Constant Hold | ||
| Control Station Dead Man | ||
| 5 - Door Base Safety Edge | ||
| 6 - Warning Lights and Horn | ||
| 7 - Emergency Back-Up |
Projects USING STRAP Top drives
SCHWEISS - the Leader in Top Drive Doors
Red Bull Headquarters

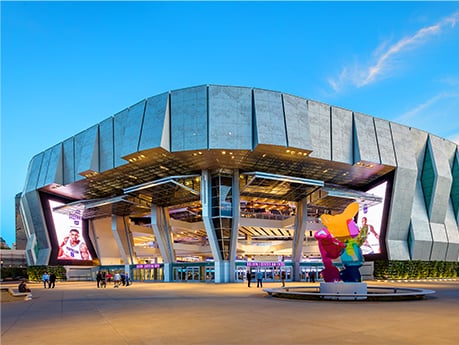

Sacramento Kings Stadium

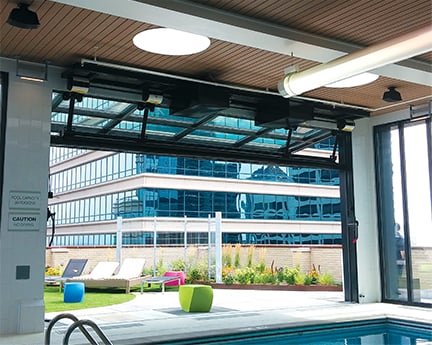

Soo Line City Apartments

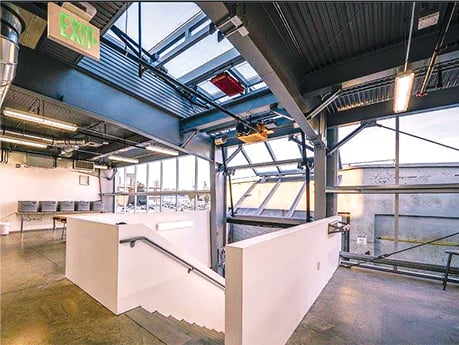

South California Institute of Architecture

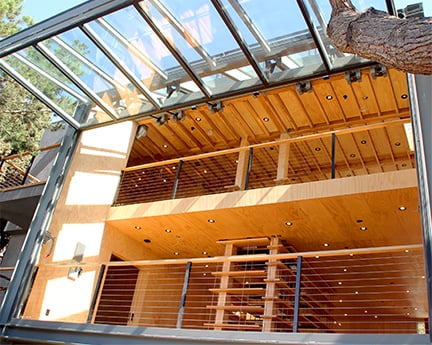

Santa Monica, California Window Wall

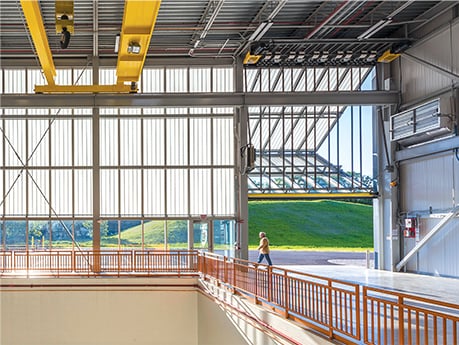

Fermilab National Particle Physics Lab
Top Drive . . . Cable Lift
Top Drive Power Units
The power unit is mounted stationary, up and above your clear opening.
The power unit is located in the center of your clear opening.
The location of the top power unit will not affect your clear opening.
The nice part about a top drive power unit - it's up and out of the way.
The top drive power unit must be installed on the job (good instructions).
The top drive power unit is built heavy-duty with some very nice features.
| A. Tube |
| B. Tube |
| C. Tube |
| D. Tube |

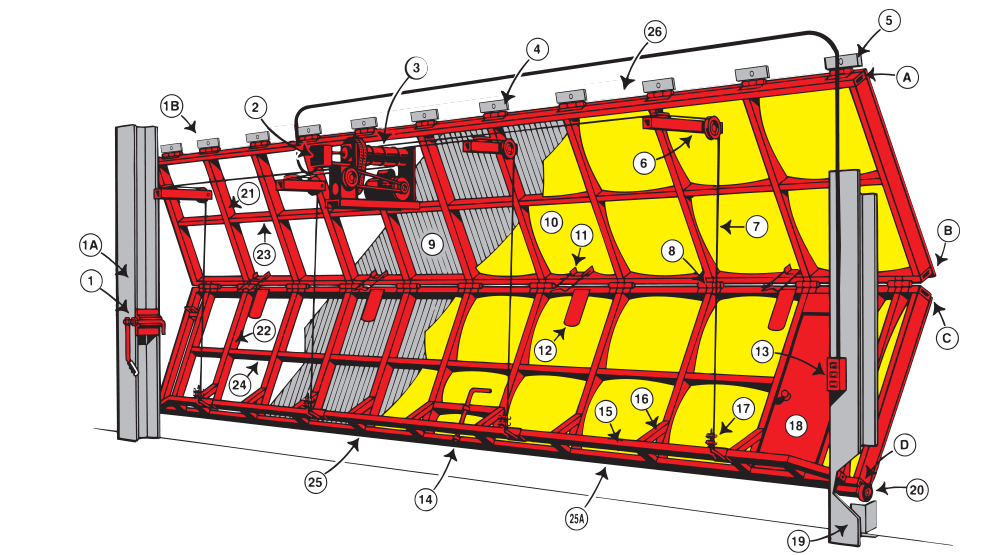

Call Outs:
| 1. Manual Side Latch | 13. Up/Down/Stop Switch |
| 1a. Safety Latch Switch | 14. Center Wind Pin |
| 1b. Top Override Switch | 15. Bottom Truss |
| 2. Safety Limit Switch | 16. Gussets |
| 3. Schweiss Electric Power Unit | 17. Cable Clamps & Slides |
| 4. Top Hinges | 18. Walk Door |
| 5. Single Hinge | 19. Building Side Columns |
| 6. Cable Pulley Angles | 20. 3" Bottom Door Roller |
| 7. Aircraft Cable | 21. Top Height Half |
| 8. Center Hinges | 22. Bottom Height Half |
| 9. Exterior Sheeting | 23. Top Center Cross Tube |
| 10. Insulation | 24. Bottom Center Cross Tube |
| 11. Kick Outs | 25. Bottom Rubber |
| 12. Kick Out Plates | 25a. Bottom Safety Edge |
| 26. Top Rubber (Optional) |
Upgrade Features Are Important
Upgrade Equipment:
| Yes | No | |
| 1 - Top Override Jiggle Switches | ||
| 2 - Side Latch Jiggle Switches | ||
| 3 - Electric Photo Eye Sensors | ||
| 4 - 2 Button Constant Hold | ||
| Control Station Dead Man | ||
| 5 - Door Base Safety Edge | ||
| 6 - Warning Lights and Horn | ||
| 7 - Emergency Back-Up |

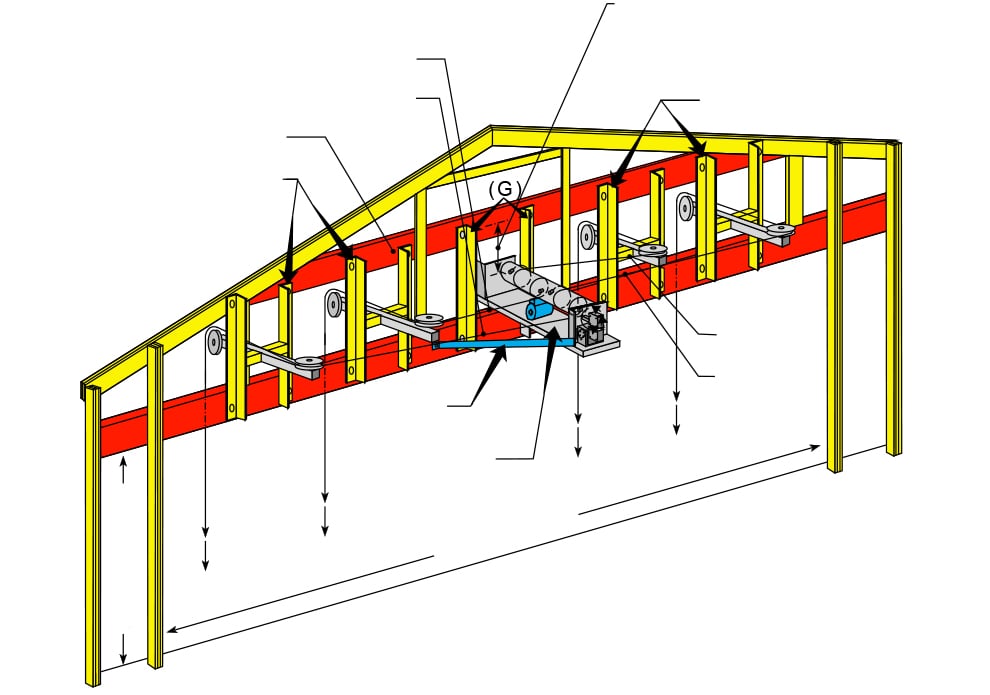

Top Drive . . . With Cables . . . Callouts
Top drives are up and out of the way -
This is very important for certain applications.
Your choice!!! Bottom drive or Top drive, No extra cost!
Left Side Inside of Bldg.
Right Side Inside of Bldg
A - Clear Height
B - Clear Width
Pulley Angle ( F )
Brackets
Bi-Fold Door Header
Cable B
Cable D
( E ) Extra Bracing
Top Drive Power Unit
Cable A
Cable C
( H ) Distance Of 7"-8" From
Center Of Header To
Center Of Cable Drum
Pulley Angle Brackets

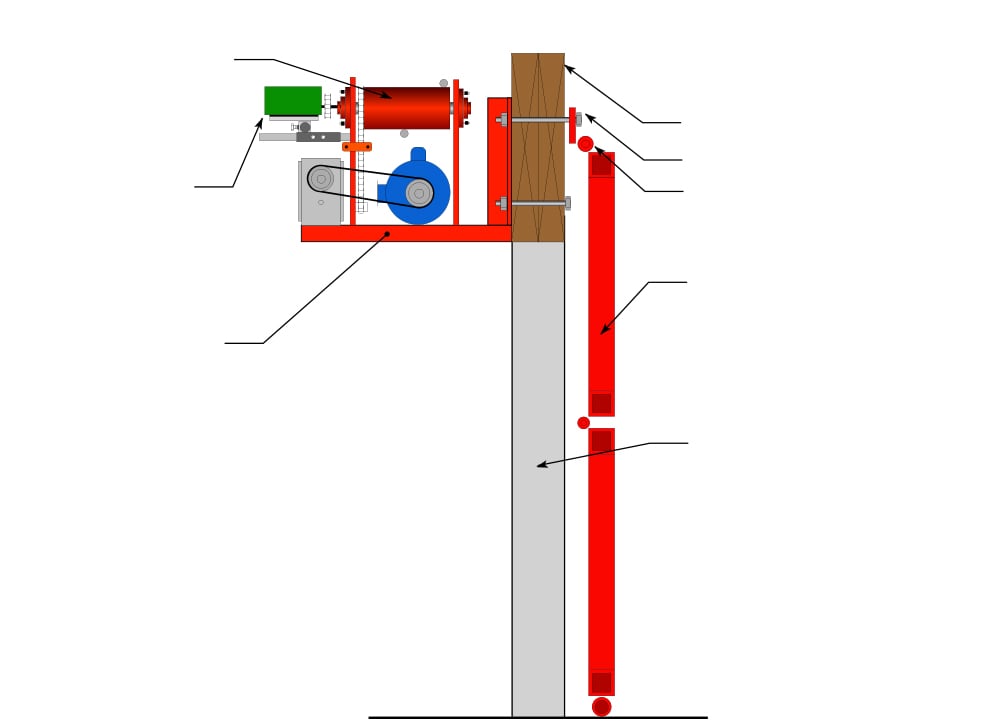

Top Drive . . . Side View . . . Cable Lift Doors
Side View
Floor Level
Power Unit
Cable Drum
Electric
Limit Switch
Top Drive
Power Unit
Building Header
Header Bolt
Single Hinge
Bi-Fold Door
Building
Side Column
Top Drive Power Unit . . . Cable Lift Doors
