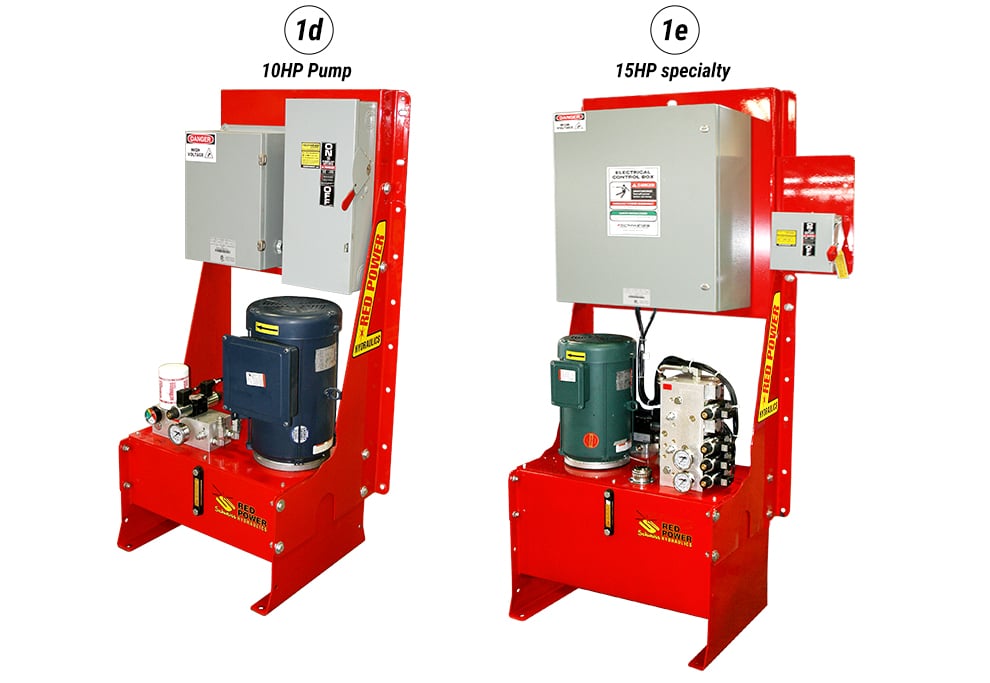

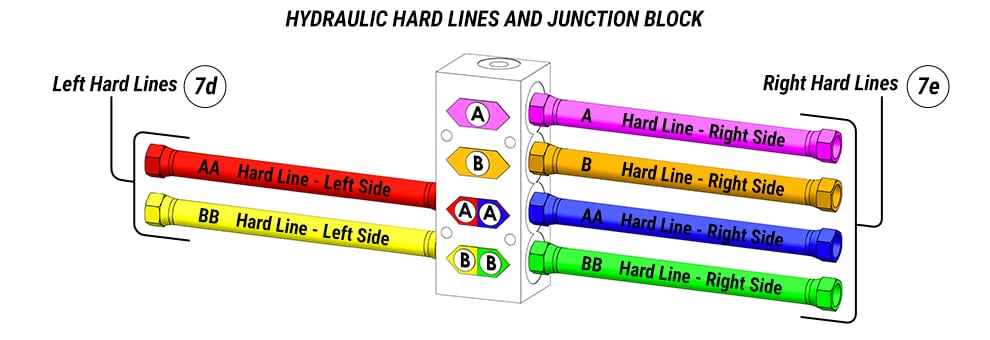

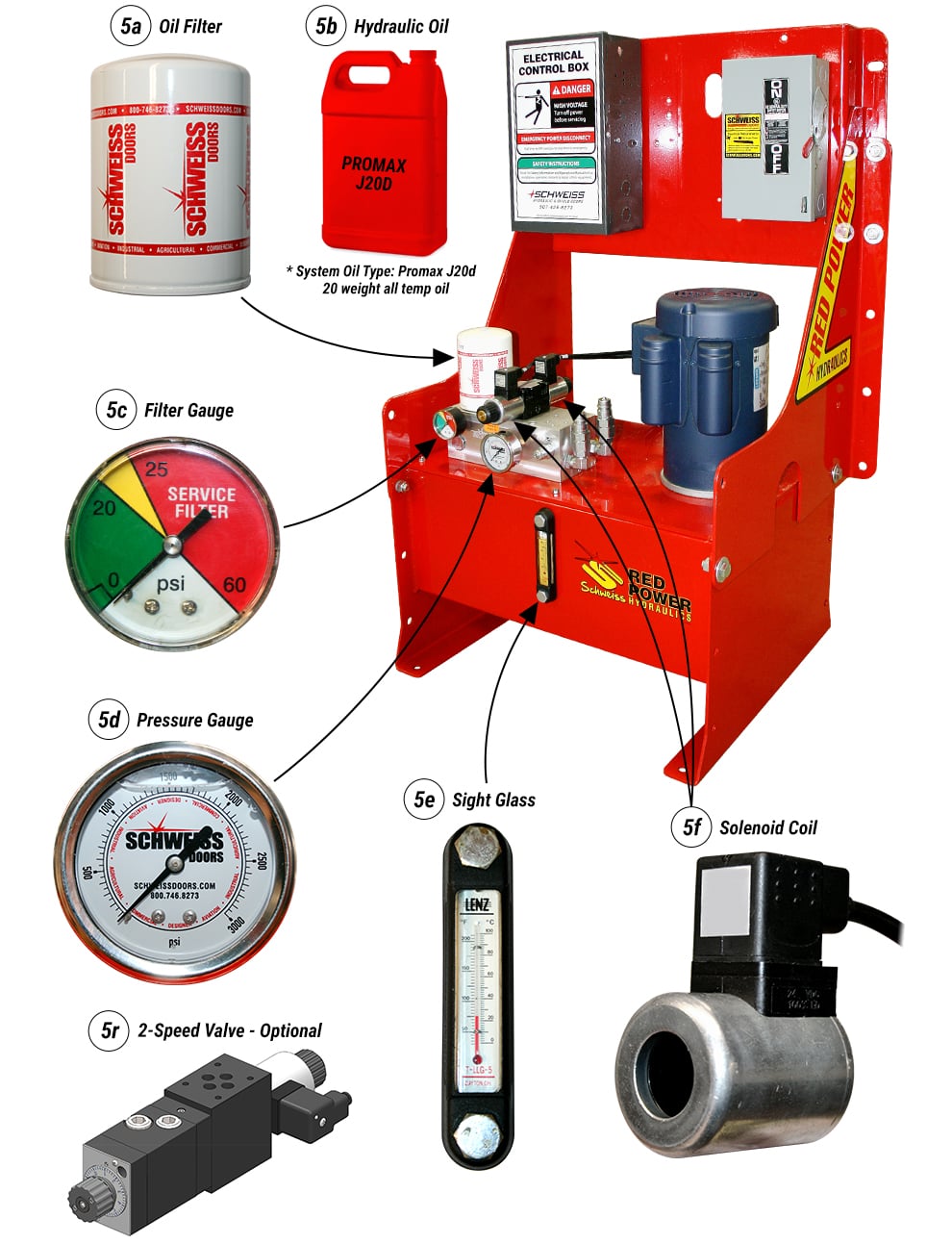

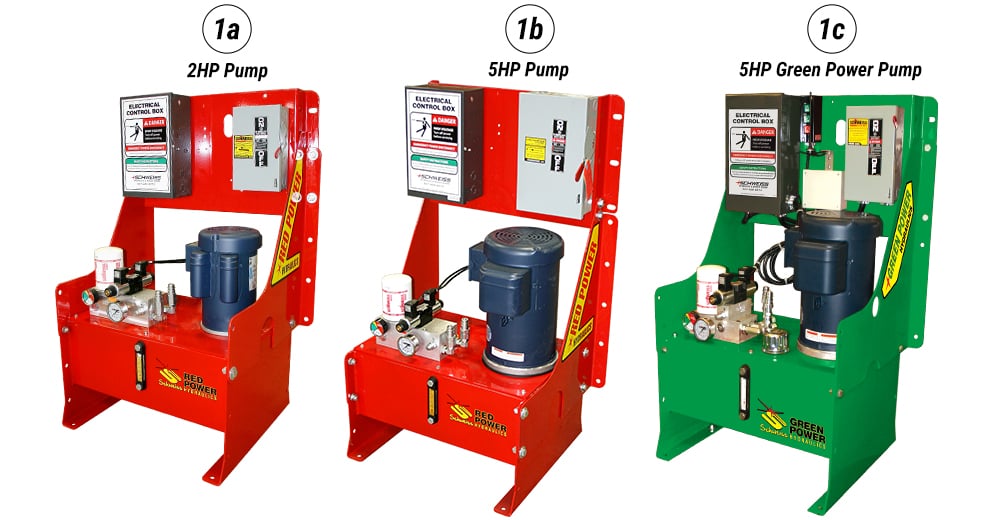

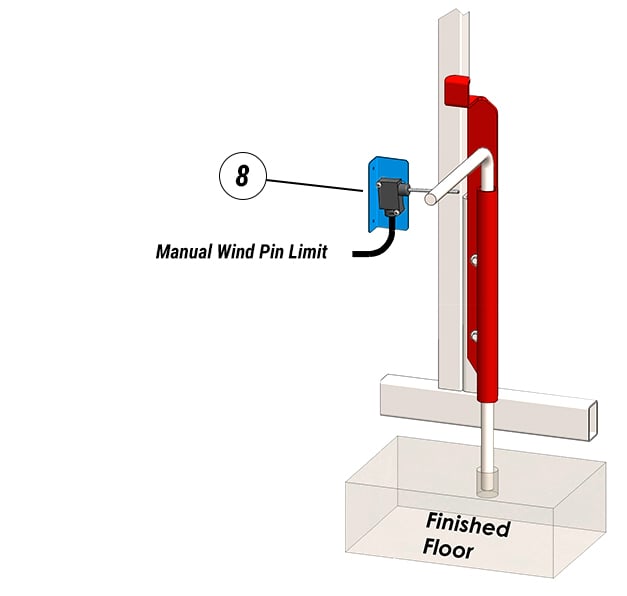

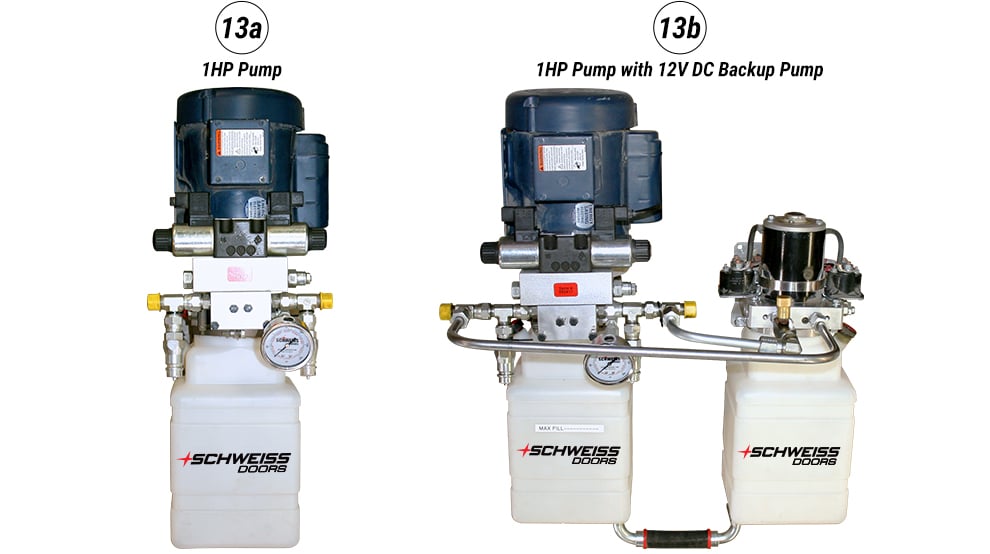

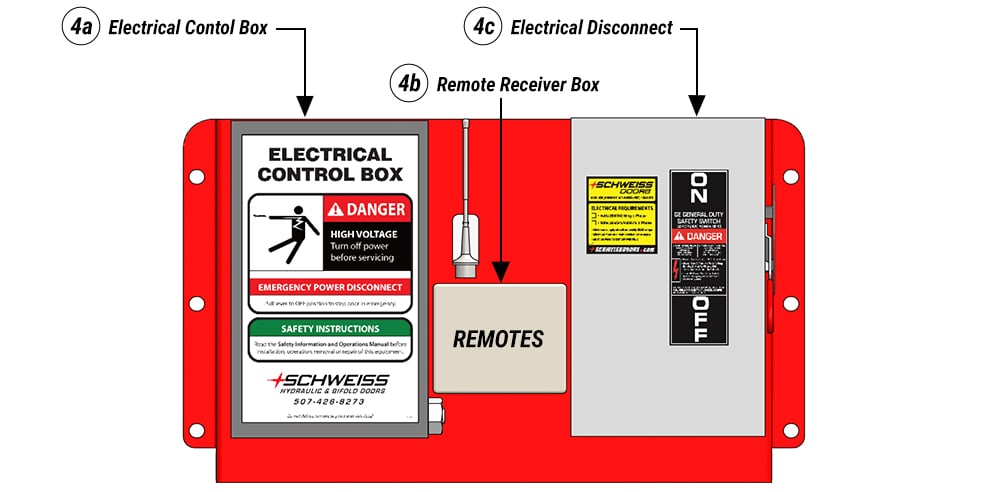

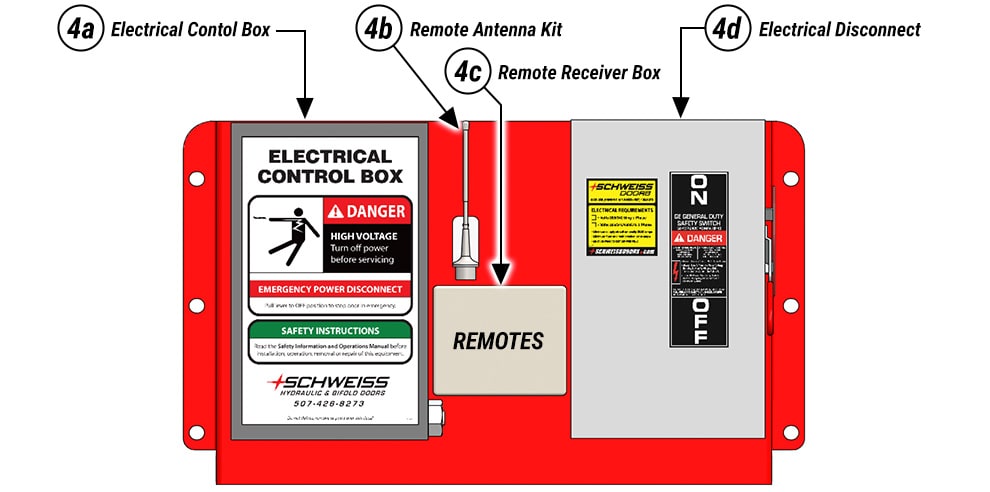

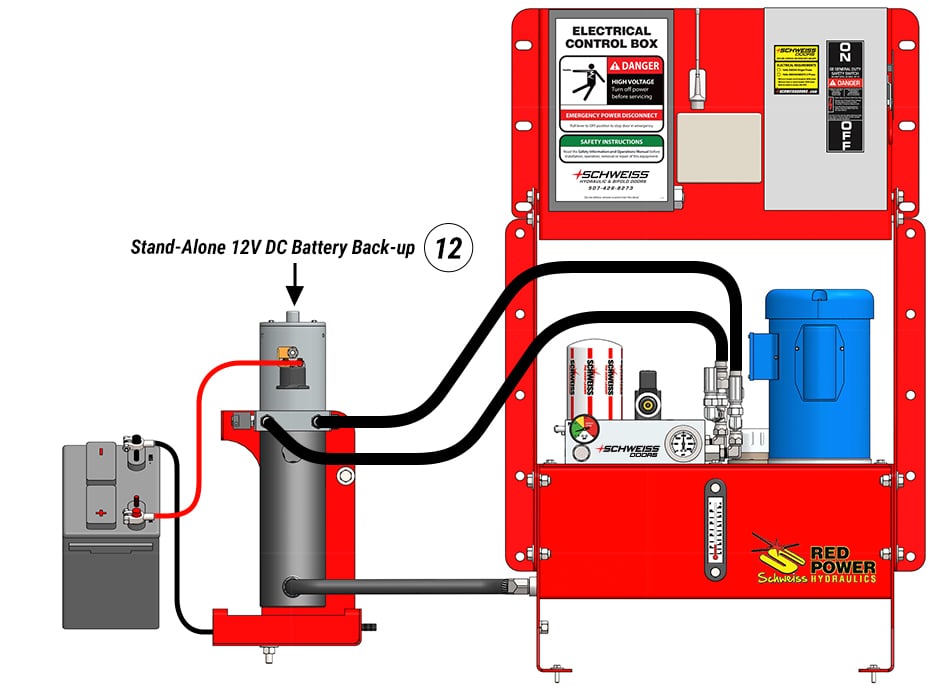

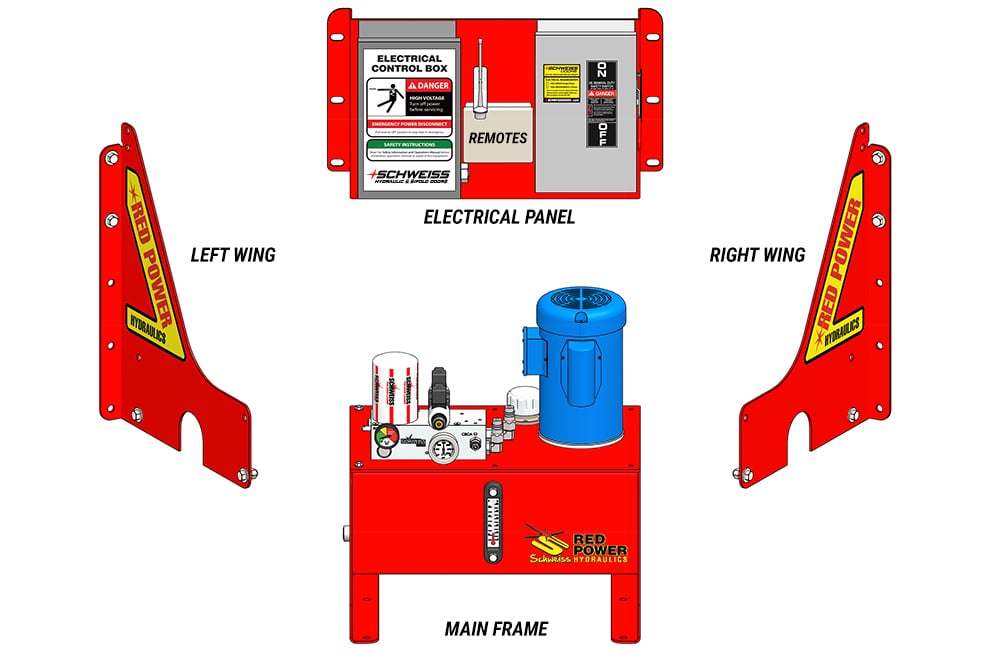

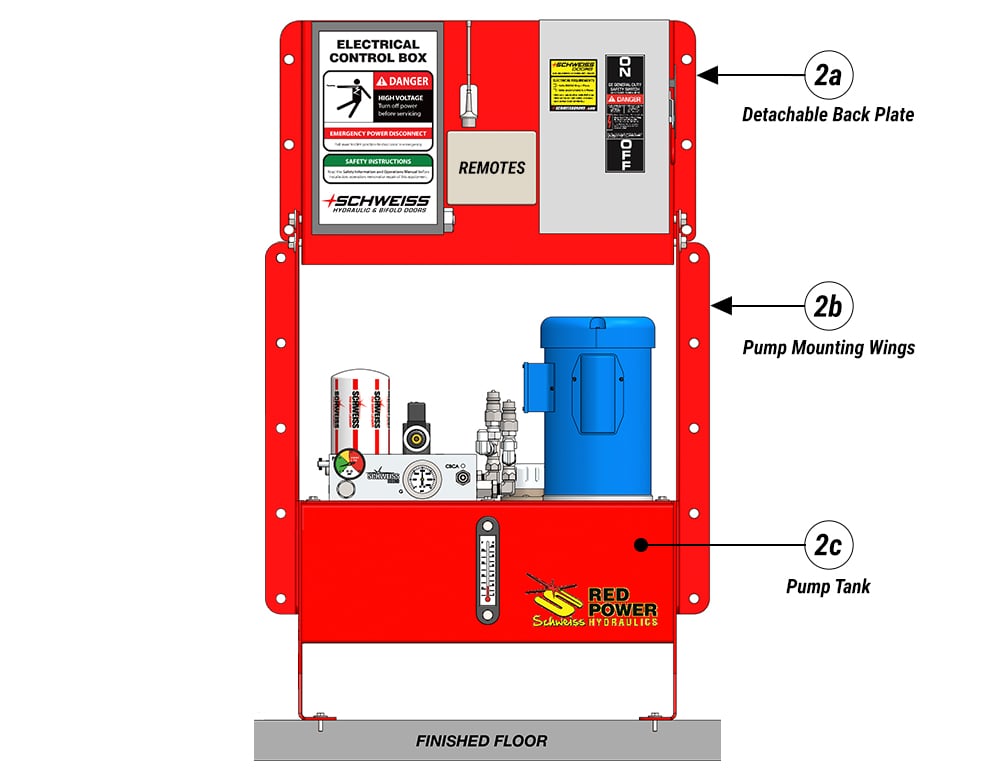

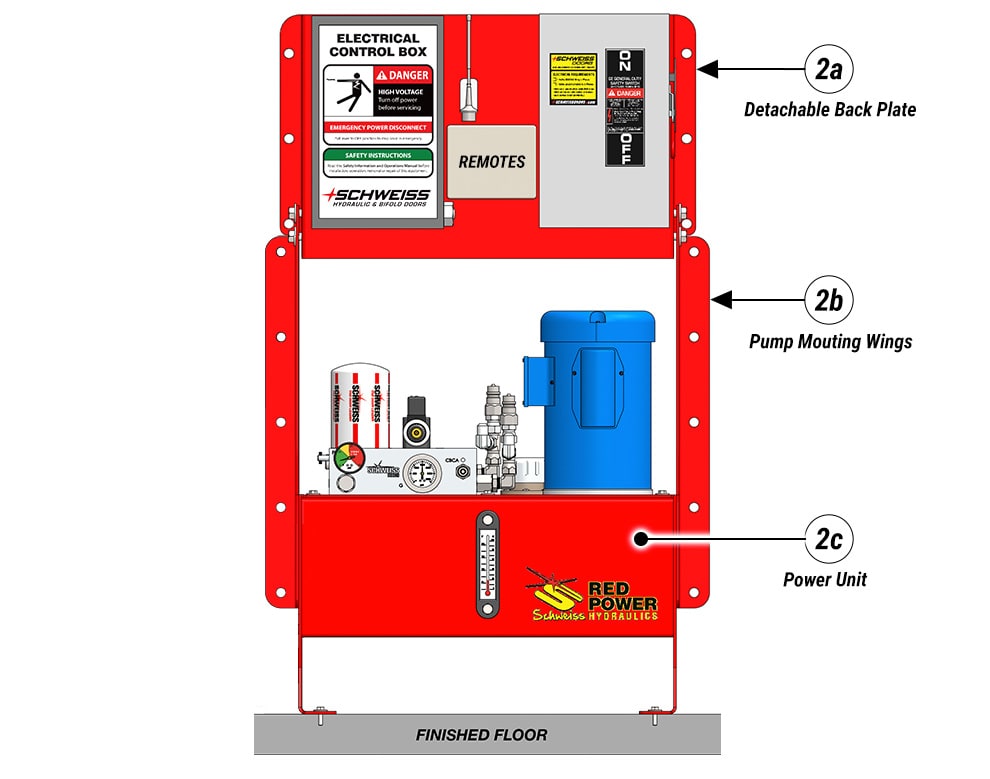

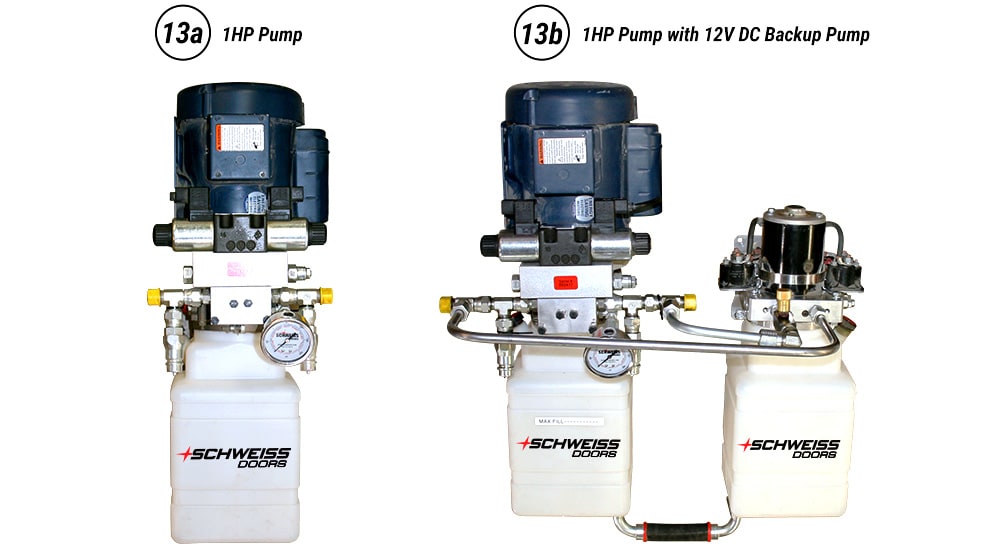

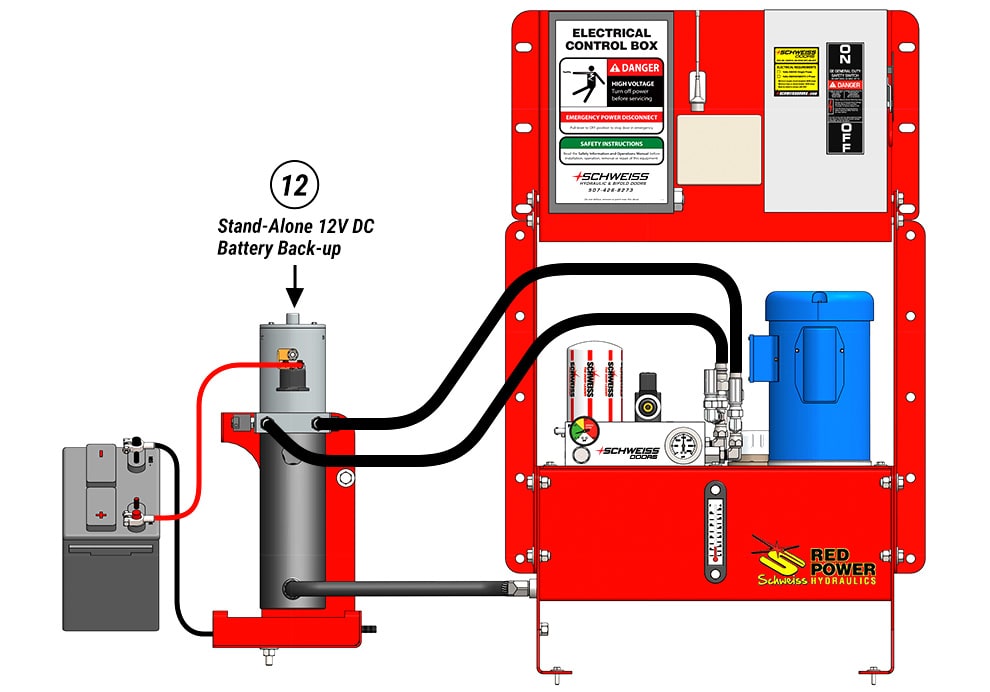

Electrical Back Plate . . . Breakdown

4

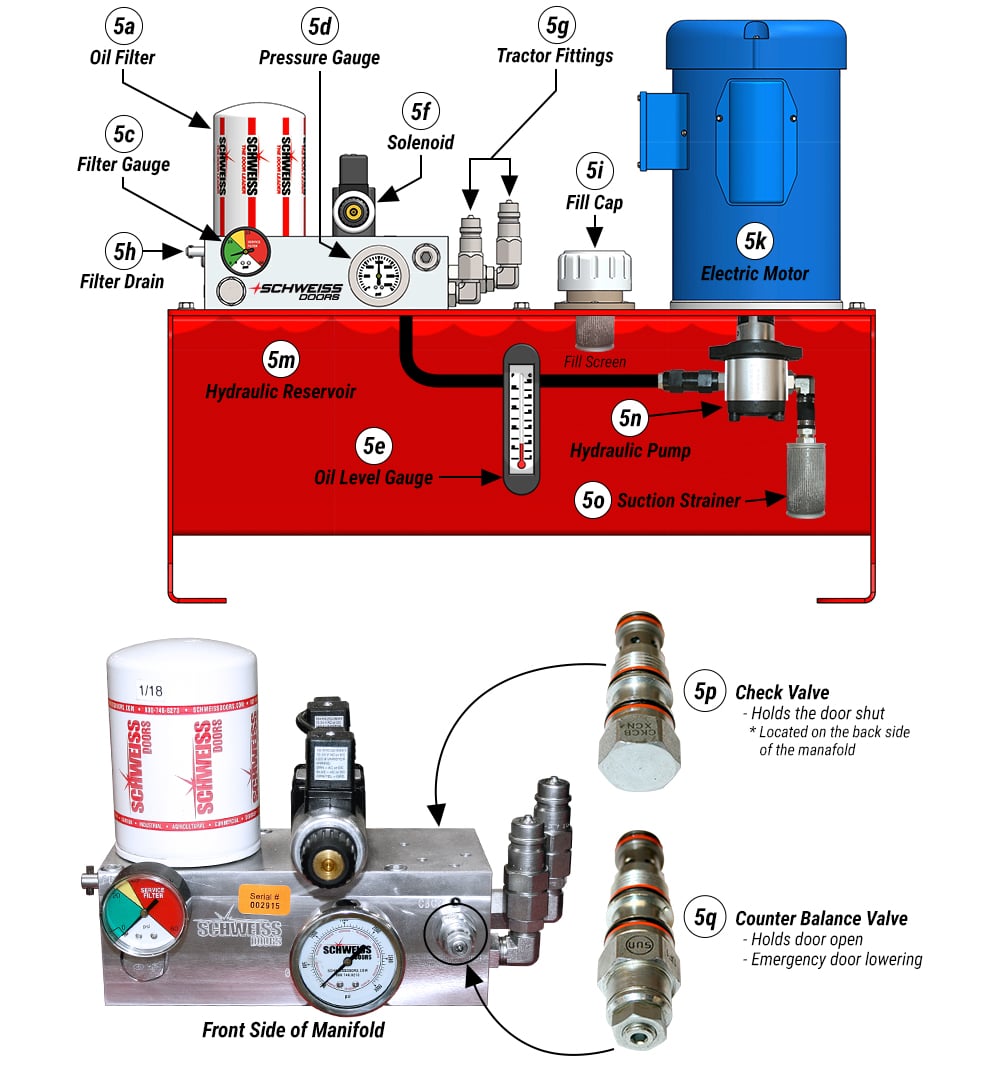

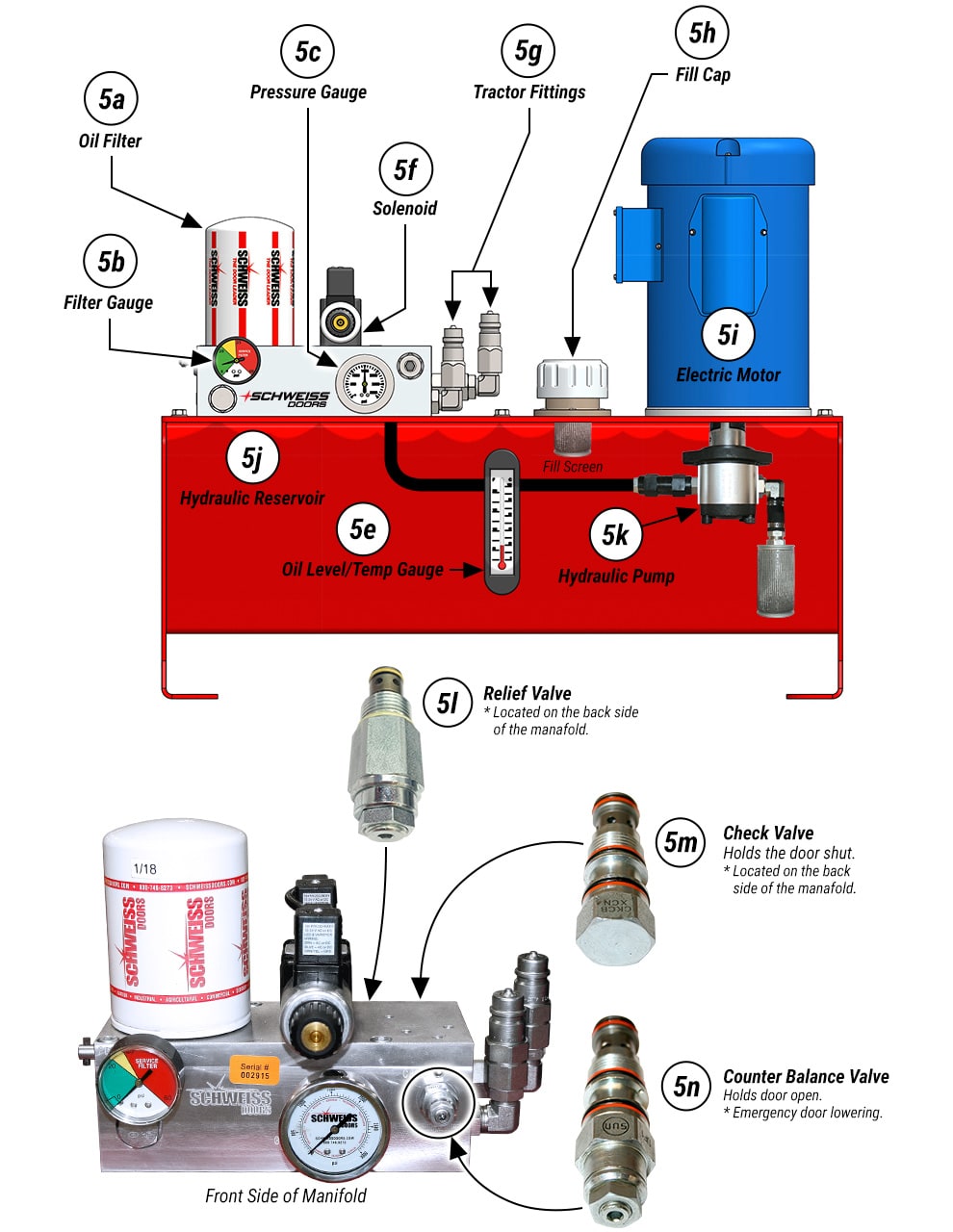

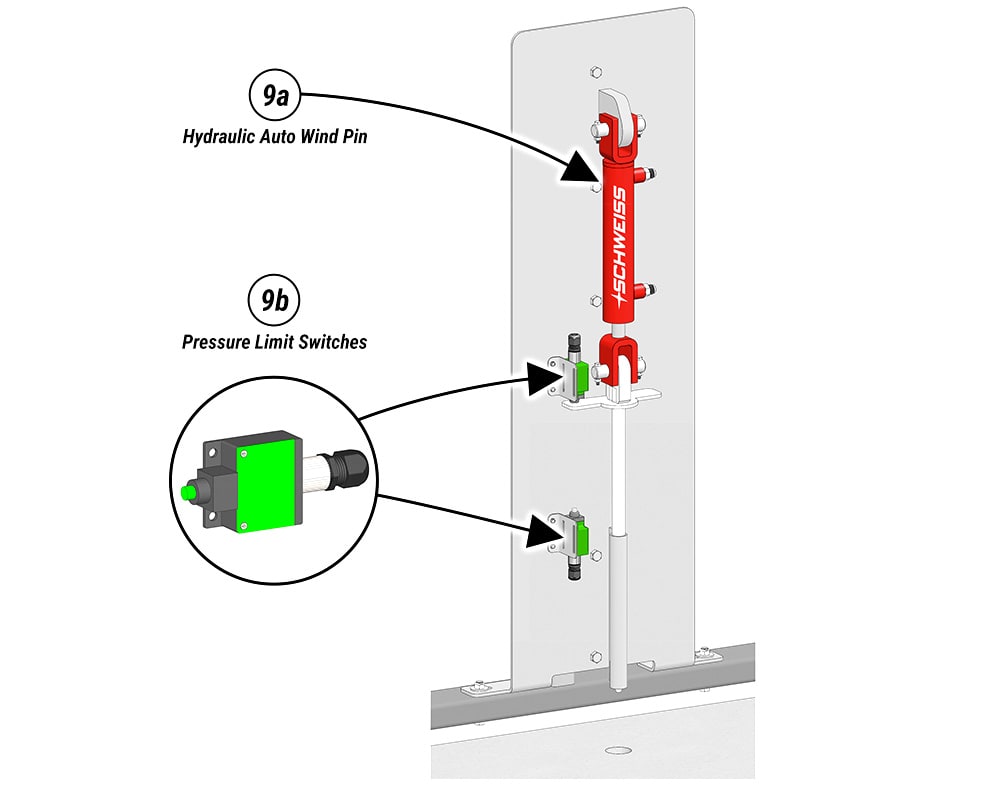

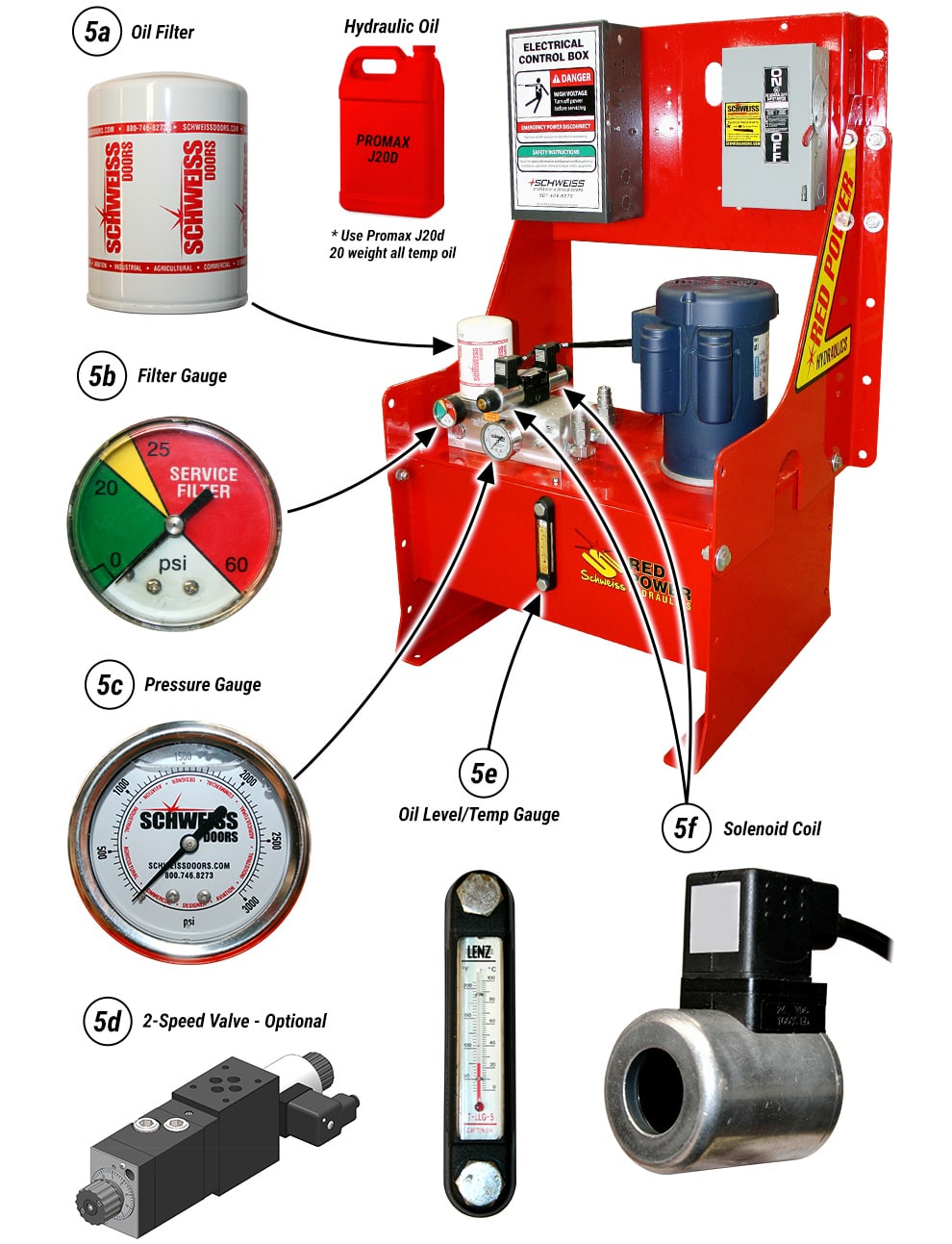

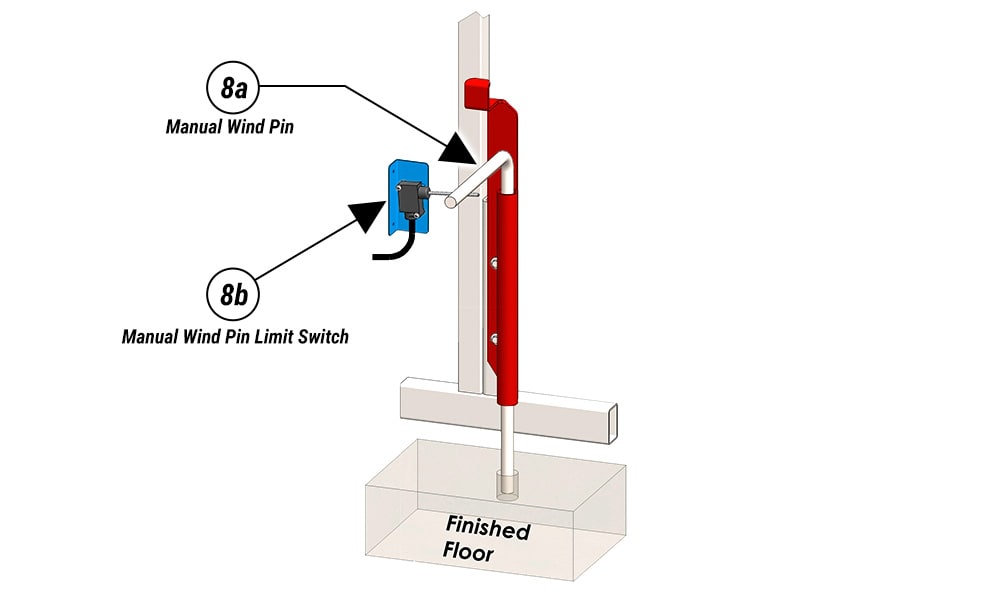

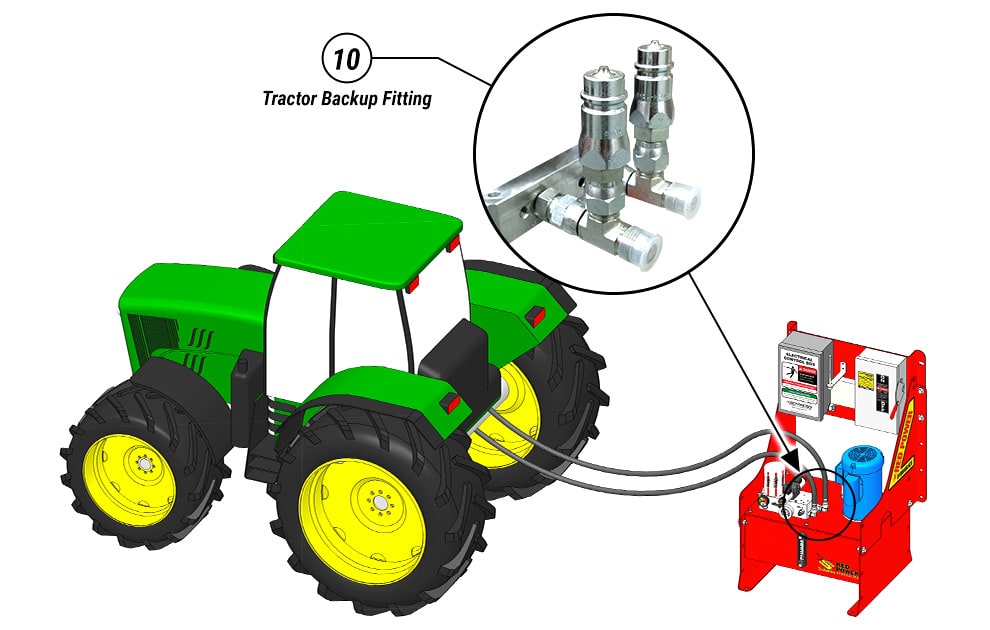

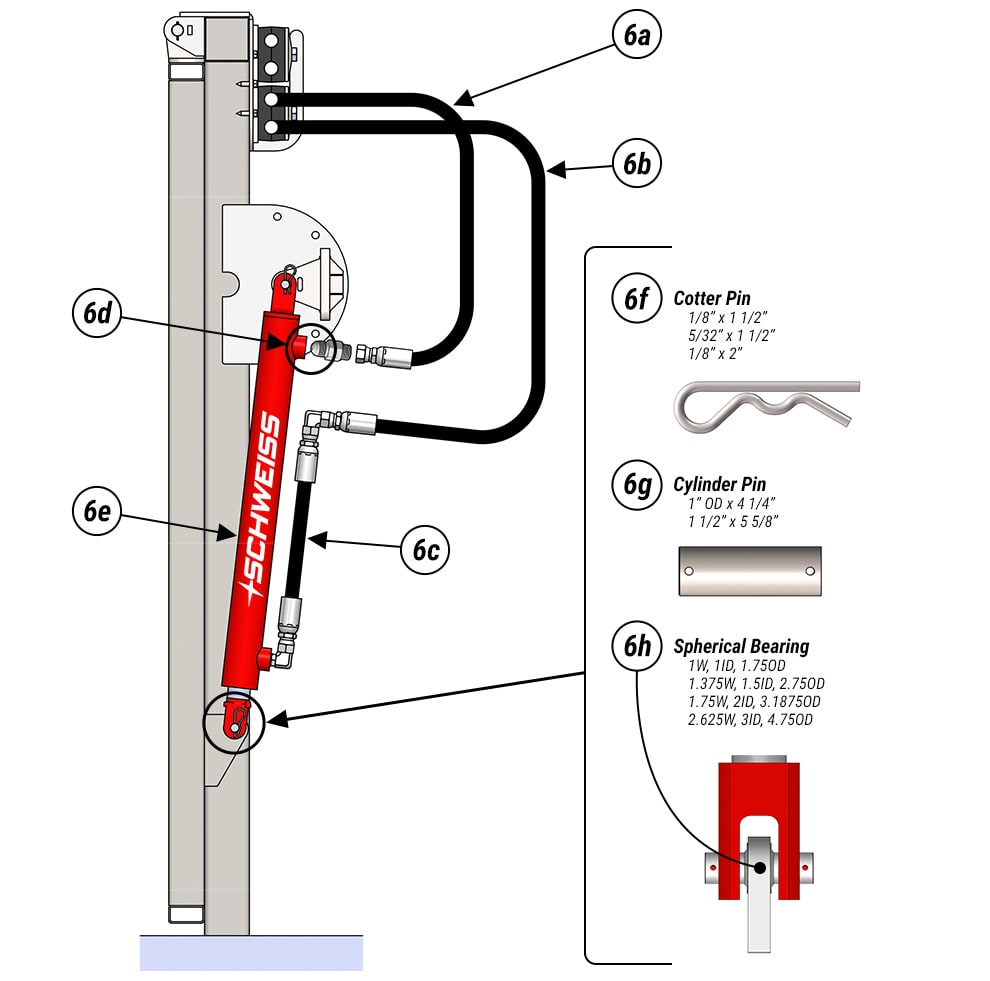

Parts Callout

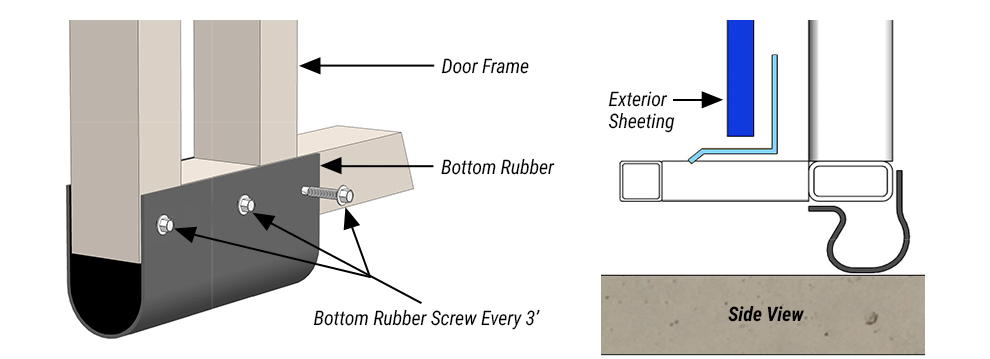

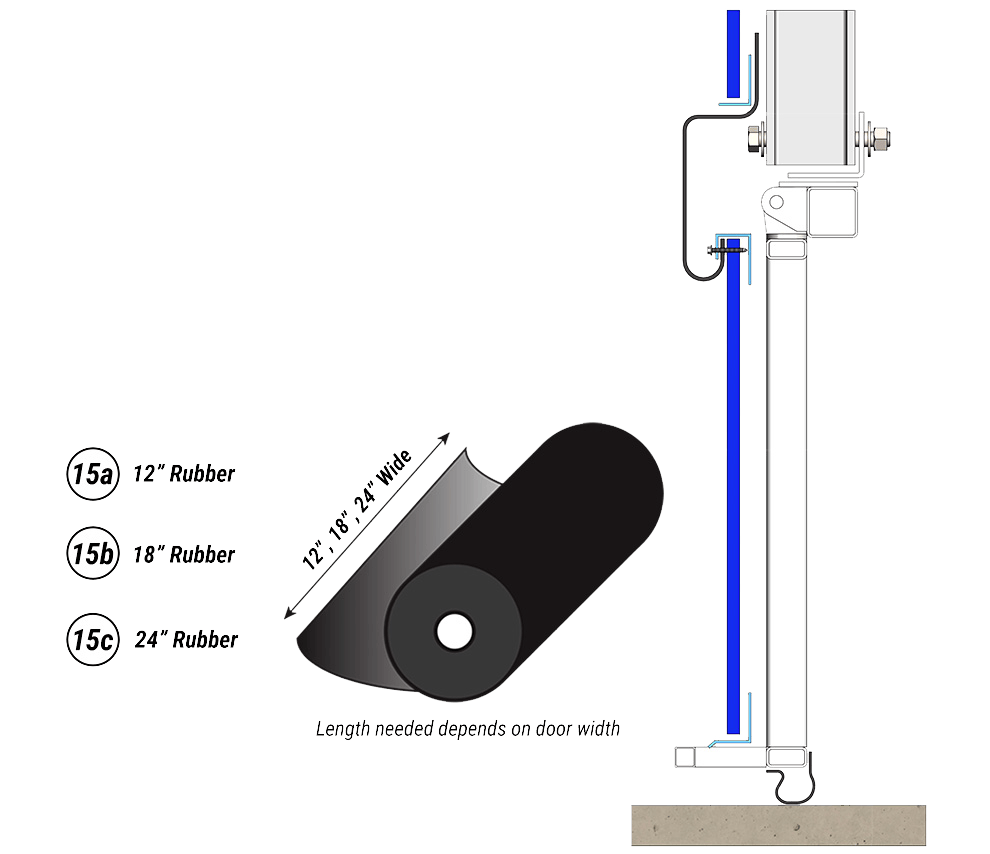

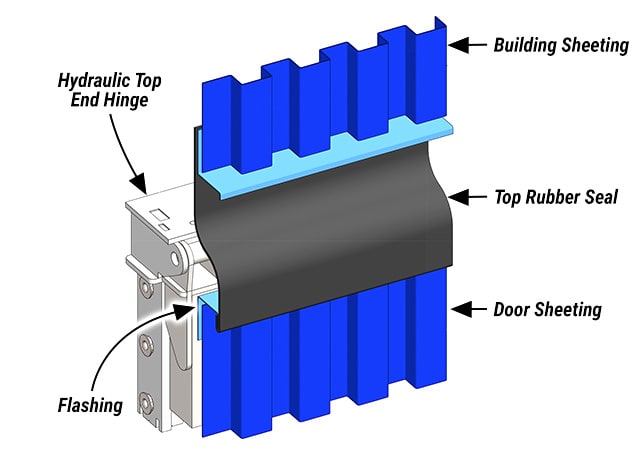

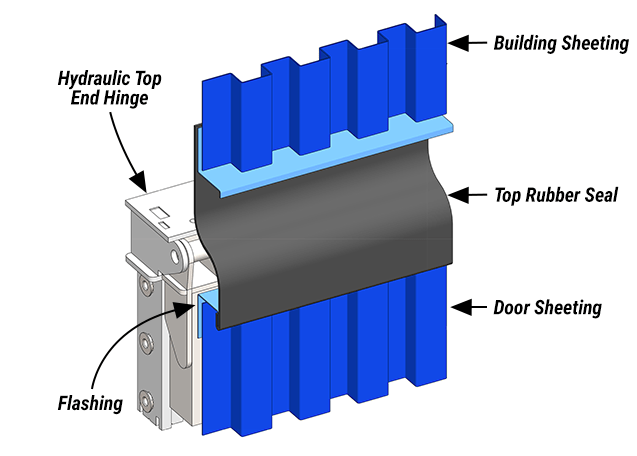

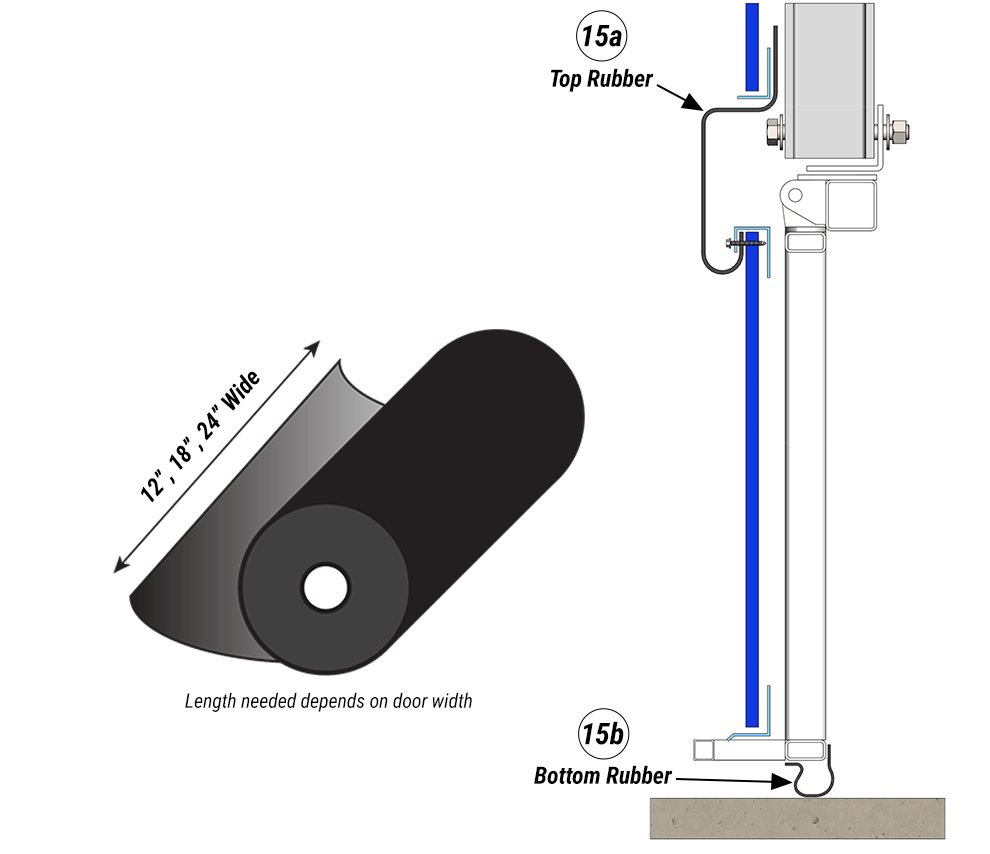

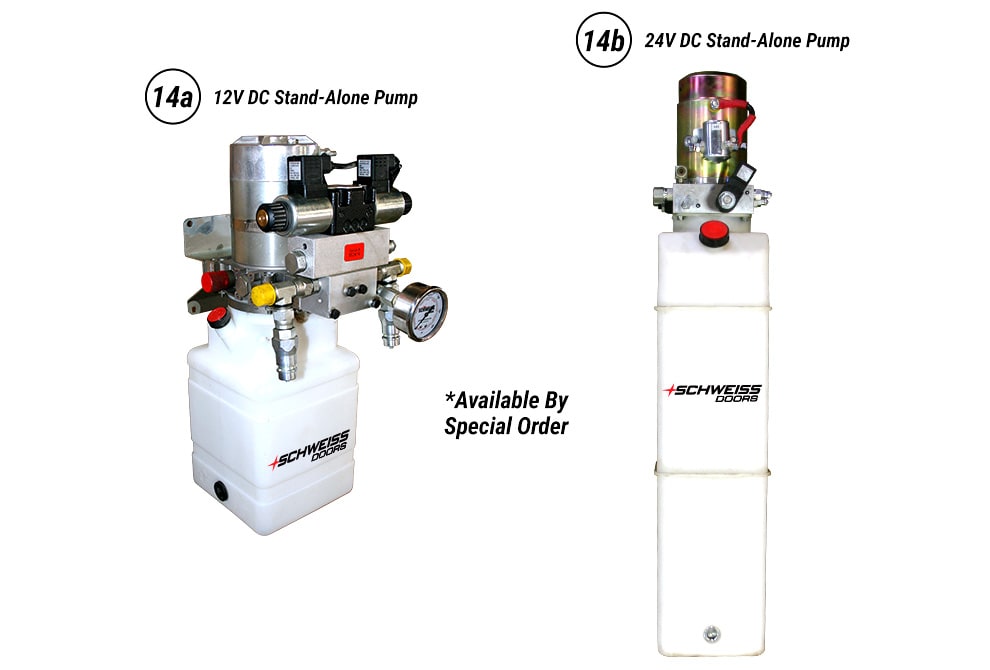

Rubber Seal - Material is 1/16" 1 Ply EPDM Rubber Belting with Cloth Insert

15

We furnish 12" or 18" rubber boot that seals the bottom of your Hydraulic Door.
The heavy 1-ply, cloth-inserted rubber seal provides excellent weatherproofing.
Note: Existing bituminous surface / concrete varies and seals should be placed accordingly.

Distance will vary depending on how high the door was installed above the floor

Material is 1/16" 1 Ply EPDM Rubber Belting with Cloth Insert

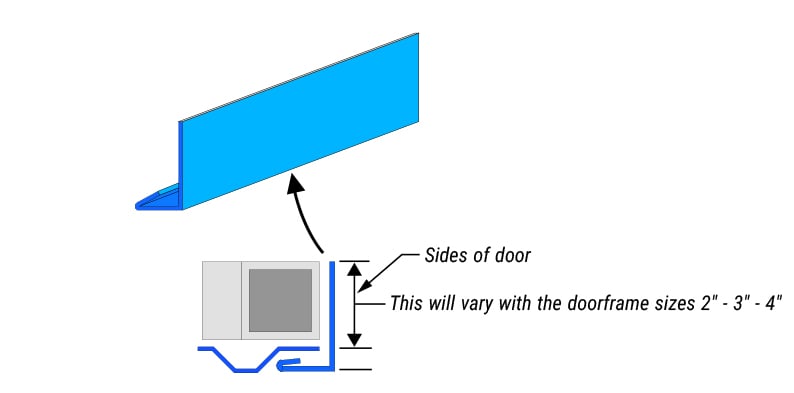

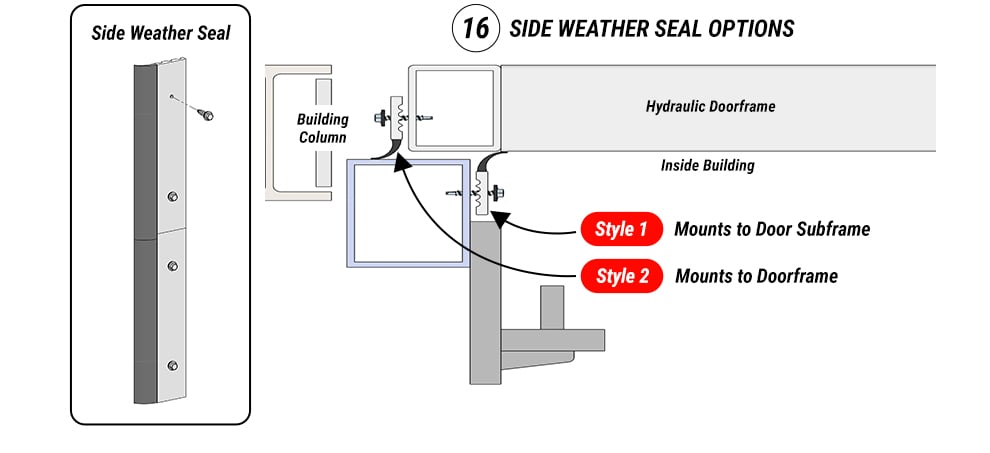

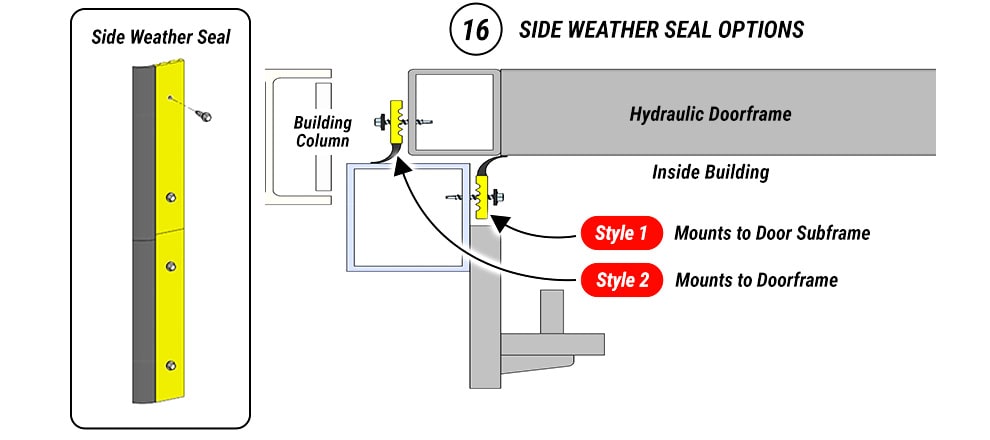

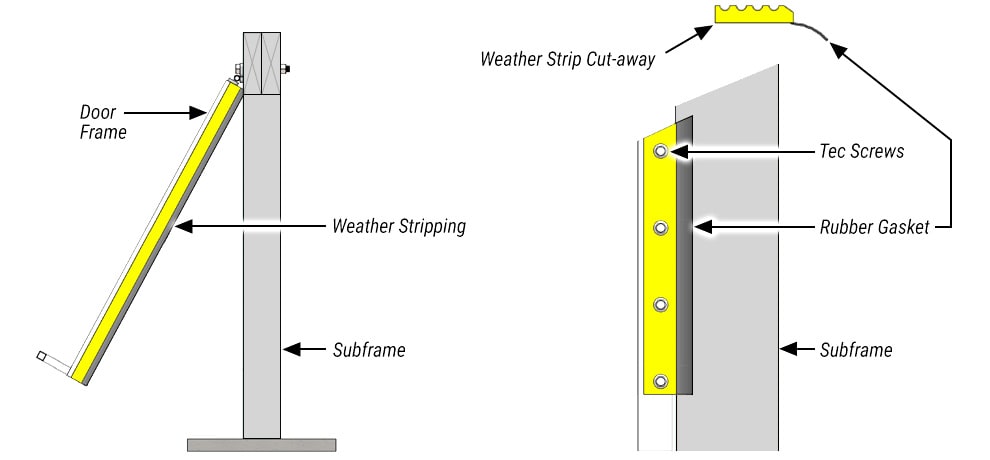

Side Weather Seal

16

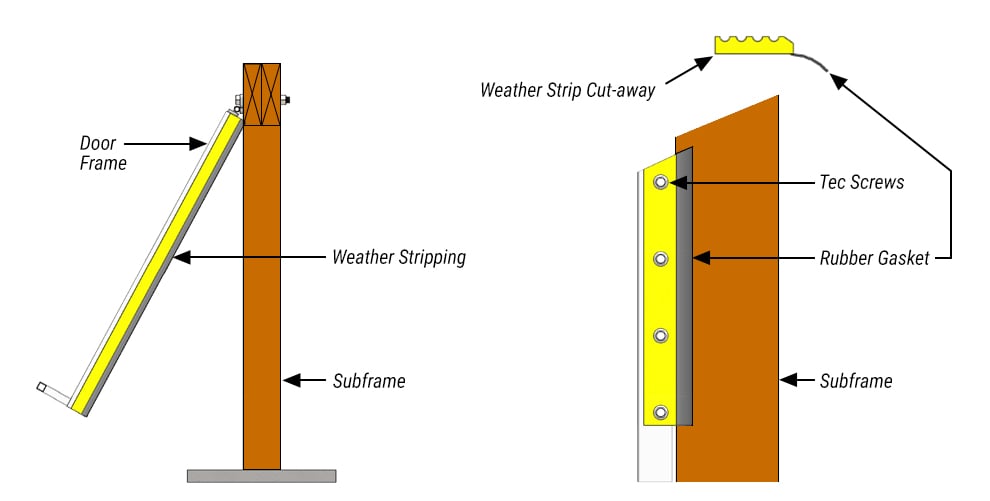

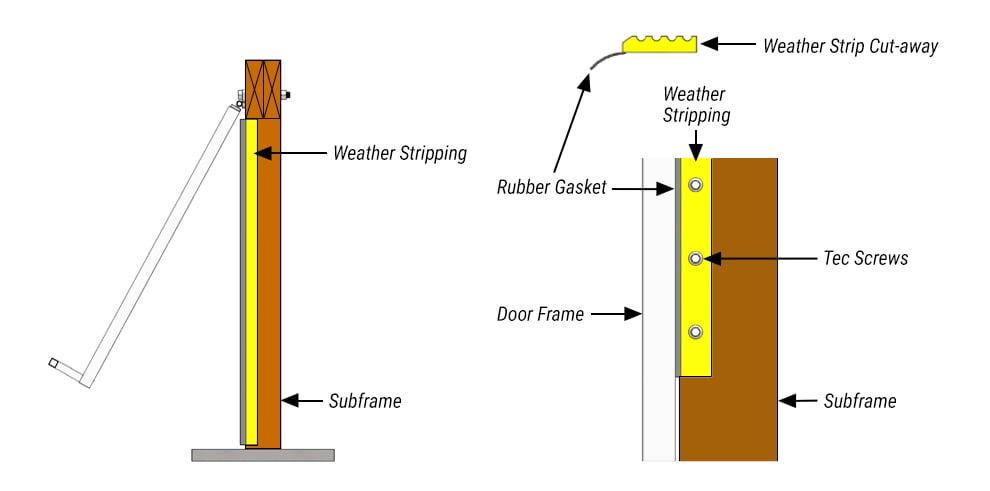

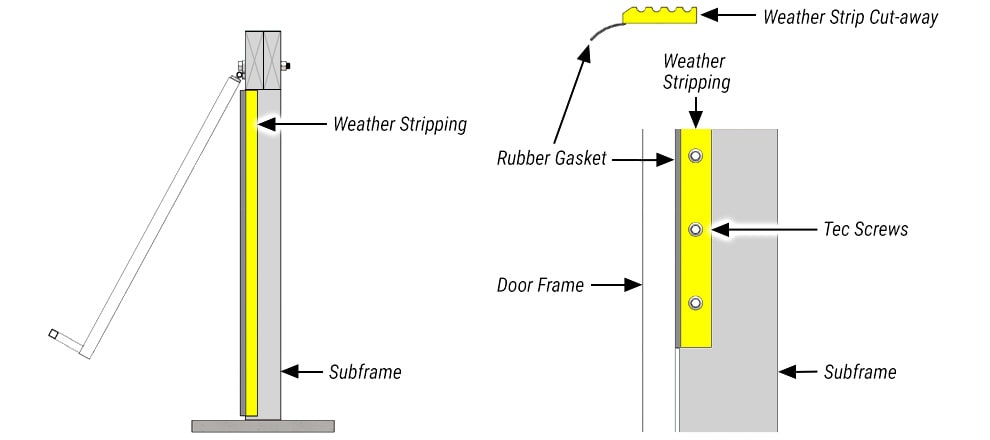

Doorframe seals against the subframe weather strip

Doorframe and weather strip seals against the subframe

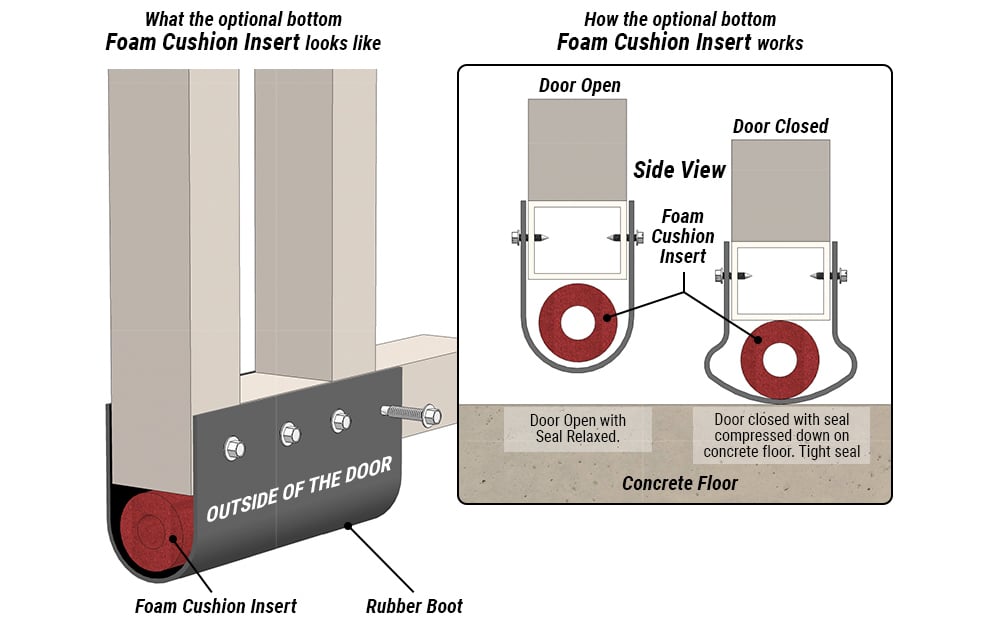

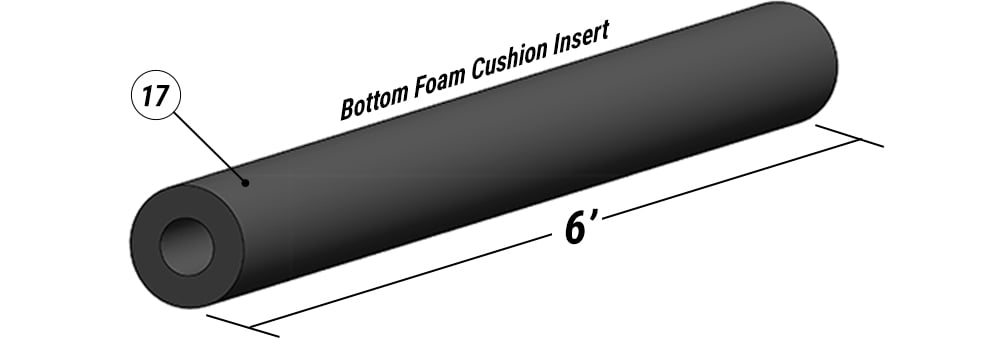

Bottom Foam Cushion Kit

17

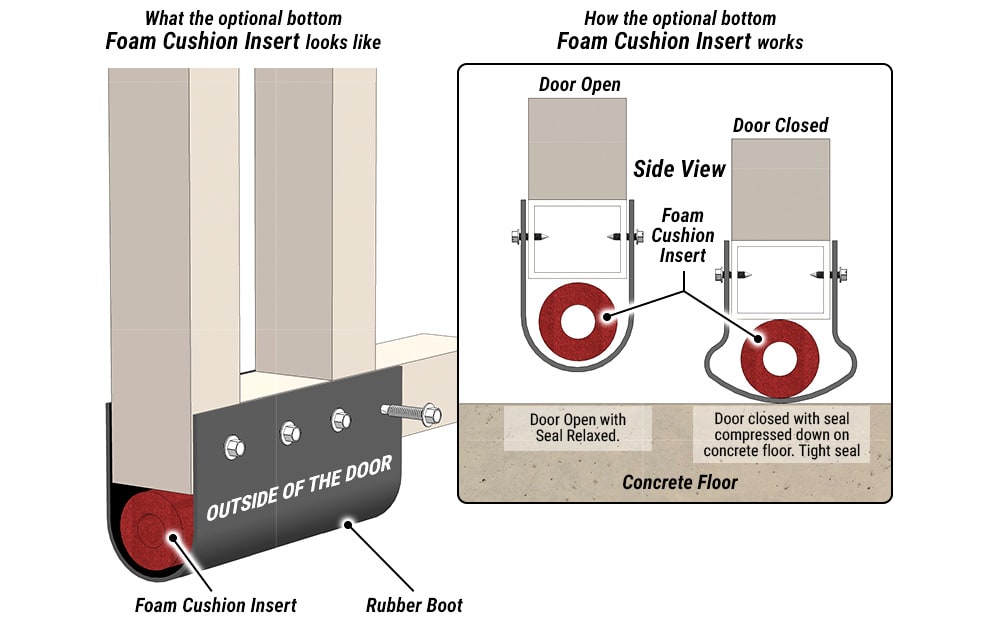

Schweiss Doors is introducting a unique weather seal kit that can be retrofitted to all styles of doors, be it Bifold Doors or Hydraulic Doors. The new bottom seal has a special foam cushion that provides an extra weathertight seal on the bottom of any style door. The special designed foam cushion kit allows the door bottom rubber to conform to dips and bumps in the surface giving you a uniform seal to ensure a weathertight seal at the bottom of each door.

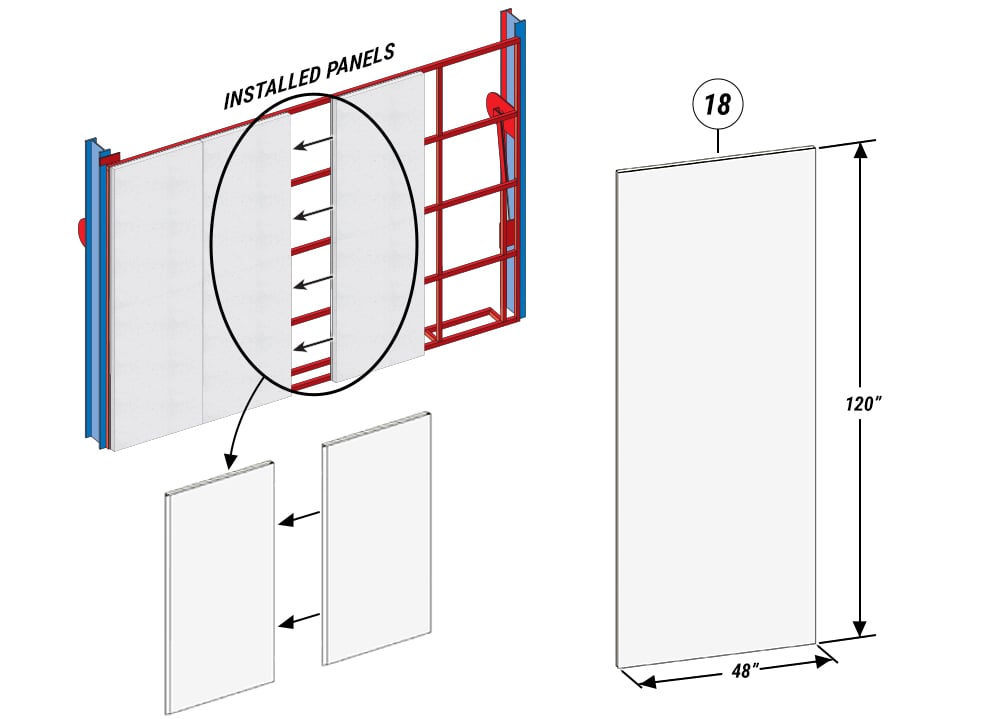

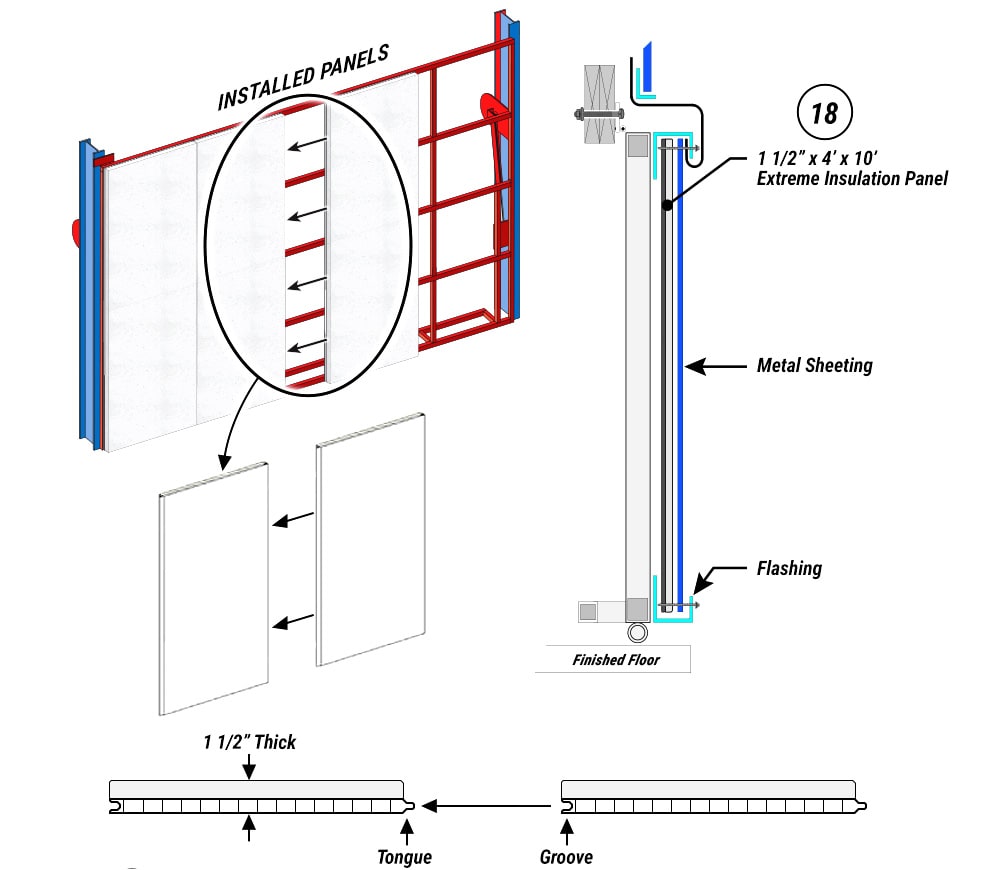

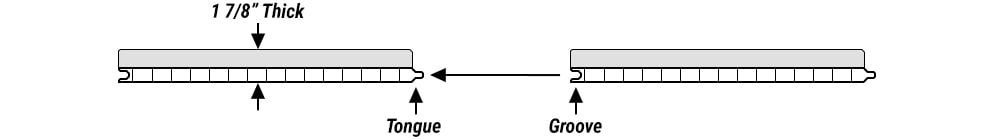

Extreme Insulation Panels - Insulation Package

18

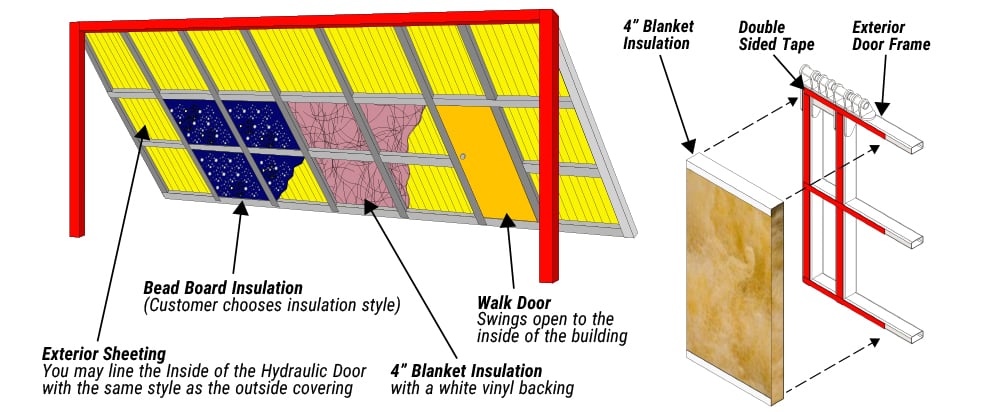

All of our automatic Hydraulic Doors are easy to insulate with blanket, foil or hard board fitted between the doorframe members. The thicker the doorframes, the more insulation you can apply. You can also place the insulation between the doorframe and the outside sheeting.

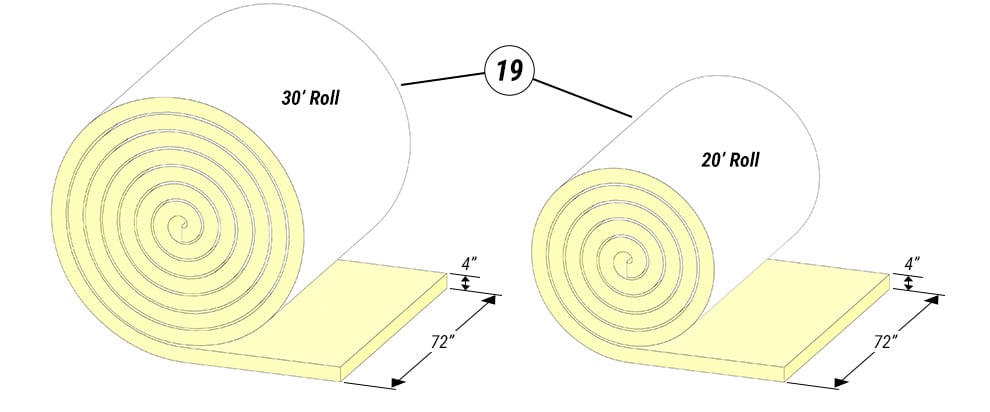

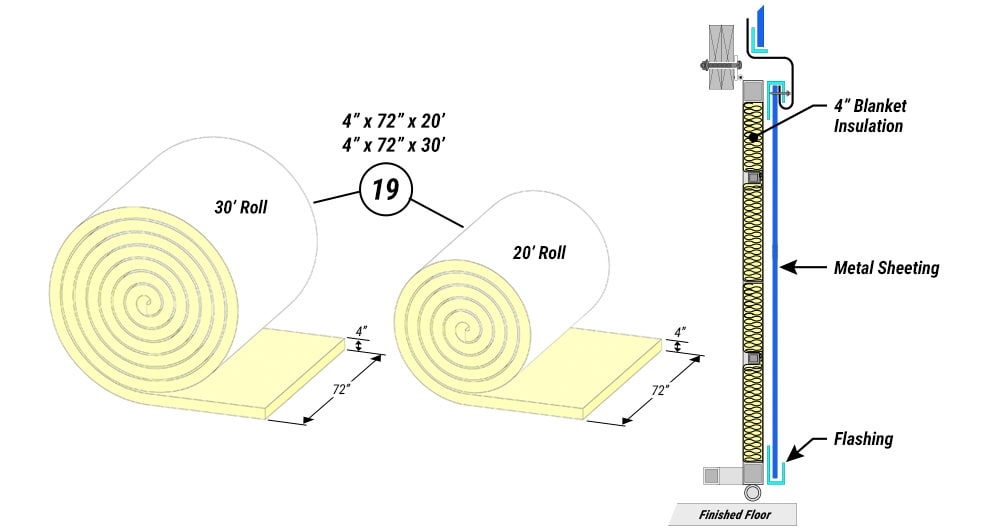

Blanket Insulation - Insulation Package

19

• You can place the insulation between the door frame and the outside sheeting.
• You can place it between the door frame members.
• The thicker the door frames, the more insulation you can apply, for a better R factor.

Inside Liner Panel (Optional)

20

To give your door a finished look on the inside, we offer an inside liner kit for doing only the inside bottom half or the entire inside frame.

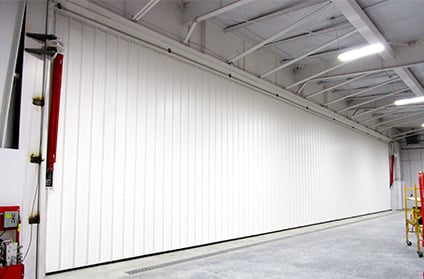

Fully Lined Hydraulic Door

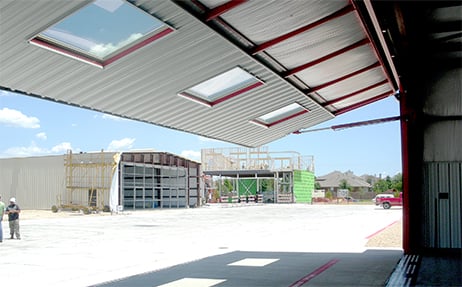

Partially Lined Hydraulic Door

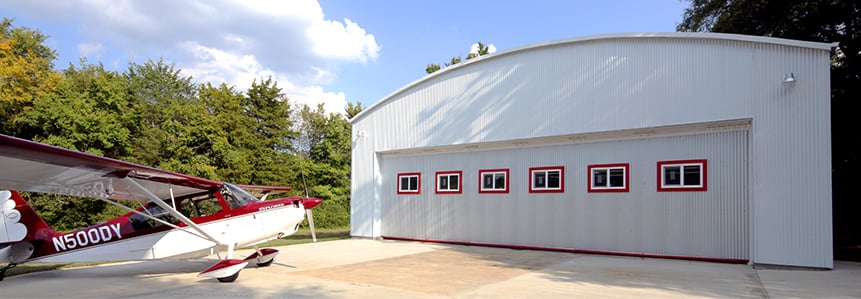

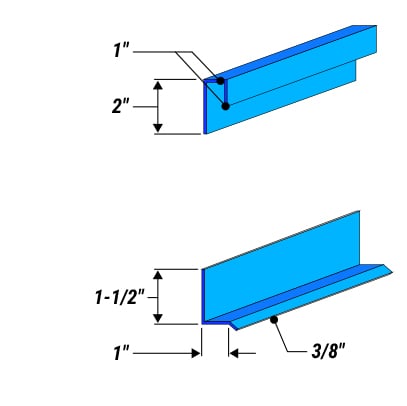

Exterior sheeting and flashing (Optional)

21

•  When installing a door on an existing building, try to match the door sheeting with the building sheeting or substitute other materials.

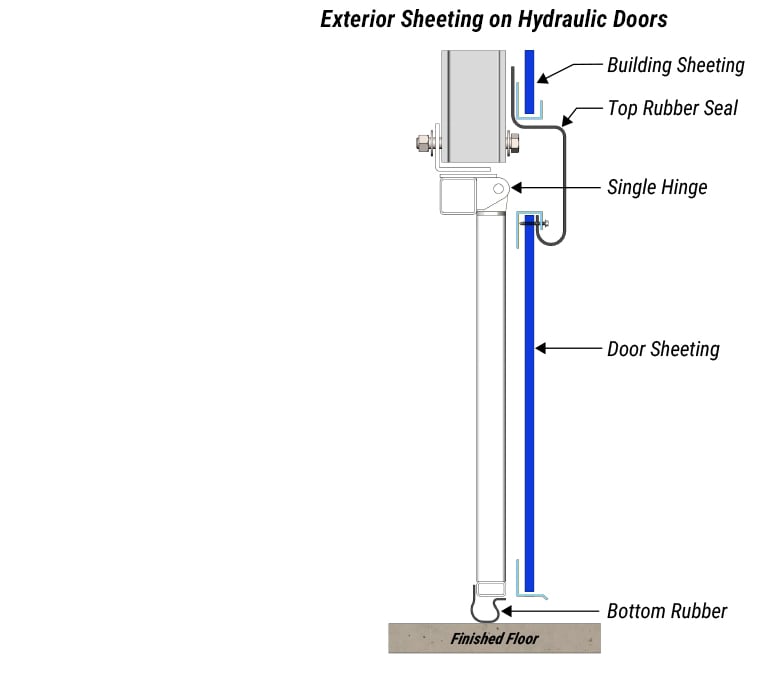

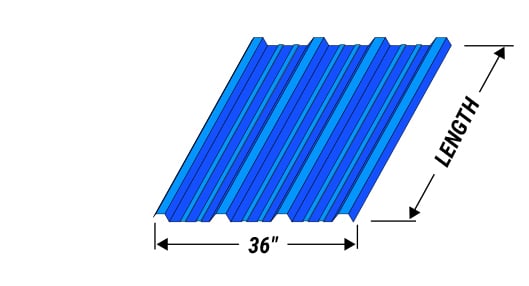

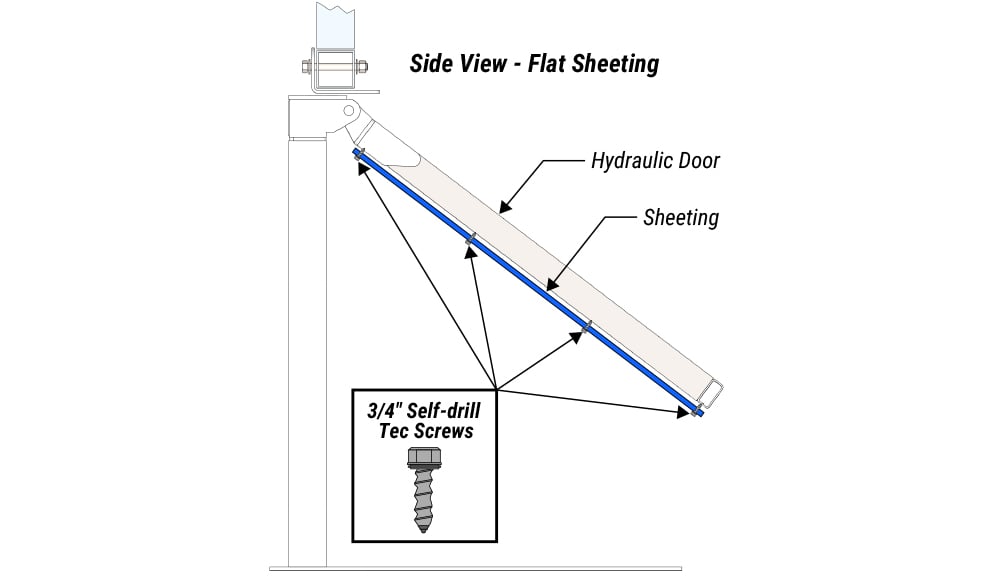

•  The same sheeting used on the exterior of your building can be applied vertically to the hydraulic door.

•  We can provide a self-drilling tec screw with a neoprene washer to apply any type of sheeting to your doorframe. We offer special color screws to match your sheeting.

•  External Door Sheeting & Trims.

•  Wainscot & Trims.

•  Color: Many Colors to Pick From... Your Choice.

•  Inside Liner Sheeting Doors may be finished off in the inside --Lined with sheeting.

•  Alternate Exterior Siding / Skins

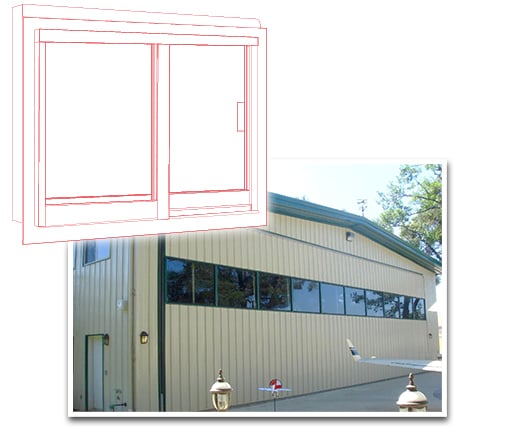

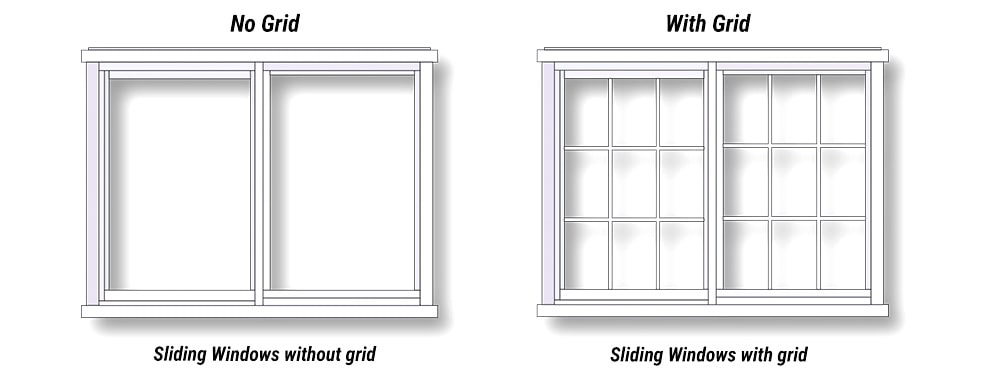

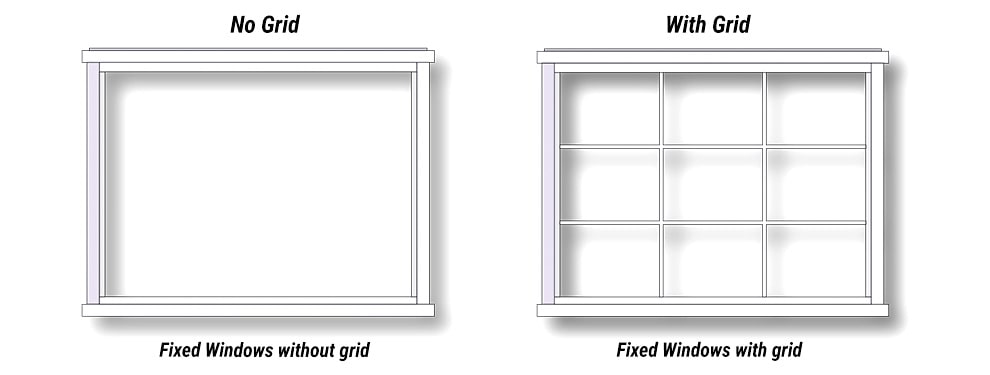

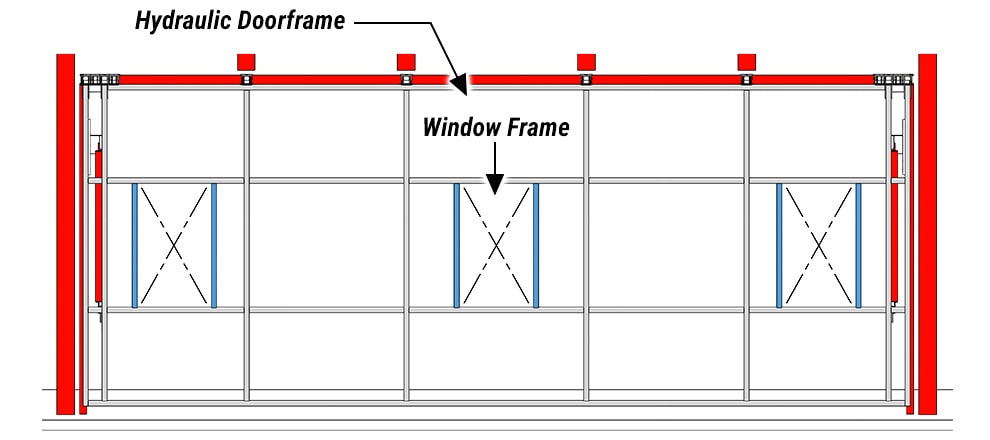

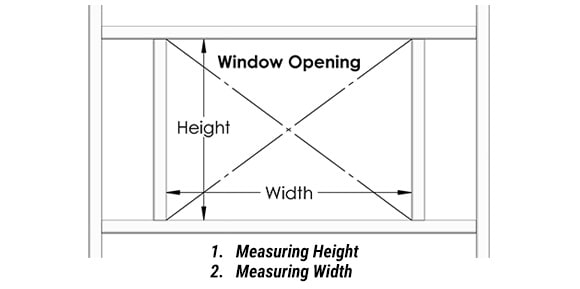

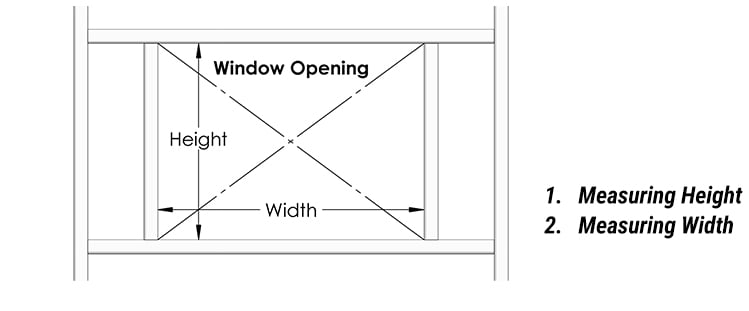

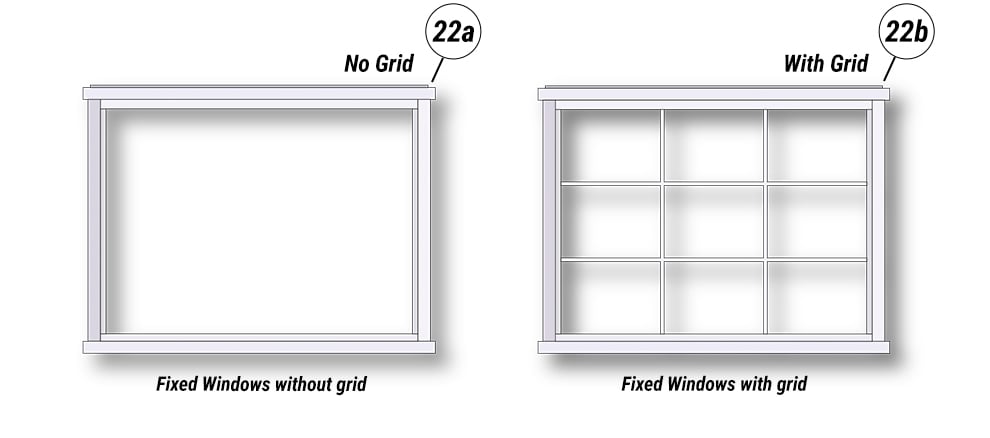

Windows in the Doorframe

22

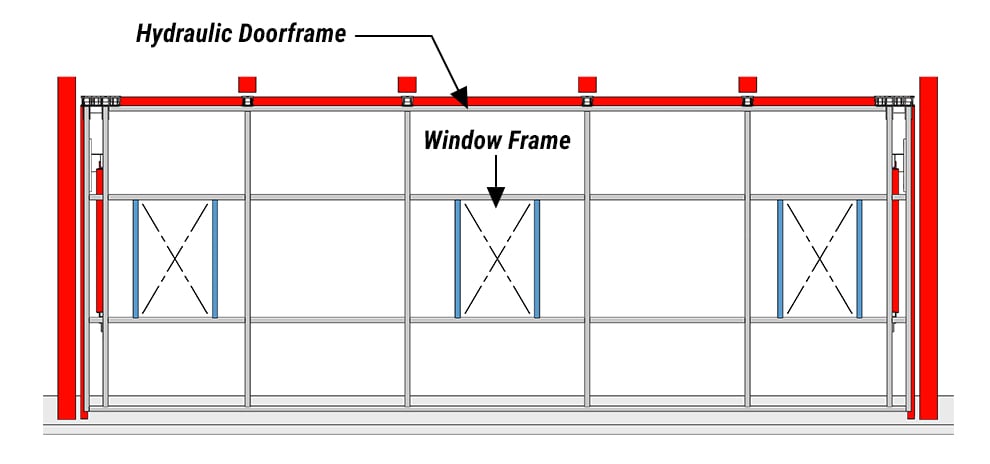

• Commercial grade.

• Sizes are 36" x 48"

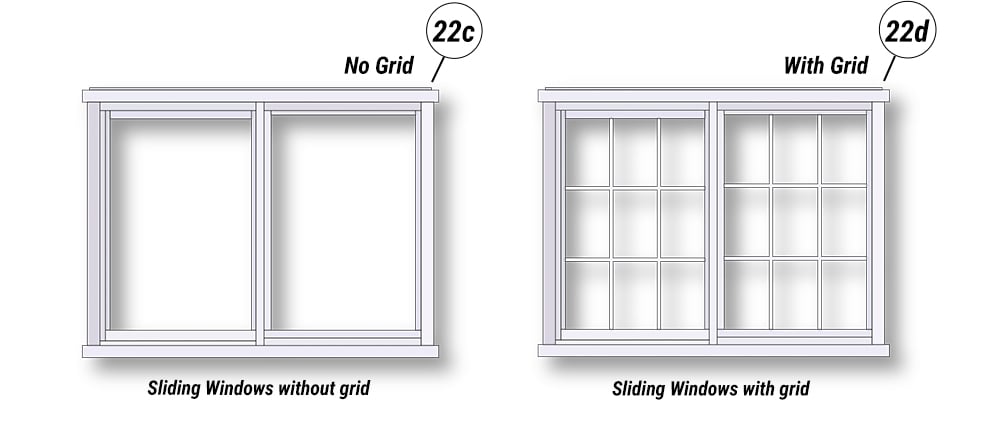

• All windows have screens and slide open.

• Many other sizes available.

• Windows may be placed at any height or location.

• Allows plenty of natural light into your building.

• Specialty windows are catching on fast.
They really sharpen the appearance of your
door and building project. They can be made
to mirror the rest of the building structure,
and adds a neat appearance.

• Windows
Any size, quantity and placement.
Insulated / screens / sliders.
Frames only.

Schweiss Stocks These Sizes:
•  4' x 2' - ( Sliding or Fixed )
•  4' x 3' - ( Sliding or Fixed )
* Other window sizes are custom ordered

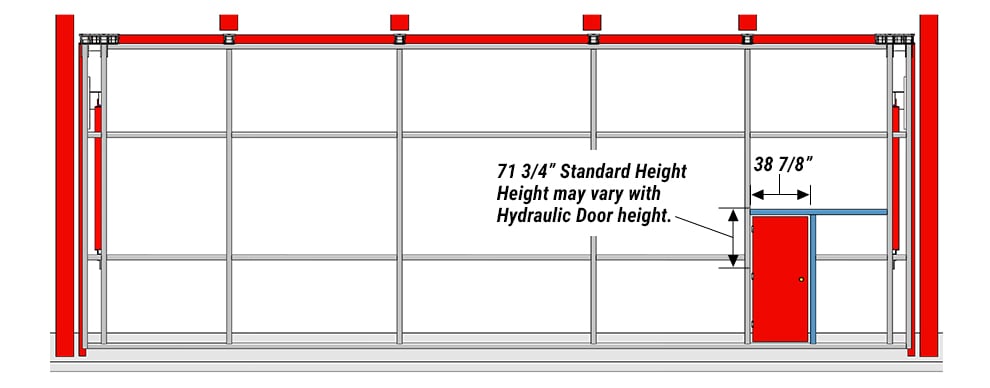

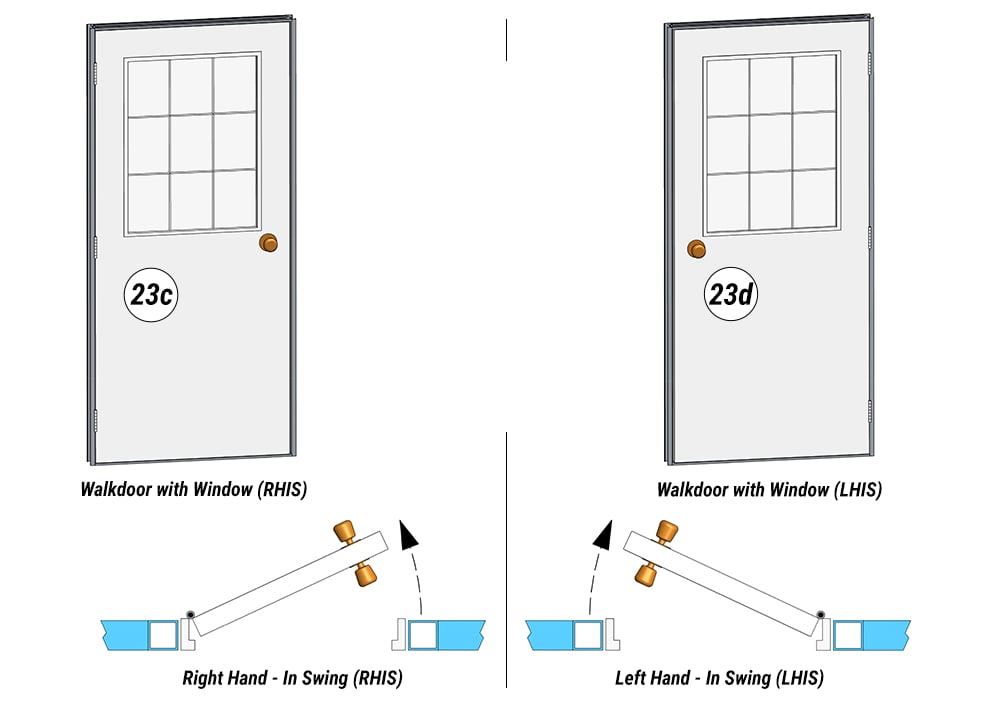

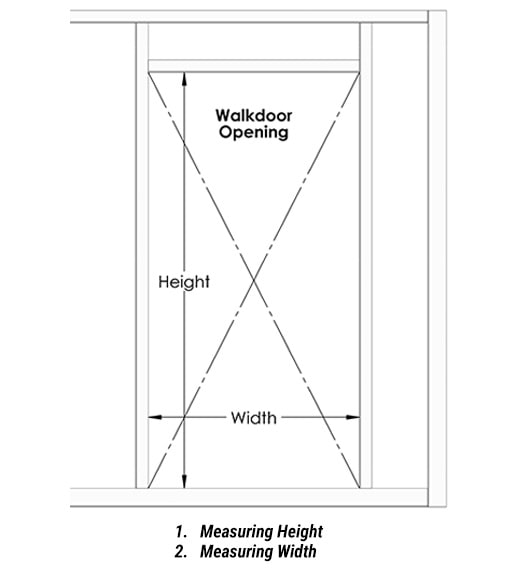

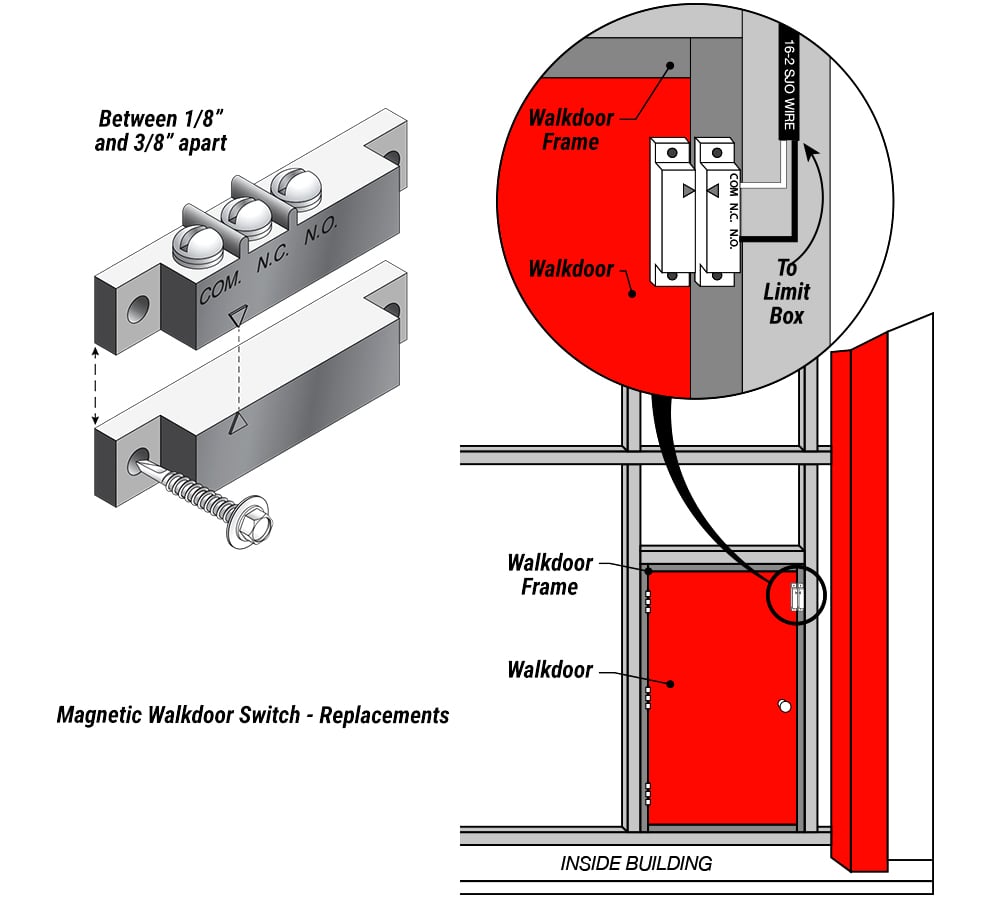

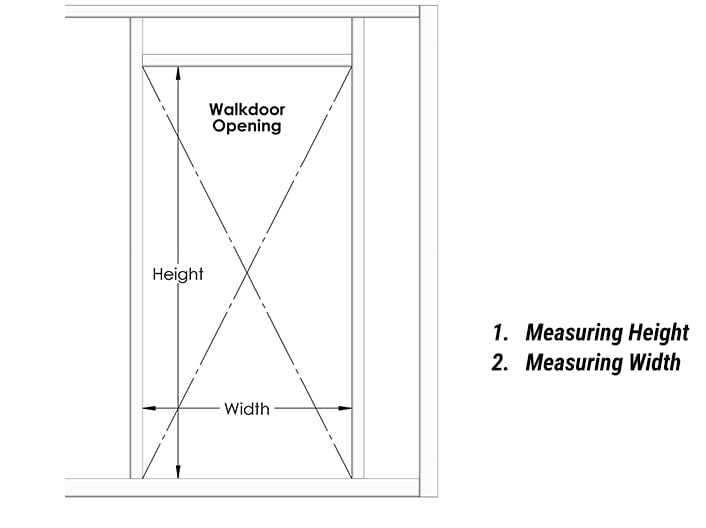

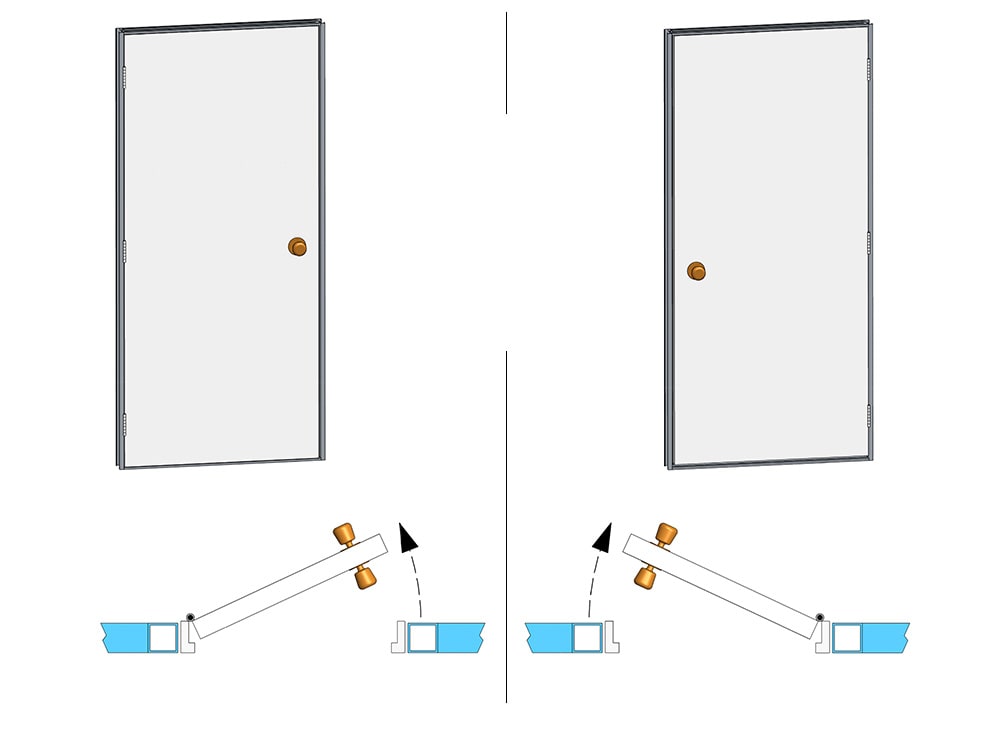

Walkdoors in the Doorframe

23

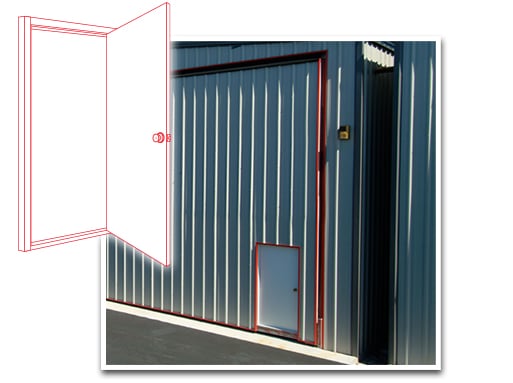

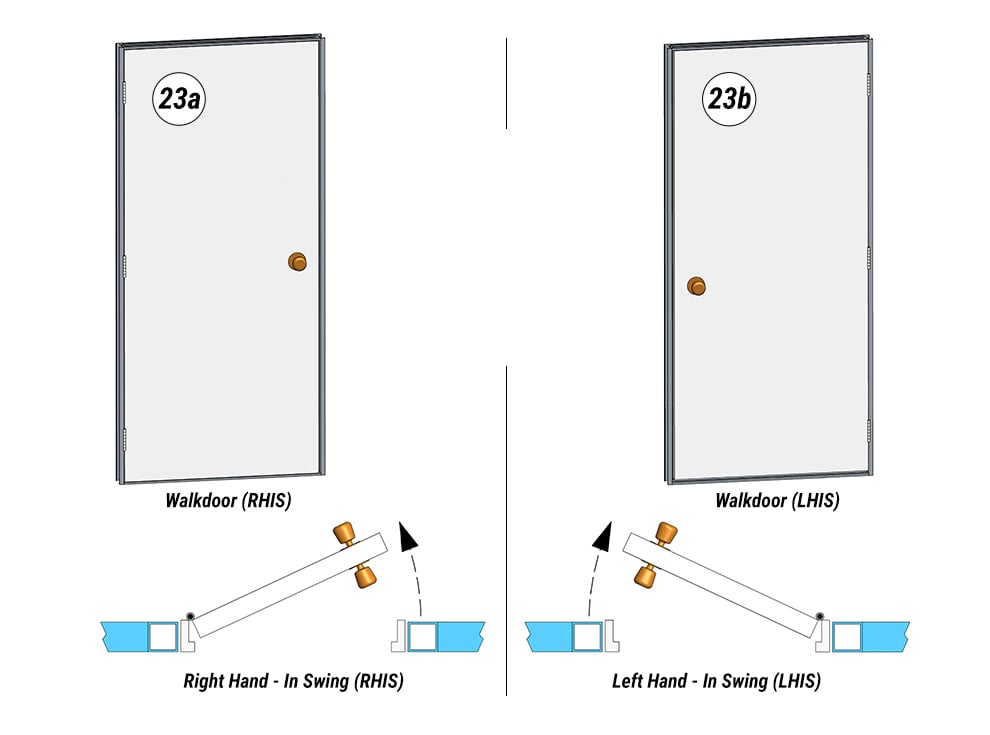

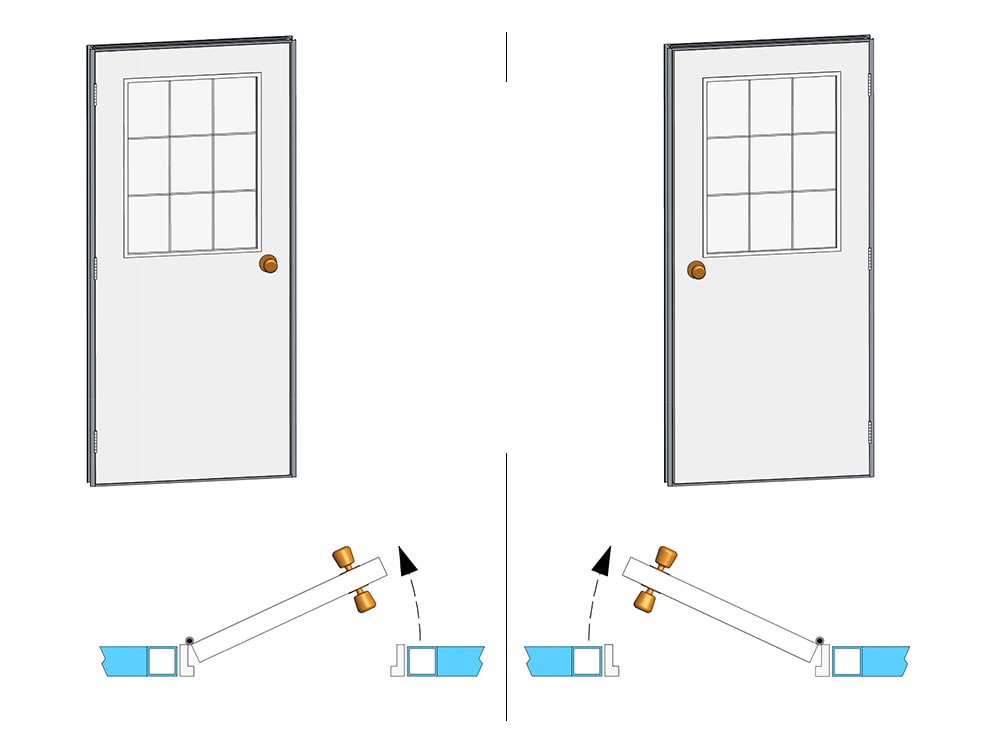

We build the walkdoor framework into the
Bifold or Hydraulic door. We use factory aluminum
or steel walkdoors of your choice. All walkdoors
have a keyed cylinder lock. Also available is
keying multiple doors with a master key.
We offer a 16" x 16" window within the
walk door. Also we can paint the walkdoor
to match the building.

•  Walkdoor - quantity / placement - your choice

•  Walkdoor - insulated / with windows

•  Walkdoor - keyed lockset / master keyed

•  Walkdoor - frames only

•  Walkdoor - safety hinges

The walkdoors feature saves indoor building space and keeps all openings in one area. We build the walkdoor framework into the bifold door. We use factory aluminum or steel walkdoors of your choice. All walkdoors have a keyed cylinder lock. Also available is keying multiple doors with a master key. We offer a 16 x 16 window within the walkdoor. Also we can paint the walkdoor to match the building.

Schweiss Stocks These Sizes:
•  38 9/16" x 60"
•  38 9/16" x 65"
•  38 9/16" x 68"
•  38 9/16" x 71 3/4"
•  38 9/16" x 80 29/32"

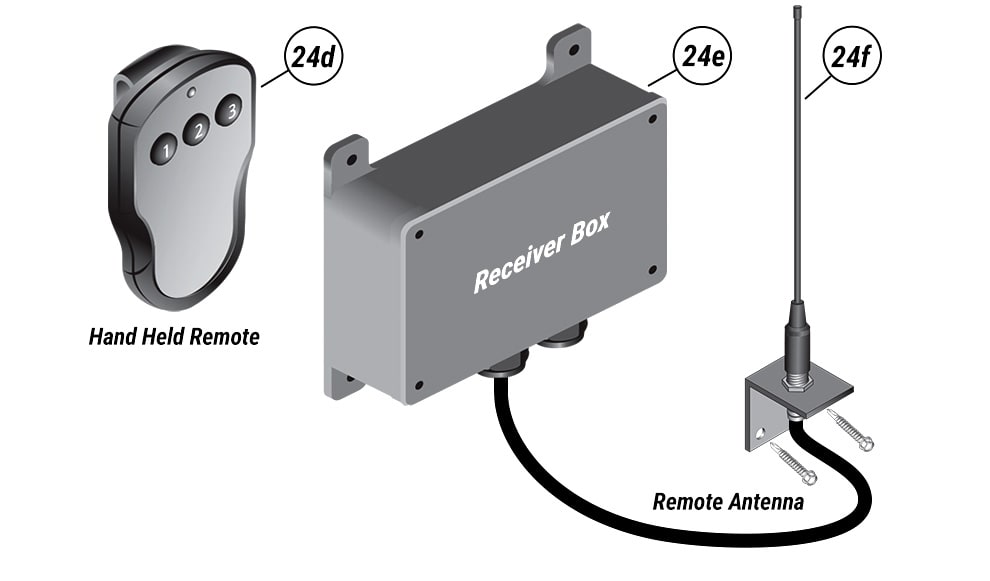

Photo Eyes

25

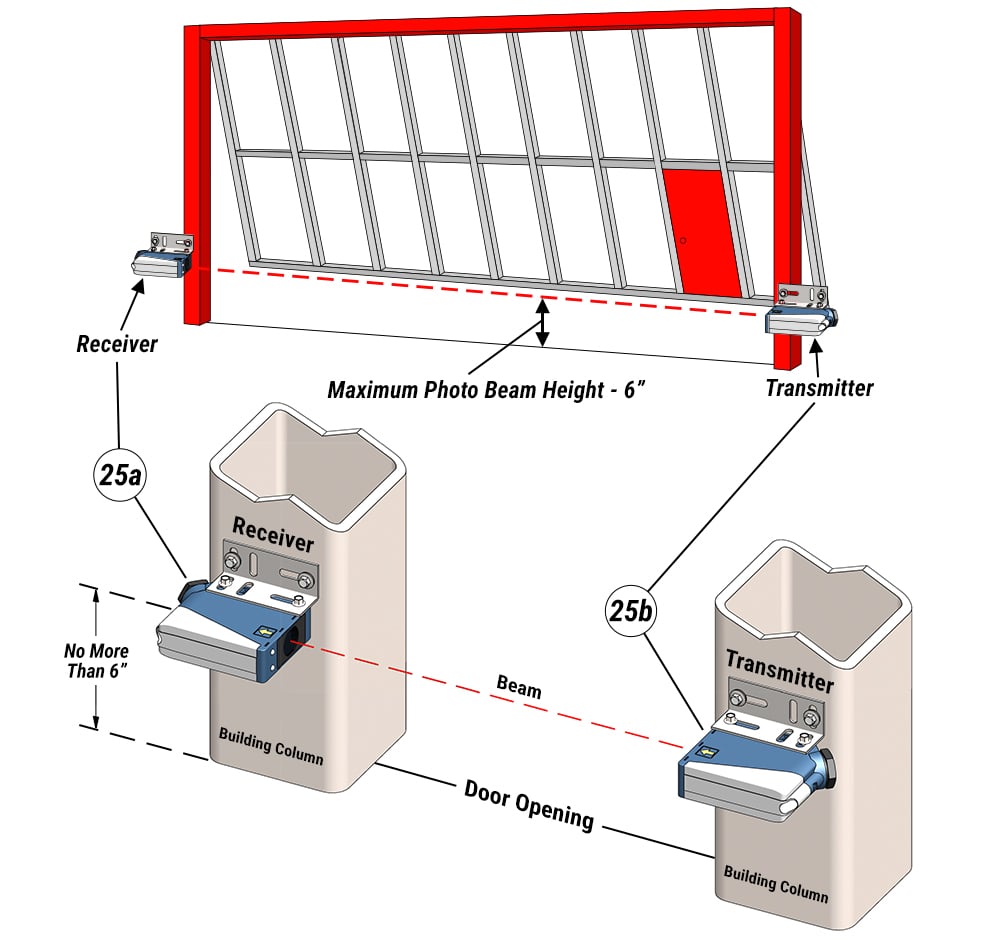

Stops door operation when an obstruction breaks the light beam. Electric photo eye sensors are mounted near floor level used to prevent or stop the door from closing when an obstruction breaks the detection beam. ALL doors installed on residential garages must be equipped with an electric photo eye!

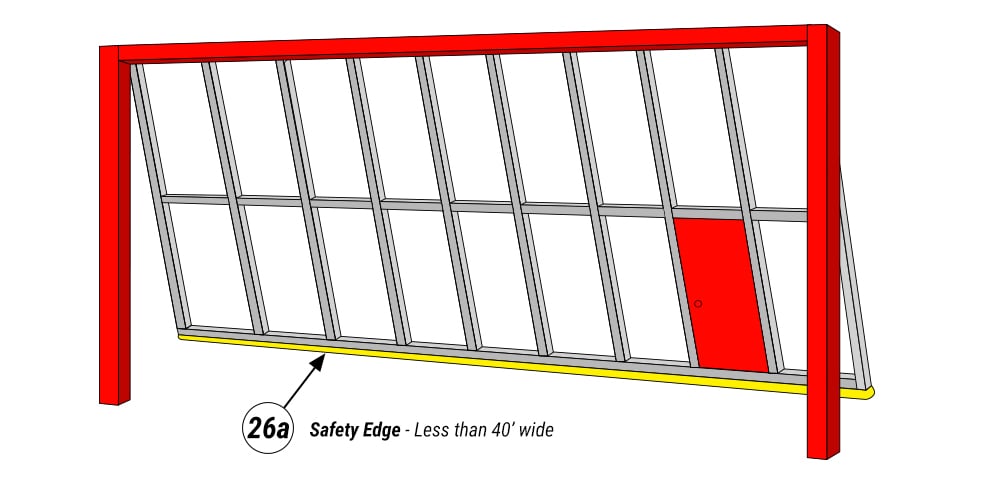

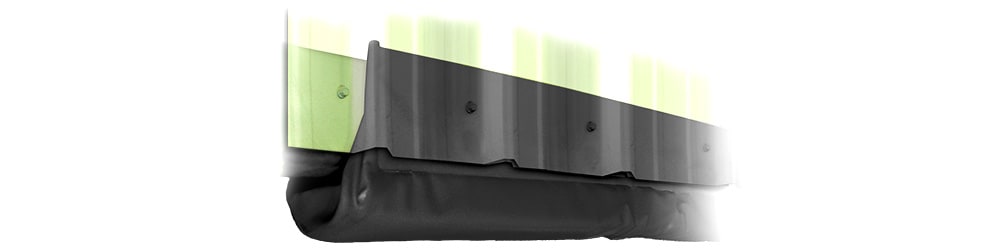

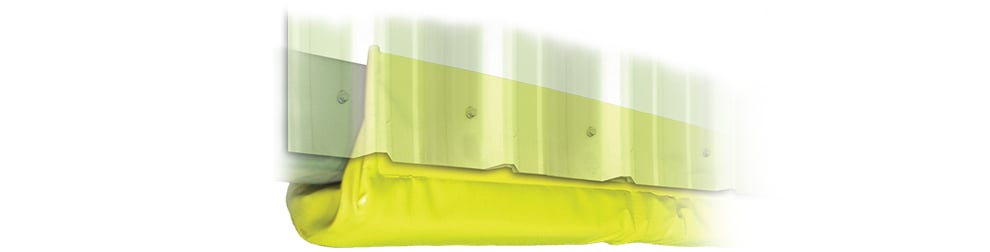

Safety Edge

26

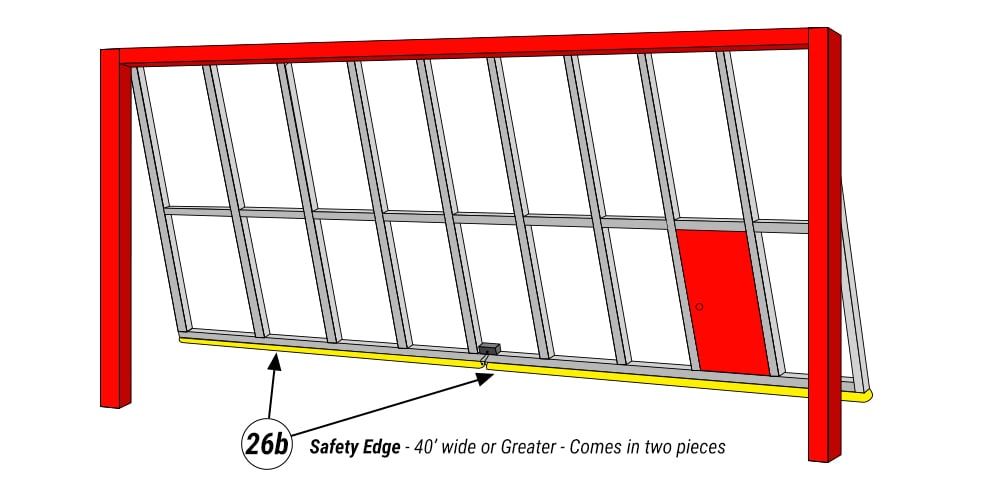

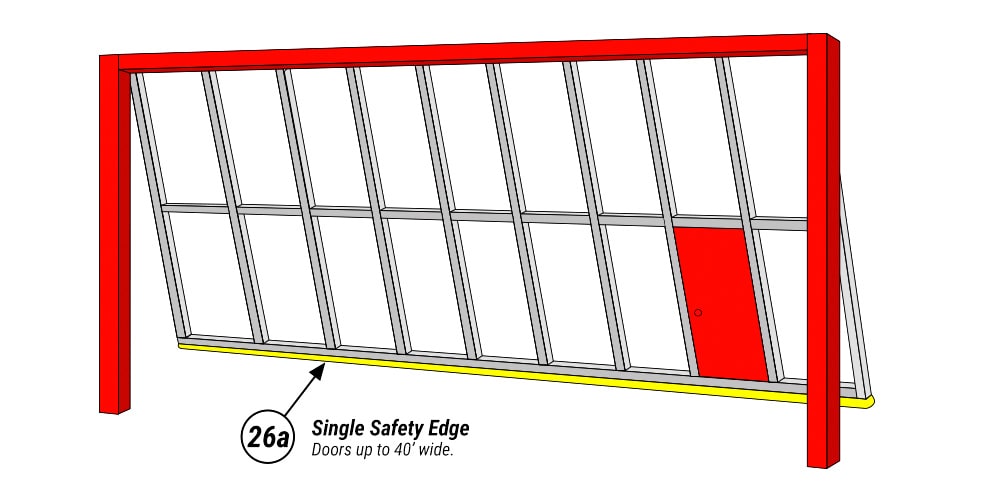

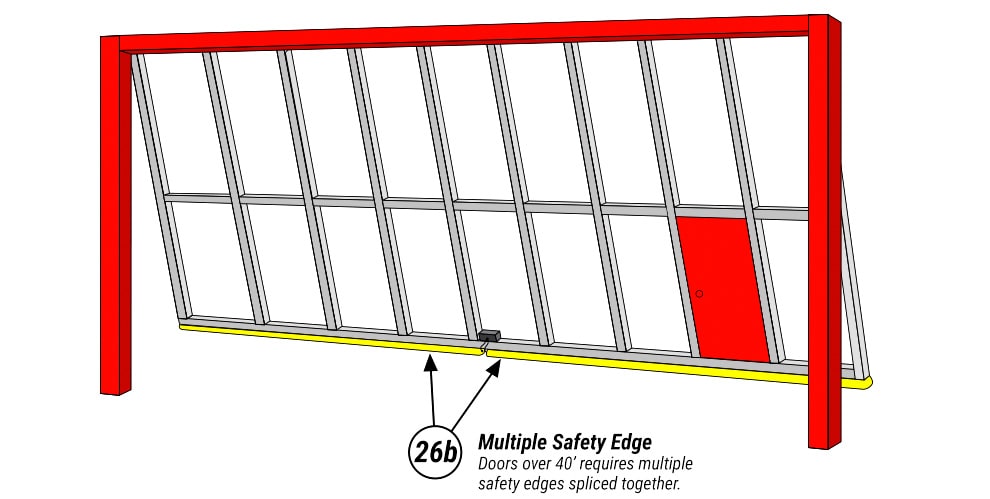

Stops and reverses door travel upon contact. Electrical sensing switch along bottom of door to stop door if it comes in contact with an obstruction; door will then reverse to a fully open position. Safety edge must be capable of protecting the entire width of the door opening.

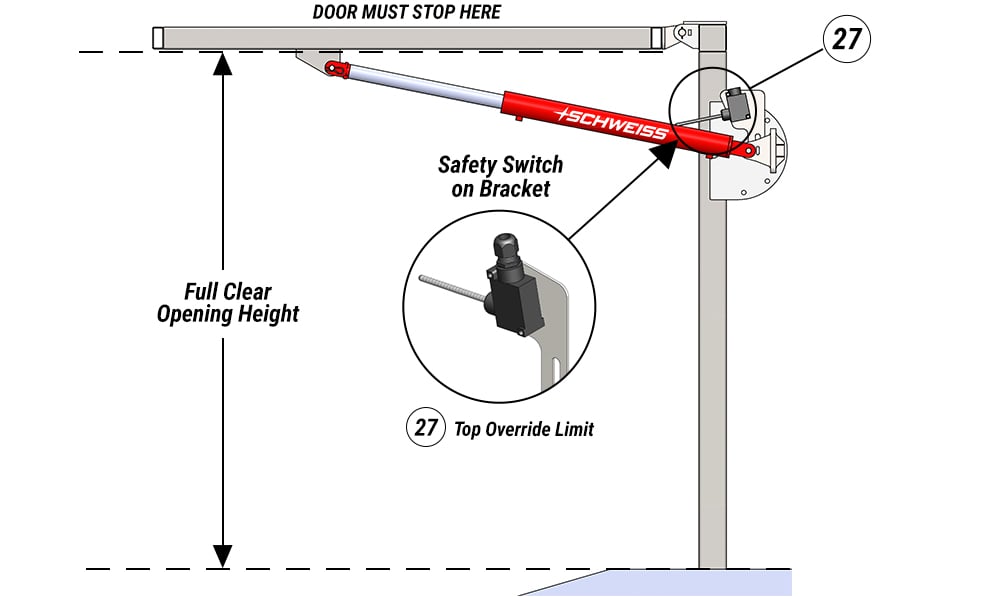

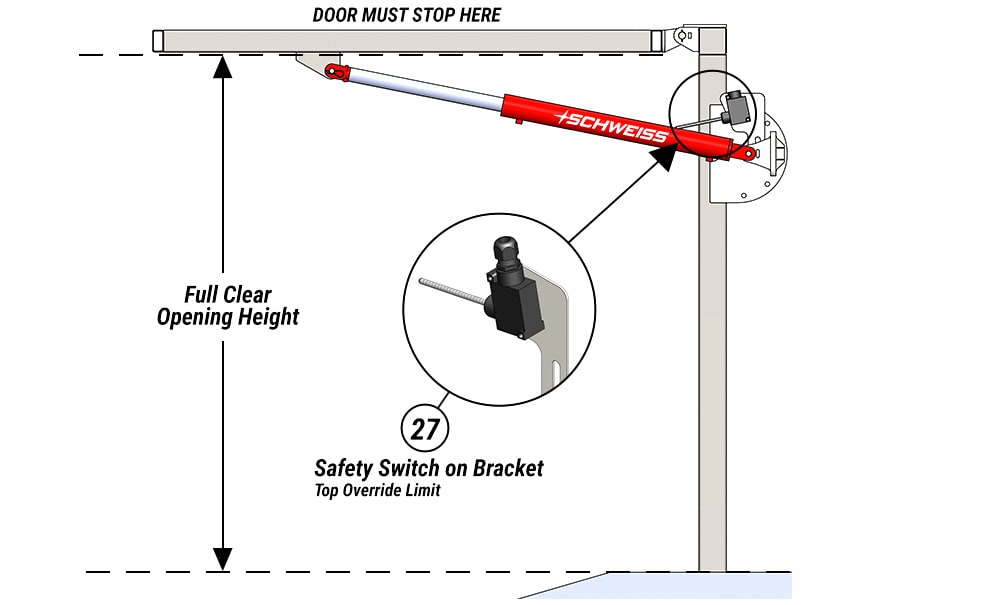

Entrance Lights

28

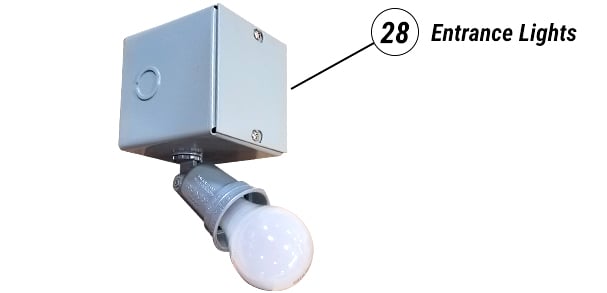

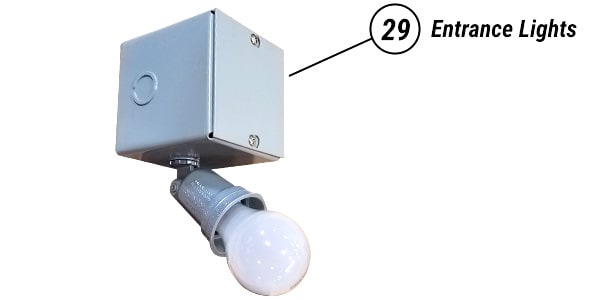

Lights up the doorway when entering the building. Lights up the doorway entrance when activating the door with a remote control system. (Very Nice Feature) Lights can be positioned anywhere...

Example: On the inside of the door frame, the light will provide extra lighting directly under the door when door is in the wide open position. Custom feature that gives you more lighting.

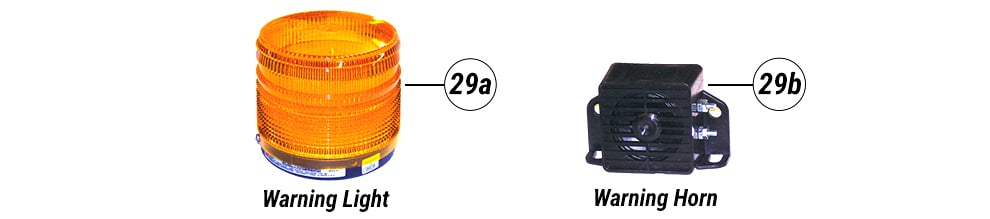

Warning Lights and Horn

29

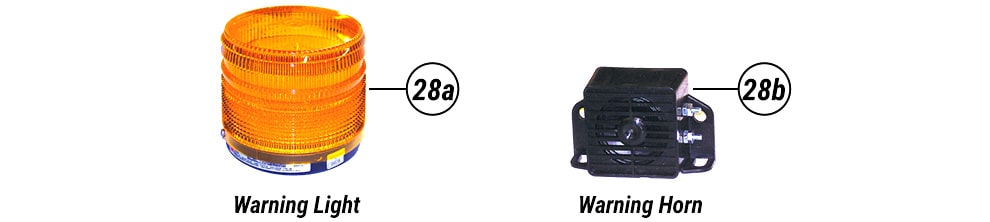

Alerts persons in the area during door operation. This feature is designed to alert persons in the area of the door that the door is operating. When the door operator activates the door, a warning light rotates and a horn sounds. This feature is especially recommended for doors that will be equipped with radio controls or other remote features.

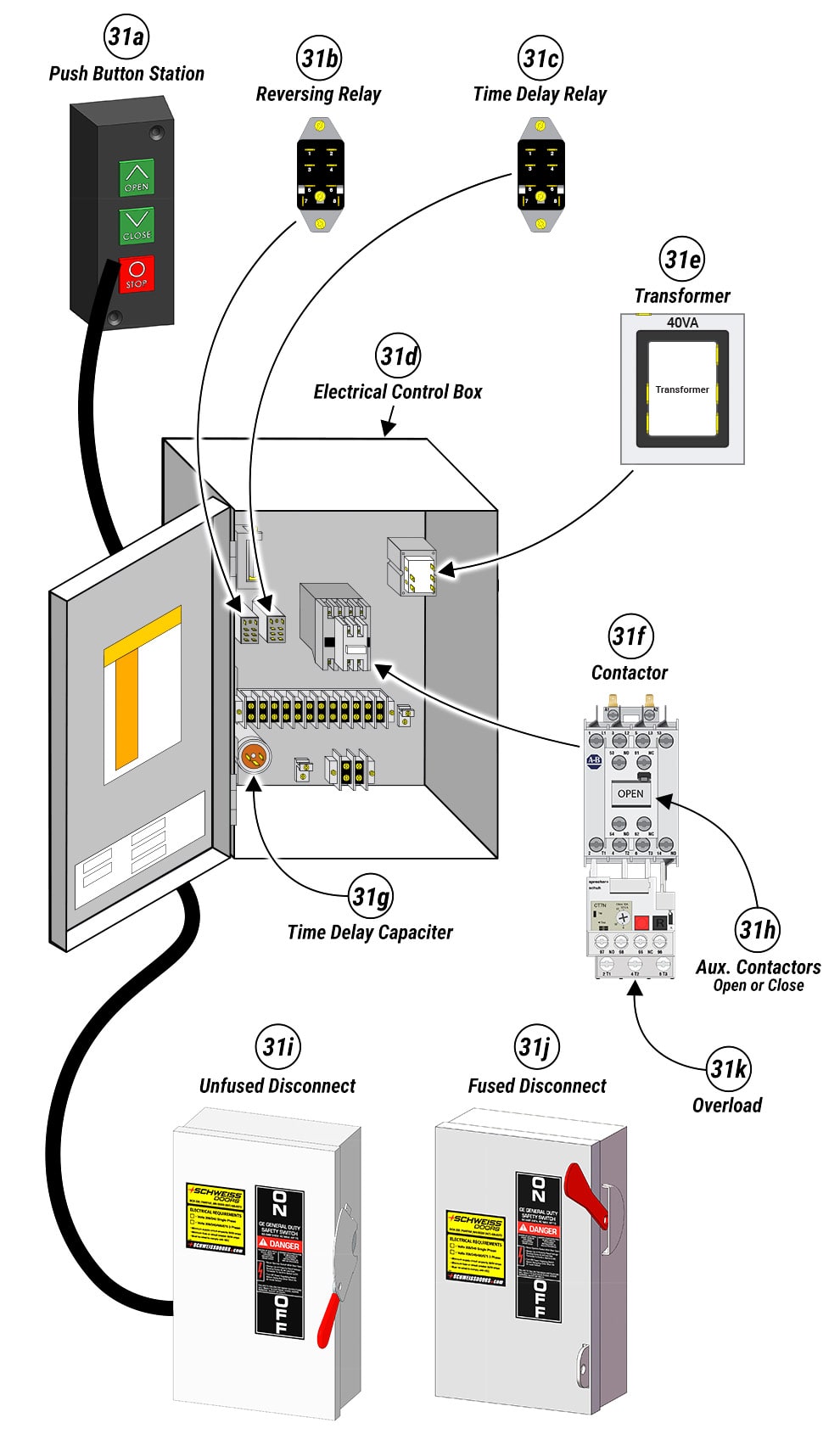

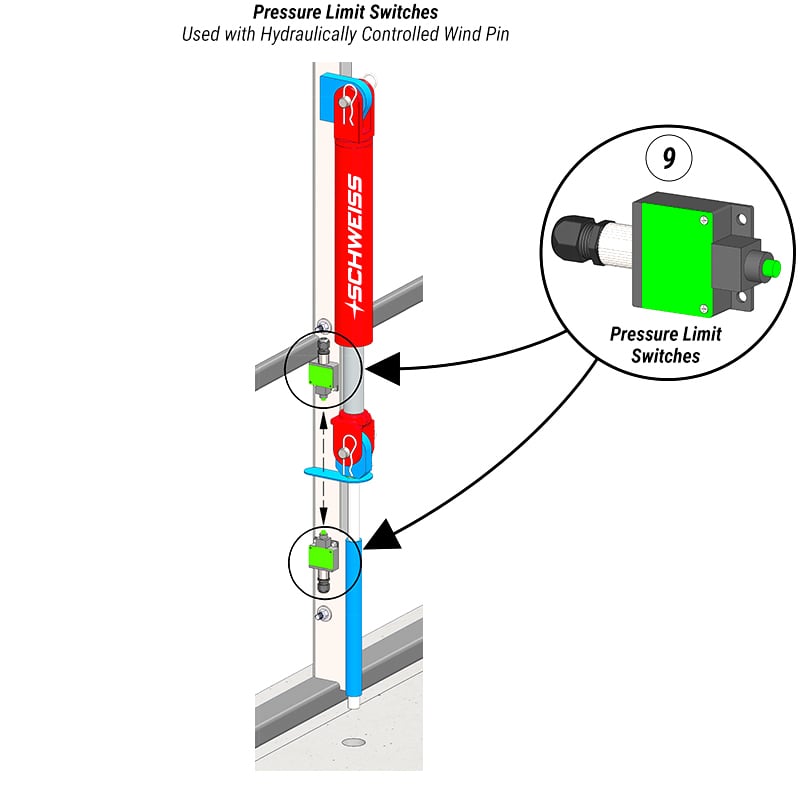

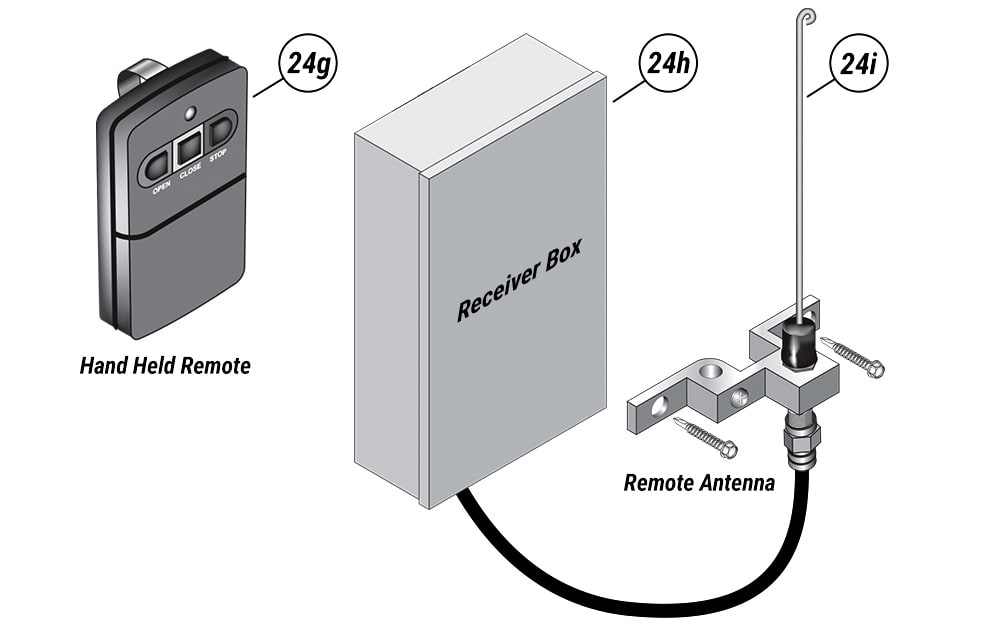

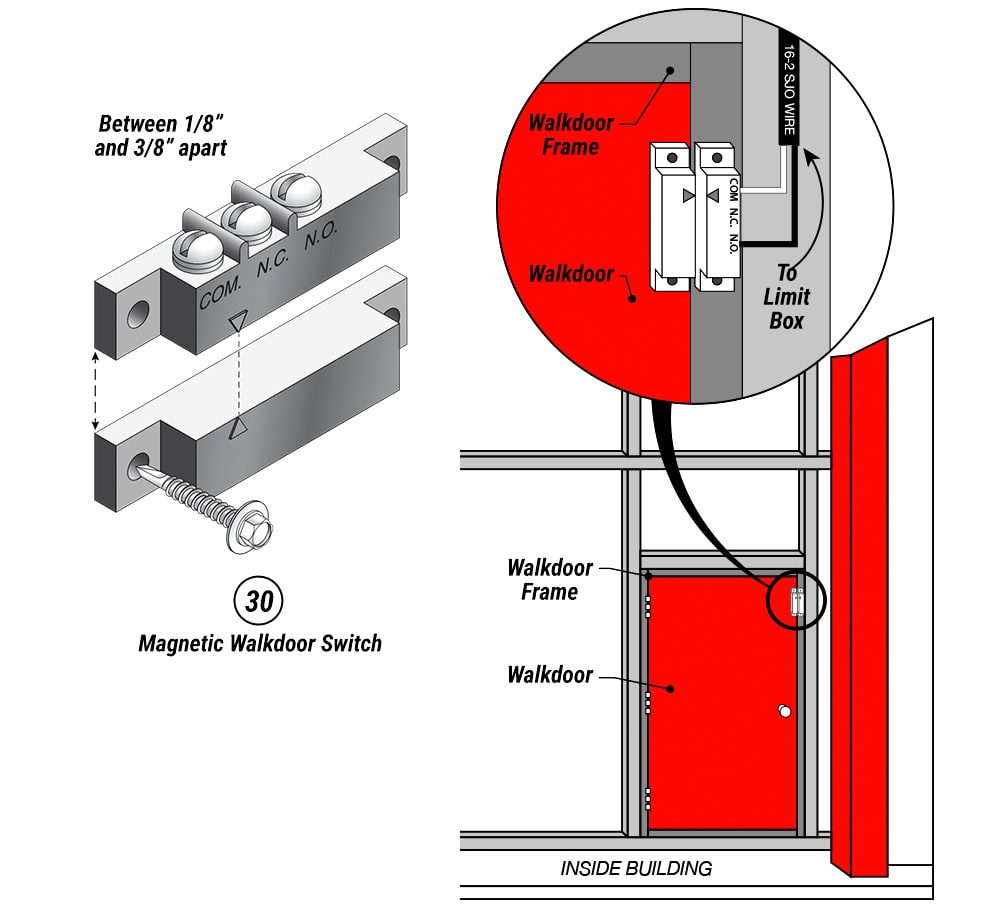

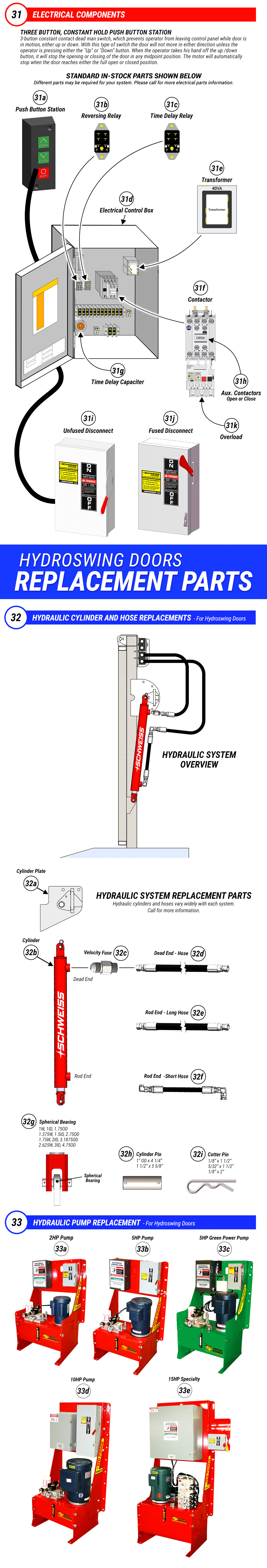

Electrical Components

31

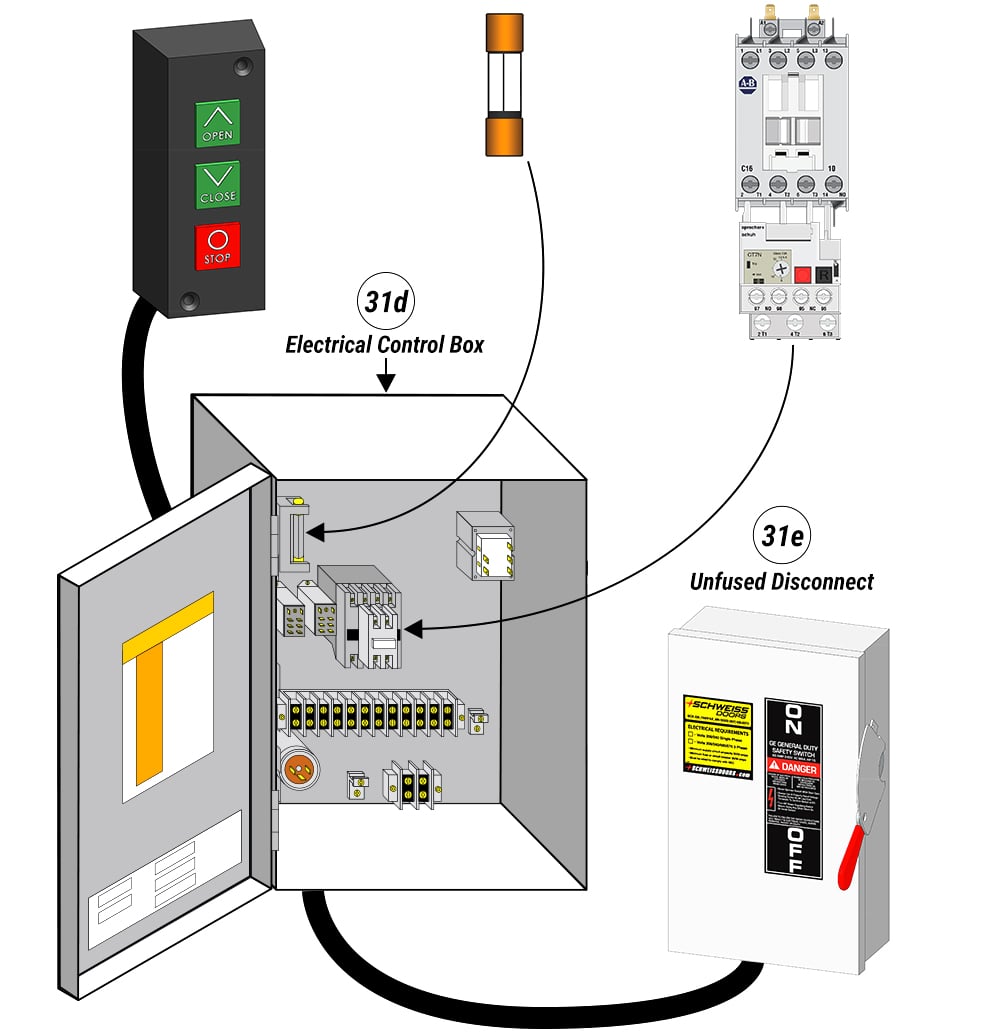

3-button constant contact dead man switch, which prevents operator from leaving control panel while door is in motion, either up or down. With this type of switch the door will not move in either direction unless the operator is pressing either "Up" or "Down" button. When the operator takes his hand off the up /down button, it will stop the opening or closing of the door in any midpoint position. The motor will automatically stop when the door reaches either the full open or closed position.
