Upgrade Equipment for your Automatic Bifold Door
While your Bifold Door opener provides convenience and security, it is important to follow some
basic safety practices. Your Bifold Door is probably the largest piece of moving equipment on
your building and can be potentially dangerous if adequate protection is not used. We offer
additional entrapment protection for your Automatic Bifold Door. You have a choice of upgrade
equipment.
Door Safety Tips
Diagram for any potentially hazardous locations related to operation of door.
Your door has a ______inch Wedge.
(Dimension D from A-1 Spec. Sheet)
Do not operate or overtravel
your door beyond its rated
Clear Height Opening
Note: This measurement
will be the same as the
clear opening height on
the original door contract
_______ft______in
This is the Clear Opening
Height for your Bifold Door.
(Dimension B from
A-1 Spec. Sheet)
Outside Of
Building
Inside Of
Building
Finished Floor
Distance for your Bifold Door.
ft.
in.
FLOOR LINE
3' Minimum
THREE FOOT MINIMUM
INSIDE GRAY AREA
3' Minimum
THREE FOOT MINIMUM
INSIDE GRAY AREA
6' or More depending
on door size
(This area varies depending
on your door height)
CANOPY GRAY AREA
(Varies with door size)
"STAY CLEAR AREA"

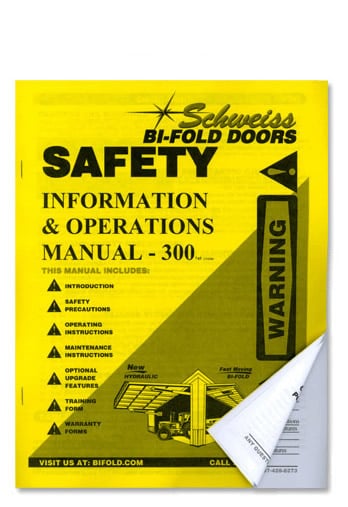

SAFETY INFORMATION
AND OPERATIONS MANUAL

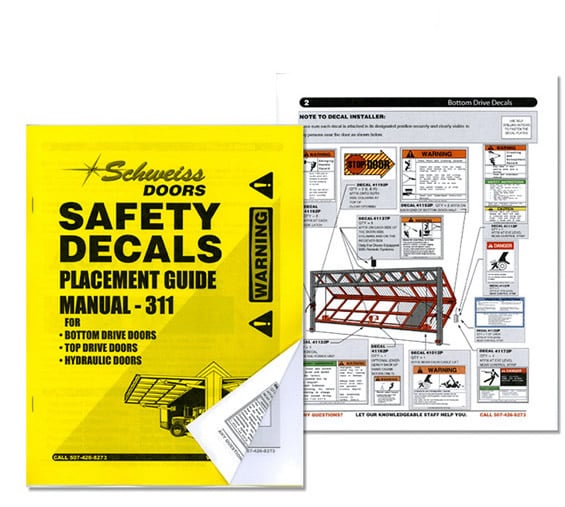

DECAL PLACEMENT GUIDE
