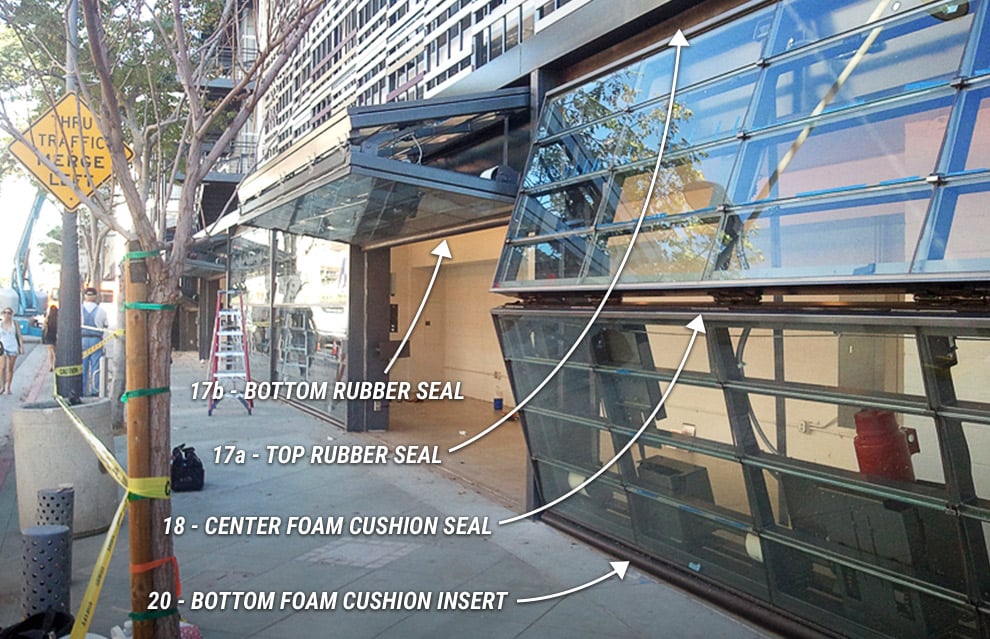

Top Rubber Seals

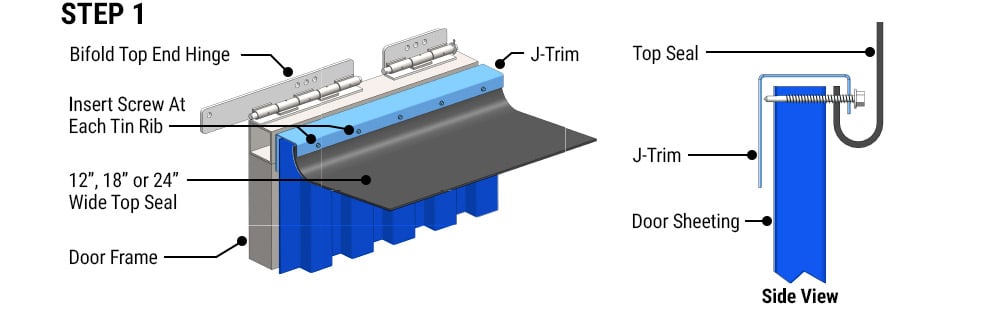

STEP 1
STEP 2
Single Hinge
Top Seal
Insert Screw At
Each Tin Rib
J-trim
12" Wide Top
Seal (optional)
Door Frame
"J" Trim
Door Sheeting
Side View
- Use Flat Flashing To Secure The Top Rubber To The Outside Edge Of The J-trim
- Roll The Rubber Seal Up Under The Building Sheeting And Fasten It
- Allow The Fit To Be Loose To Allow The Necessary Working Room For The Door

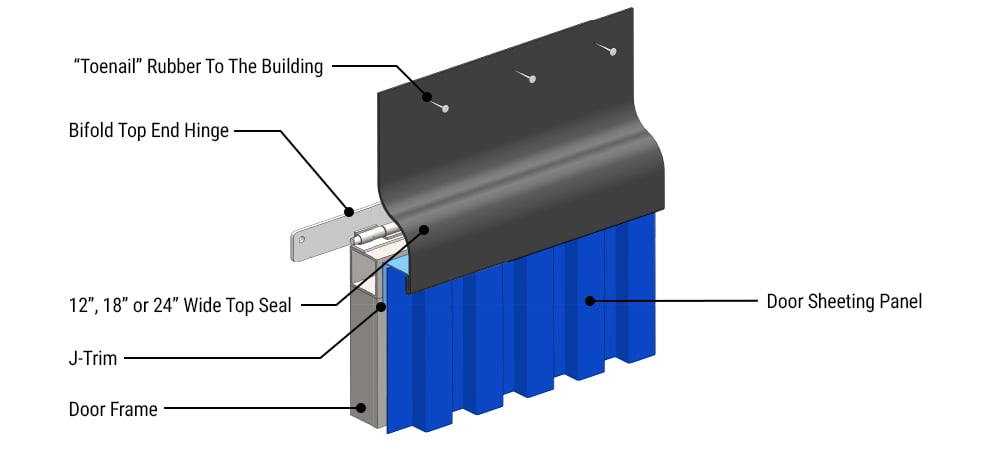

"Toe Nail" Rubber To The Building
Single Hinge
12" Wide Top Seal (optional)
Door Frame
J-Trim
Door Sheeting Panel
STEP 3
Building Sheeting
12" Wide Top Seal (optional)
Single Hinge
Door Frame
Required Operating
Clearance
J-Trim
Door Sheeting

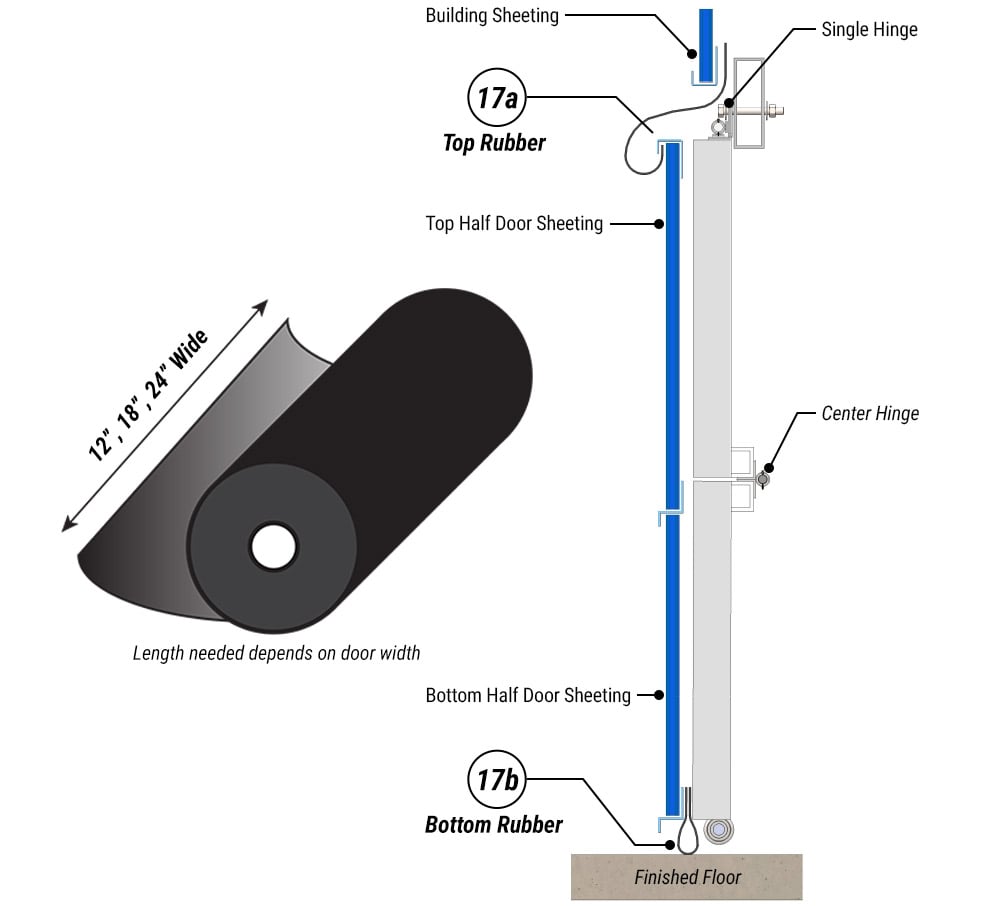

Building Sheeting
Top Rubber
Top Half Door Sheeting
Single Hinge
Internal Door Truss
Center Hinge
Side View
Bottom Half Door Sheeting
Bottom Rubber
Finished Floor
Bottom Rubber Seals
Bottom Rubber Seals: We furnish 12" or 17" rubber boot that seals the bottom of your Bi-Fold Door. The heavy
2-ply, cloth-inserted rubber seal provides excellent weather proofing.
Note: That existing bituminous surface / concrete varies and seals shall be placed accordingly

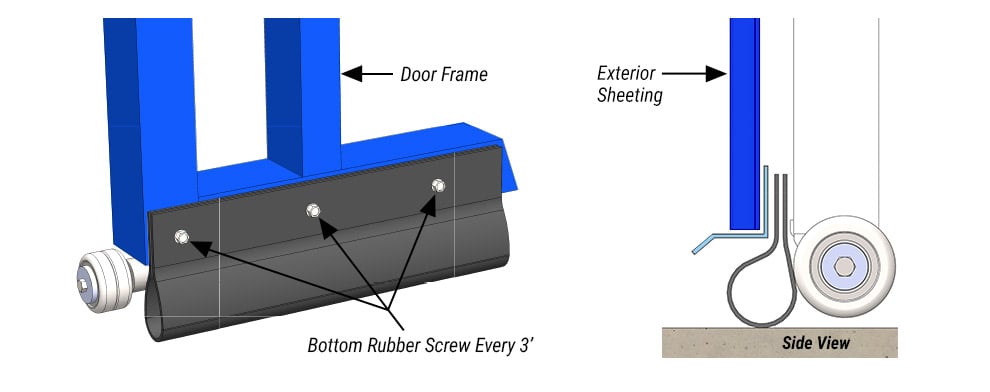

Proper Bottom Seal Placement
Distance Will Vary Depending On How High The Door Was Installed Above The Floor
Door Frame
Door Roller
Outside Of Building
Bottom Rubber Screw Every 3 Feet

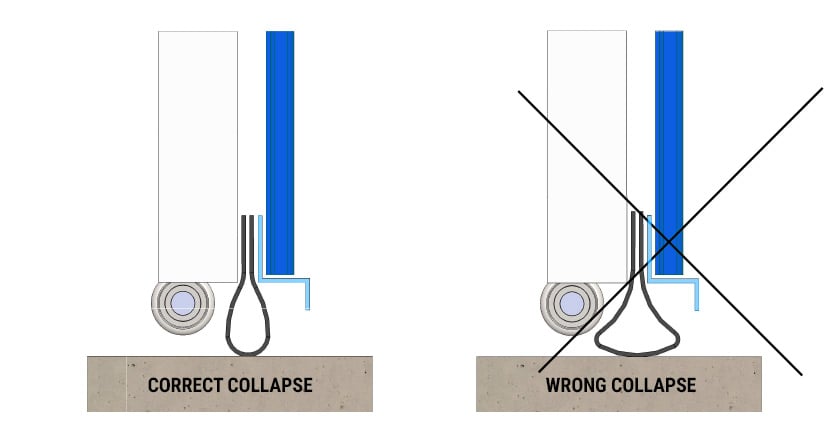

Proper Seal Collapse
-It Is Important To Have Correct Collapse
-Attention Cold Climates: Too Much Collapse Could Cause The Seal To Freeze To The Ground and Crack
CORRECT COLLAPSE
WRONG COLLAPSE

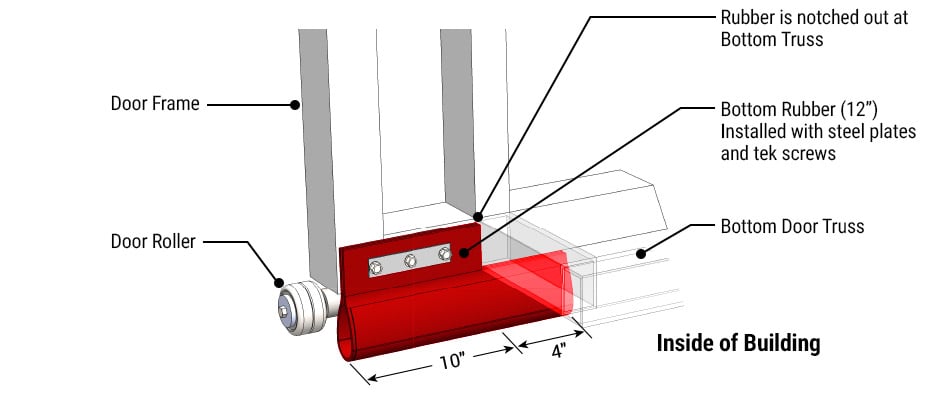

For Extra Seal Protection (Optional)
Door Frame
Door Roller
Rubber Is Notched Out At
Bottom Truss
Bottom Door Truss
Inside of Building
Bottom Rubber (12")
Installed With Steel Plates And Tek Screws

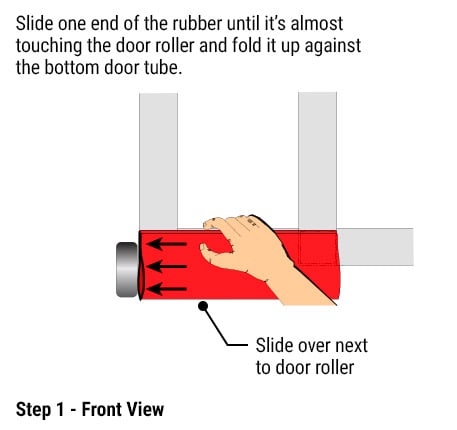

Slide one end of the rubber until it's almost
touching the door roller and fold it up against
the bottom door tube

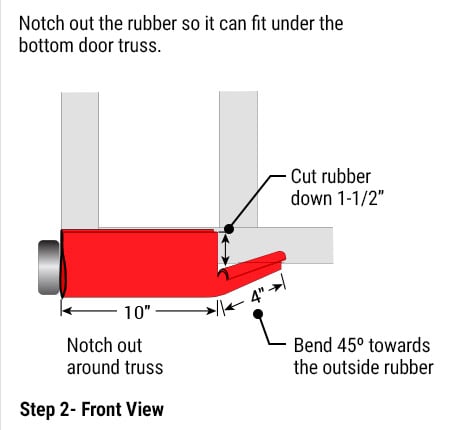

Notch out the rubber so it can fit under the
bottom door truss
Cut Rubber
Down 1-1/2"
Slide Over Next
To Door Roller
Notch Out
Around Truss
Bend 45° Towards
The Outside Rubber
Step 1 Front View
Step 2 Front View

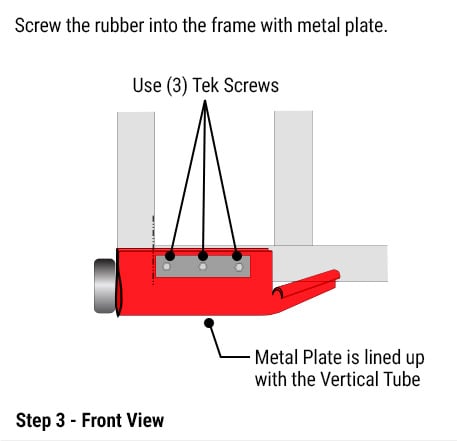

Screw the rubber into the frame with metal plate.

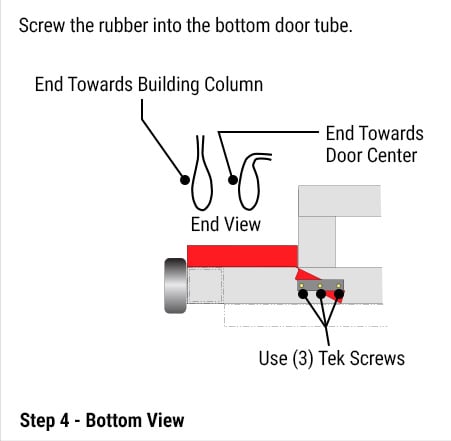

Screw the rubber into the bottom door tube.
Use (3) Tek Screws
End Towards Building Column
End Towards
Door Center
End View
Metal Plate Is Lined Up With
Vertical Tube
Use (3) Tek Screws
Step 3 Front View
Step 4 Bottom View
Schweiss Doors is introducing a Unique weather seal kit that can be
retrofitted to all styles of doors, being Hydraulic doors or Bifold doors.
The new bottom seal has a special foam cushion that provides an extra
weather tight seal on the bottom of any style door. The special designed
foam cushion kit allows the door bottom rubber to conform to dips and
bumps in the surface giving you a uniform seal to ensure a weather tight
seal at the bottom of each door.

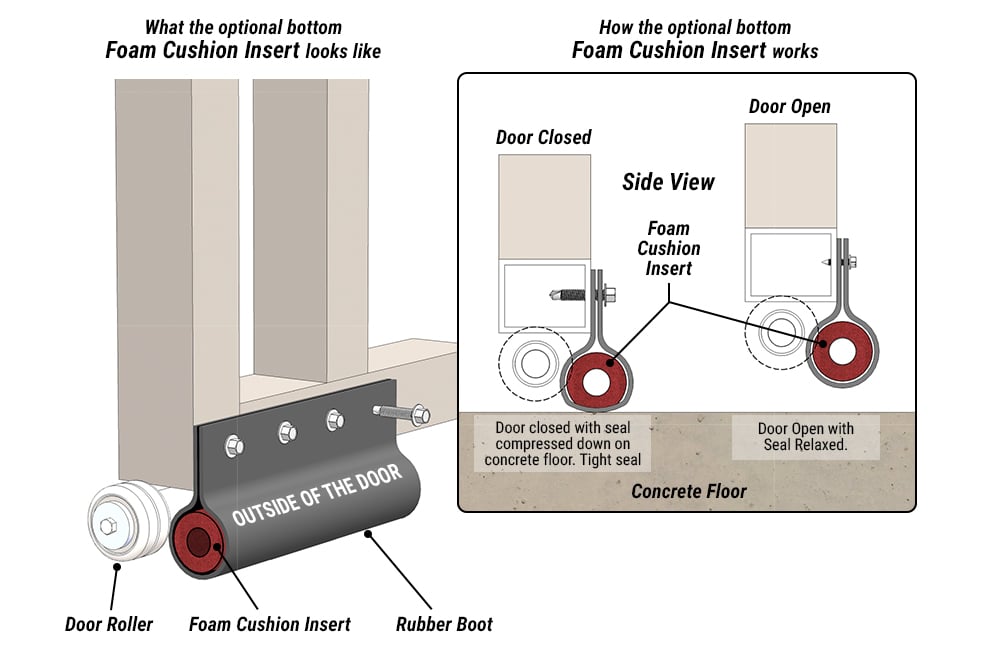

What the optional ...Standard Bottom
Foam Cushion Kit looks like...
Rubber Boot
Foam Cushion Kit
Door Roller
OUTSIDE OF DOOR
Optional ...Standard Bottom Foam Cushion Kit Installed on a Bi-Fold Door.
How the optional ...Standard Bottom Foam Cushion Kit works...
DOOR OPEN
DOOR CLOSED
Foam Cushion
Kit
CONCRETE FLOOR
What the optional ...Corner Foam Cushion Kit looks like...
How the optional ...Corner Foam Cushion Kit works...
DOOR OPEN
DOOR CLOSED
Foam Cushion
Kit
What the optional...Foam Cushion Seal looks like with a
Wrap Around Seal...
Rubber Boot
Foam Cushion Seal
Door Roller
Optional...Foam Cushion Seal with Wrap Around Seal on a Bifold Door.
How the optional...Foam Cushion Seal works with a Wrap
Around Seal...
DOOR OPEN
DOOR CLOSED
Foam Cushion Seal

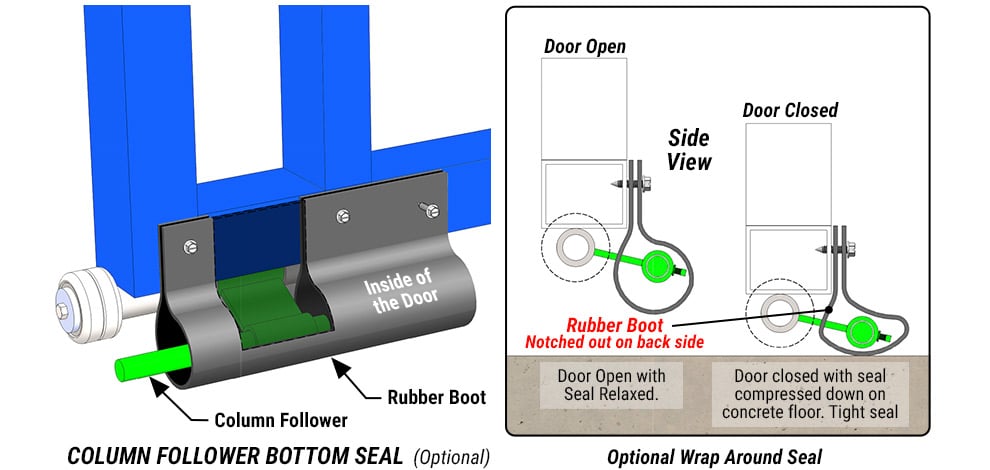

What the Additional Column Follower
Bottom Seal Kit looks like...
Rubber Boot
Column Follower
INSIDE OF DOOR
Additional Bottom Seal Kit installed on a Bi-Fold Door with Column Followers.
How the Additional Column Follower Bottom Seal Kit works...
DOOR OPEN
DOOR CLOSED
Rubber Boot
CONCRETE FLOOR

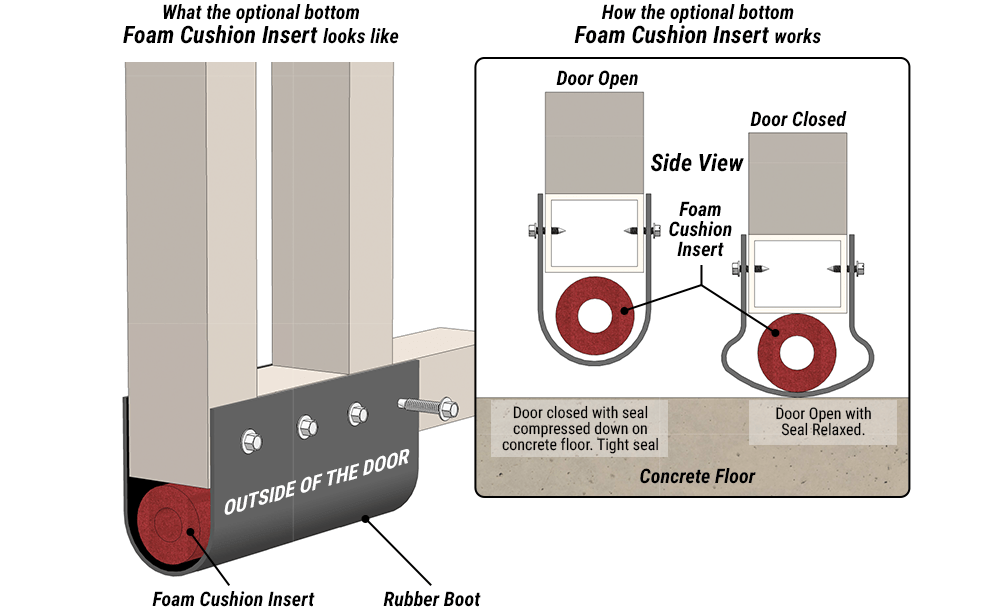

What the optional... Foam Cushion Seal
looks like...
Rubber Boot
Foam Cushion Seal

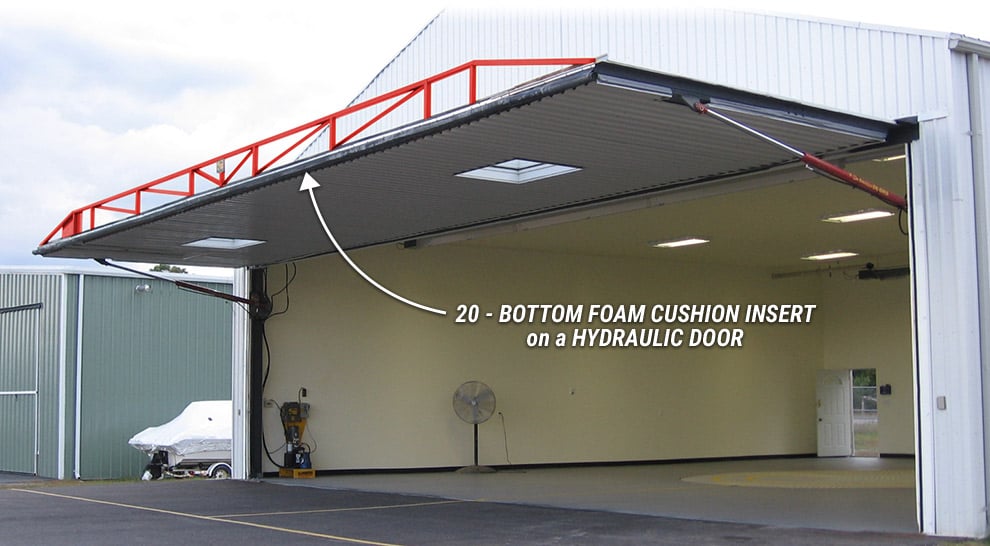

Optional Foam Cushion Seal installed on a Hydraulic Door.
How the optional... Foam Cushion Seal works...
DOOR OPEN
DOOR CLOSED
Foam Cushion
Seal
CONCRETE FLOOR
