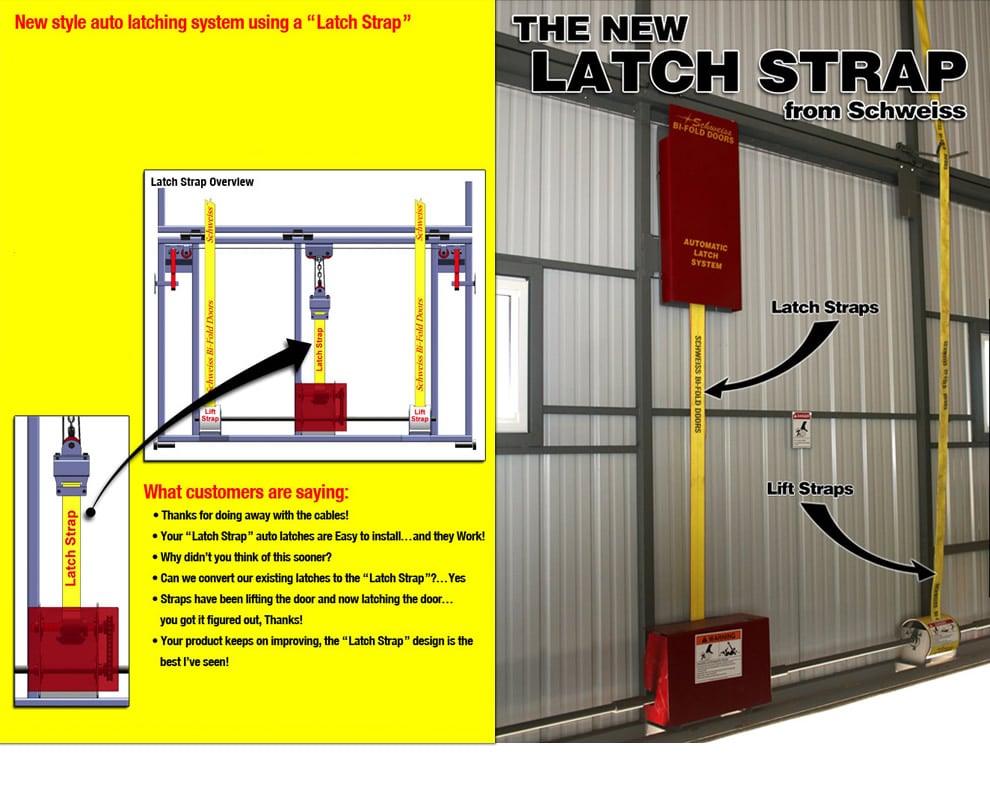

THE CLEVER 'LATCH STRAP' DESIGN

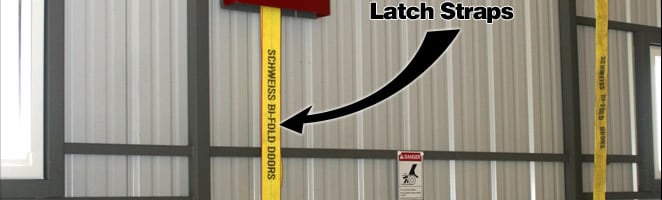

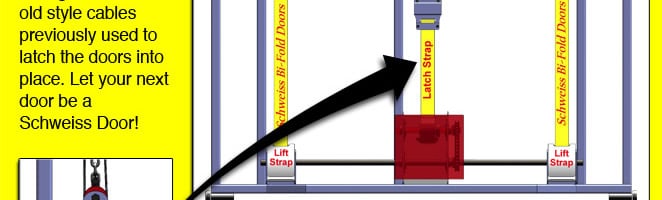

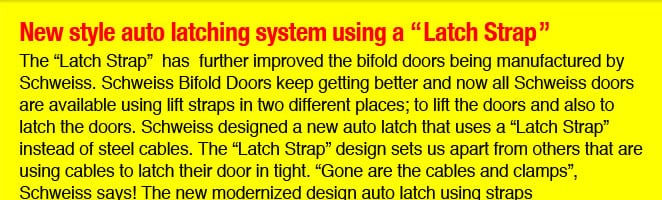

Called the 'Latch Strap', a newly designed automatic latching system designed by Schweiss engineers replaces steel cables still being used by some door companies.

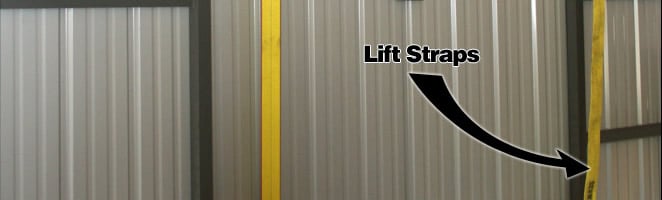

The clever 'Latch Strap' design makes the patented Schweiss Lift Strap system doubly functional to both lift Schweiss bifold doors and also automatically tightly latch the doors.

Continue to look for Schweiss for engineering innovations that continue to separate Schweiss Doors from the rest of the industry!

AUTOMATIC LATCHES

Customers Love our "Automatic Latches"

"Push of a Button does it all for you!"

Options

Side Latches

Manual

Single Lever

Automatic

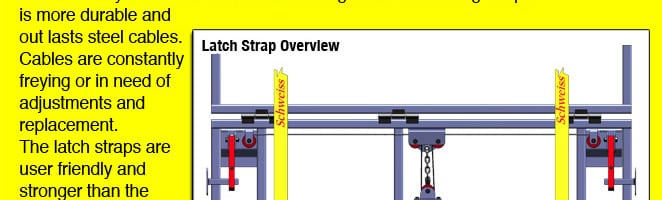

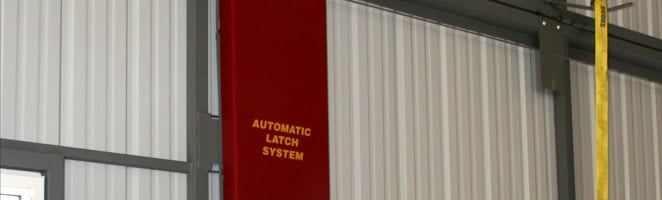

AUTOMATIC LATCH SYSTEM

Top Pulley Assembly

Center Pulley Assembly & Shield

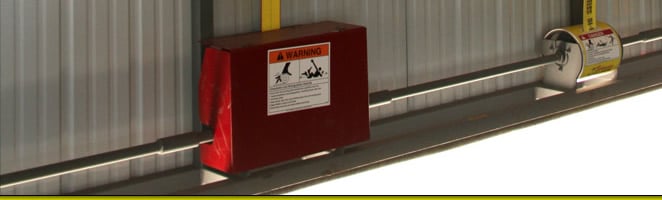

Latch Drum Shield

Auto Latch Arm

Auto Latch Arm

Lift Drum

Lift Drum

Latch Drum

Inside view of Bi-Fold Door

AUTOMATIC LATCH SYSTEM IN MOTION

Latch Arm Fully Locked

REMOTE CONTROLS

Very Nice Feature!

The Easy Way!

Lets you open/ stop/ close your Bi-Fold Door from any vehicle. Automatically
unlatches the door so it can be opened or closed with the hand held remote.
Two hand held remote controls and antennas are included with each door.

In October 1996 I installed a 50ft Schweiss Bi-Fold Door to my 80ft by 80ft hangar for my newspaper offices, AgAir Update and Universal Helicopter. About a year later, I added the remote open / close feature. To this day I have never had an open / close failure and never had any problems of any kind. When I was building my hangar I compared the price of sliding doors with the Bi-Fold. It was only a few dollars more, of which I have never regretted spent. It is a real luxury to press my remote door especially if it is raining. I can't imagine a better built hangar door. - Bill Lavender (Publish of AgAir Updated and Universal Helicopter)

Important Note:
When using radio controls you must have the auto latching system. If not, provide
lock safety switch to eliminate possible damage if door is opened in locked position.

Warning
All doors equipped with remote operators should have a warning system to alert
persons in the immediate area that the door is moving

...Long Range

...For Construction

...For Agriculture

... Easy Access

SIMPLE

REMOTE CONTROL DOORS AVAILABLE (OPTIONAL)

These let you open/stop/close your Bi-Fold Door From any vehicle. Automatically
unlatches the door so it can be opened or closed with the hand held remote. Two
hand held remote controls and remote external antennas are included with each door.

Automatic controlled doors require special attention to safety. Important Note: When
using radio controls you must have auto latching system, if not provide lock safety
switch to eliminate possible damage if the door is opened while in the locked
position. Warning System alerts remote operators. All doors equipped with remote
operators should have a warning system to alert persons in the immediate area that
the door is about to open or close.

Antenna

Grounding Block

Coax Cable

Remote Receiver Box

Limit Box

Power Unit

Remote Control

Remote Receiver

(Interior of Door)

Door Frame

Door Exterior

(Detail of Remote and Receiver)

HAND-HELD
REMOTE CONTROL

Important Note:
When using radio controls you must have the auto latching system. If not, provide
lock safety switch to eliminate possible damage if door is opened in locked position.

Warning
All doors equipped with remote operators should have a warning system to alert
persons in the immediate area that the door is moving
